6 1 PSI5 Description
Vertiv™ | Liebert® PSI5 120 V Input / 120 V Output & 208 V lnput / 208 V Output Installer/User Guide

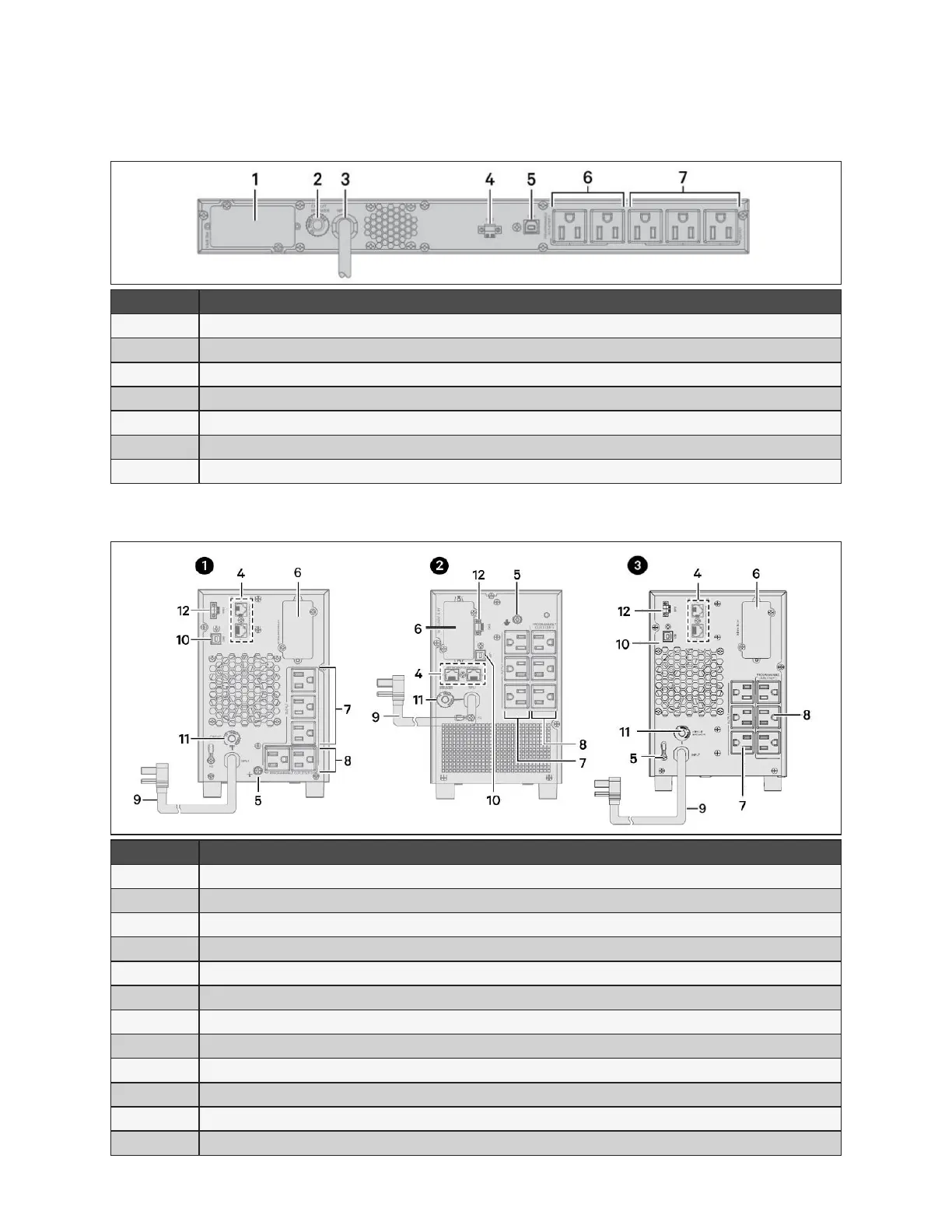

Figure 1-5 Liebert® PSl5-1000/1500RM1201U Rear Panel
ITEM DESCRIPTION
1 IntelliSlot Port
2 Input Circuit Breaker (13A, 16A for 1000RM and 1500RM models respectively)
3 AC Input
4 Emergency Power O (EPO) Connector
5 USB Port
6 Programmable Receptacles
7 Non-Programmable Receptacles
Figure 1-6 Liebert® PSI5 Mini Tower Rear Panels
ITEM DESCRIPTION
1 PSI5-750/1100MT120
2 PSI5-1500MT120
3 PSI5-1500MT120LI
4 Network/Fax/Modem Surge Protection Input/Output
5 Grounding Screw for Network/Fax/Modem Surge Protection Input/Ouptut (Torque = 7 lbf-in)
6 IntelliSlot Port
7 Non-Programmable Receptacles
8 Programmable Receptacles
9 AC Input
10 USB Port
11 AC Input Breaker (10A, 13A, 16A for 750MT, 1100MT, 1500MT models respectively)
12 Emergency Power O (EPO) Connector
