Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual
7

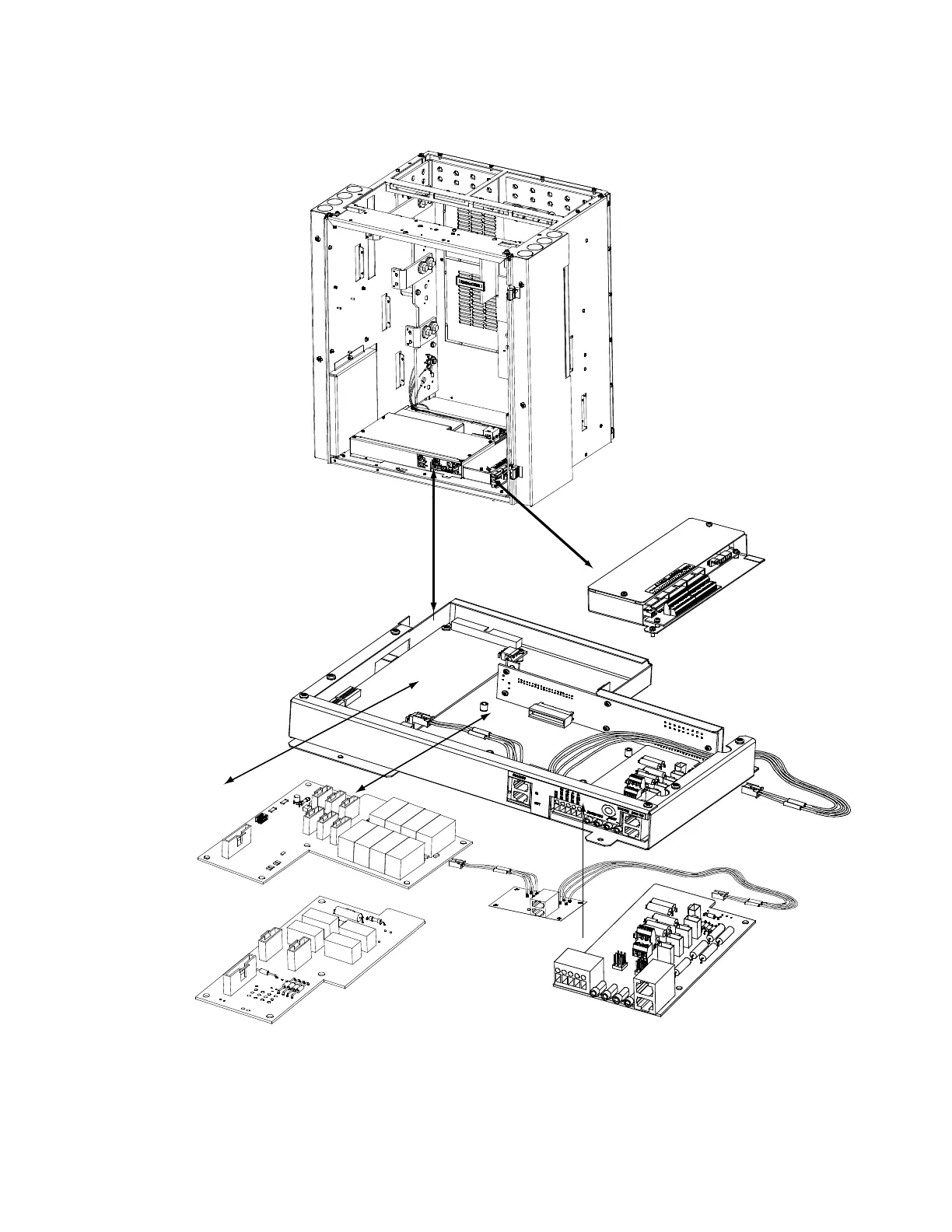

Figure 3.1 Circuit Card Locations (Supplementary Bay)
4-Row Cabinet Shown,
Others Similar
(Illustration for Clarity)
CAN Interface
Card
OR
Optional LVD
Driver Circuit Card
Optional LVD Driver
Lite Circuit Card
System Interface
Circuit Card
SM-DU
