Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual

System Interface Circuit Card

The system interface circuit card contains test points to externally monitor bay voltage and bay load. Refer to Figure 3.2.

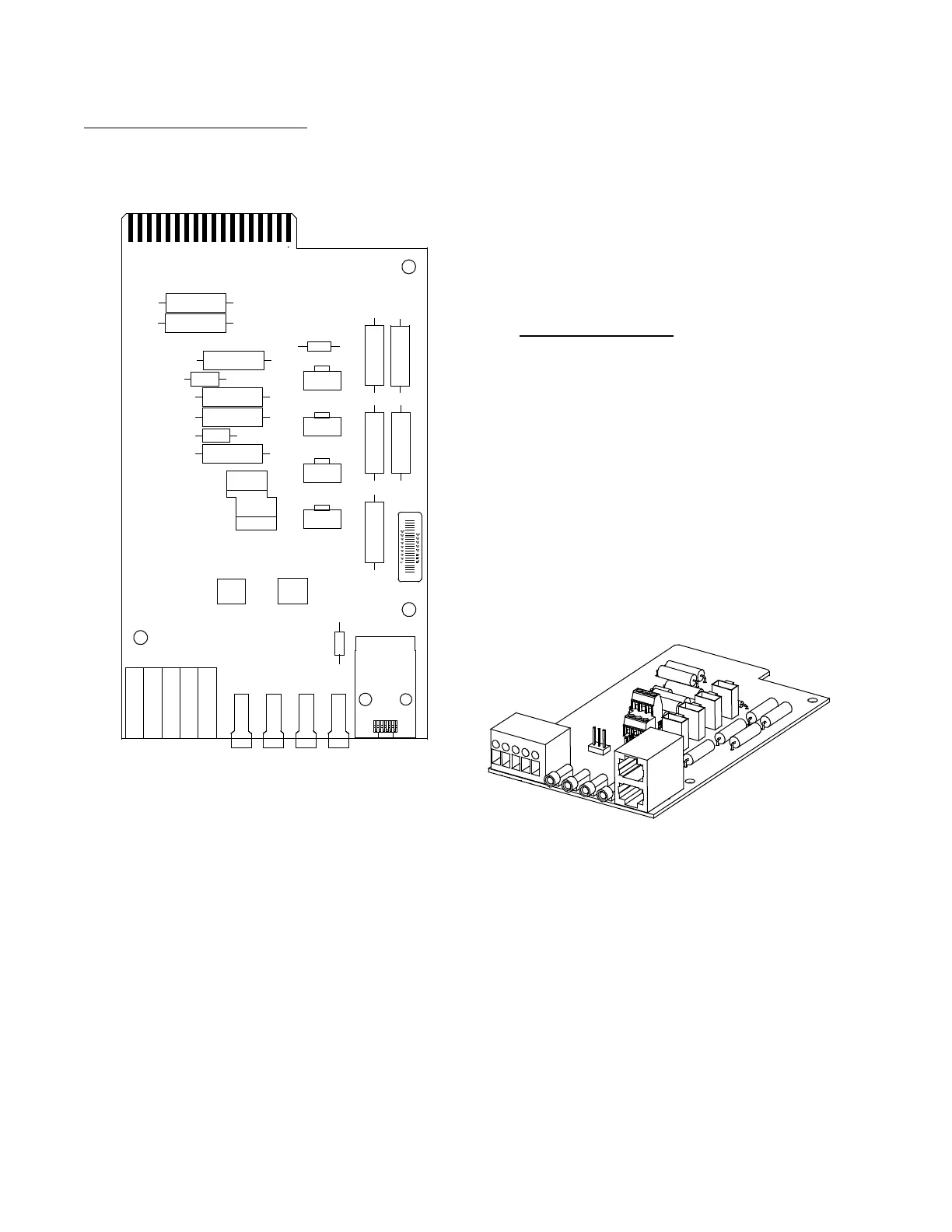

Figure 3.2 System Interface Circuit Card

TP3 (+) and

TP4 (-)

Bay Load

Shunt Monitoring

TP1 (+) and TP2 (-)

Bay Voltage

Monitoring

TB2

TB1

TP1 TP2 TP3

TP4

J10

Bay Load Shunt Scale

List 21, 1-Row Cabinet

800A

/ 25mV

32A per mV

List 22, 2-Row Cabinet

2000A / 25mV

A per mV

List 23, 3-Row Cabinet

2500A

/ 25mV

100A per mV

List 24, 4-Row Cabinet

2500A

/ 25mV

100A per mV
