Vertiv™ NetSure™ 7100 Series -48 VDC Power System User Manual

10. Refer to the Power System Installation Instructions (IM582127000) and install rectifier and converter modules into the

expansion module mounting assembly as required.

11. For List 33, two sets of converter polarity caution labels are provided loose. Based on the converter output voltage, apply the

correct label to right three converter slots of the expansion shelf: +24V label 60028788 for use with +24VDC converters;

-58V label 60028735 for use with -58VDC converters. A sample of this labeling is provided in Figure 4.6.

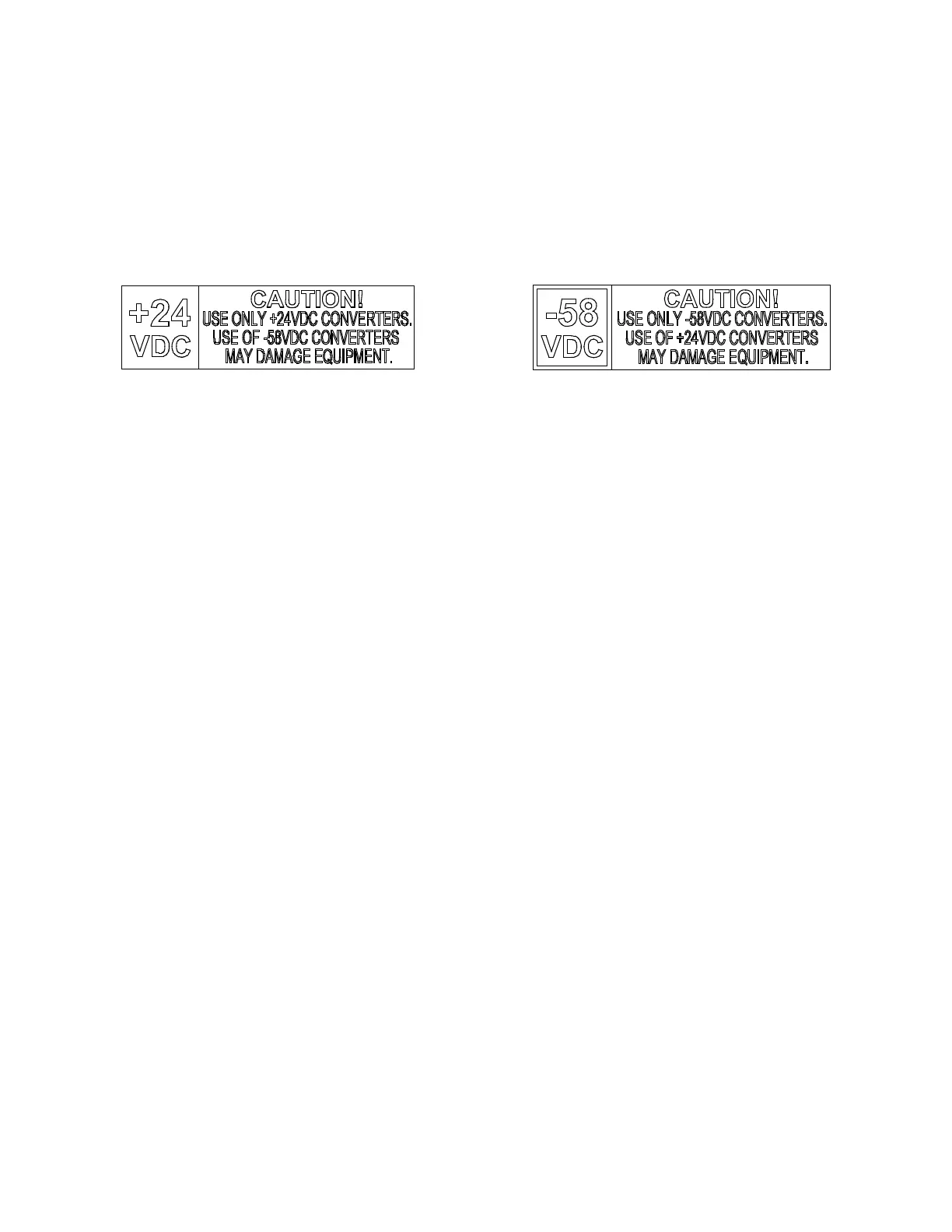

Figure 4.6 Caution Labels

60028788 (+24V Label)

60028735 (-58V Label)
