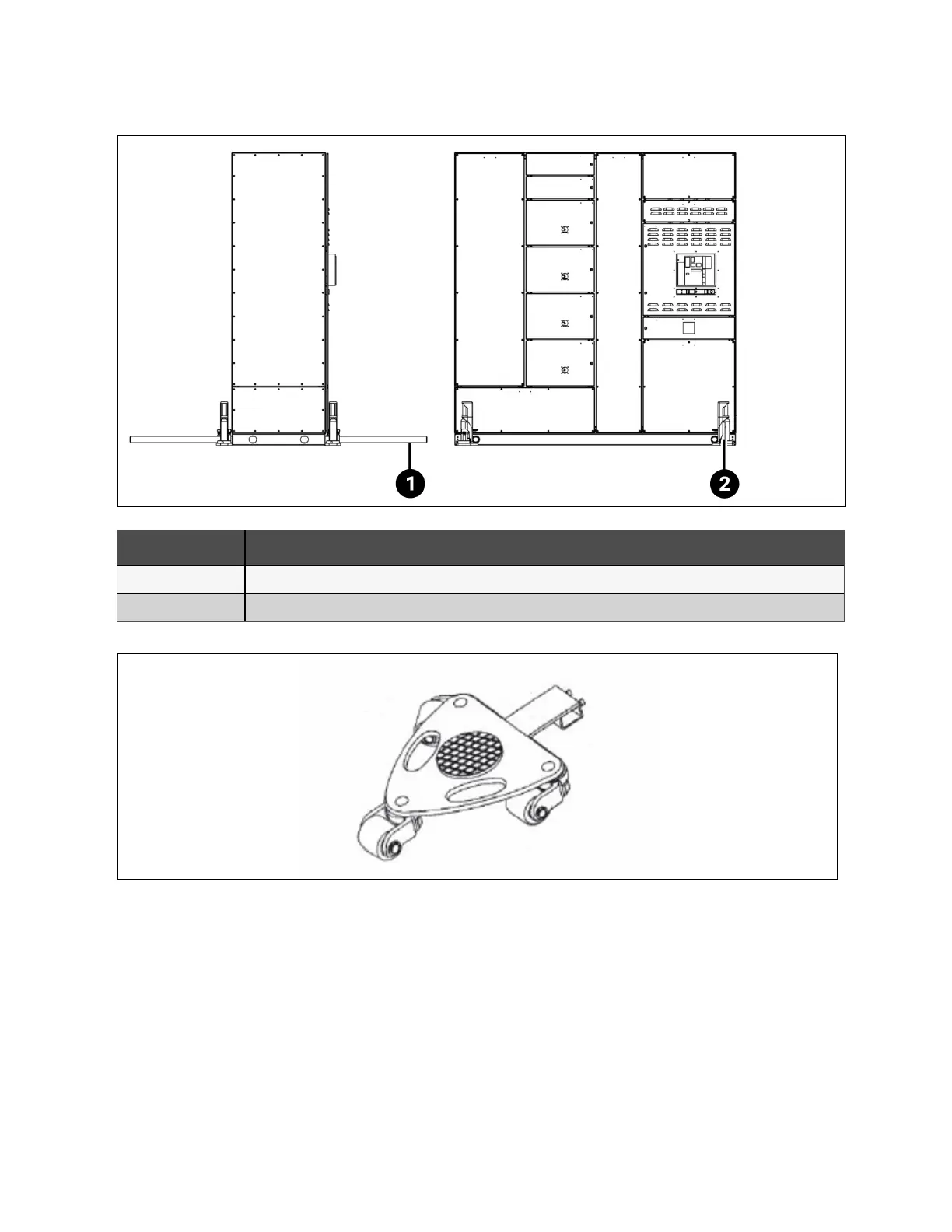

Figure 3.3 Lifting with Bars and Jacks
Item Description
1 Lifting bar
2 Lifting jack
Figure 3.4 Typical Skate
Method 2a
1. Insert the bars into the holes, using lifting straps around the bars with a spreader.
2. Lift the spreader using forklift and raise the panel approximately 5 in. to slide the pallet.
3. Lower the panel to the minimum moving height.
4. Move the panel to the designated location by the forklift or crane.
5. Lower the panel onto the ground and detach the spreader and lifting straps, as well as the bars.
