2.7 Installation Space Requirements
The cooling unit is a specifically engineered air conditioning unit. It is recommended to install the unit
inside the cabinet at the lowest section, as shown in the installation section 3.3.
• To facilitate ease of installation and maintenance, sufficient space needs to be provisioned as per
Figure 2-6 below.
• The distance from the front door to the wall or other obstacles must be greater than 1050 mm, which
to ensure the pull-out of the unit entirely for maintenance.

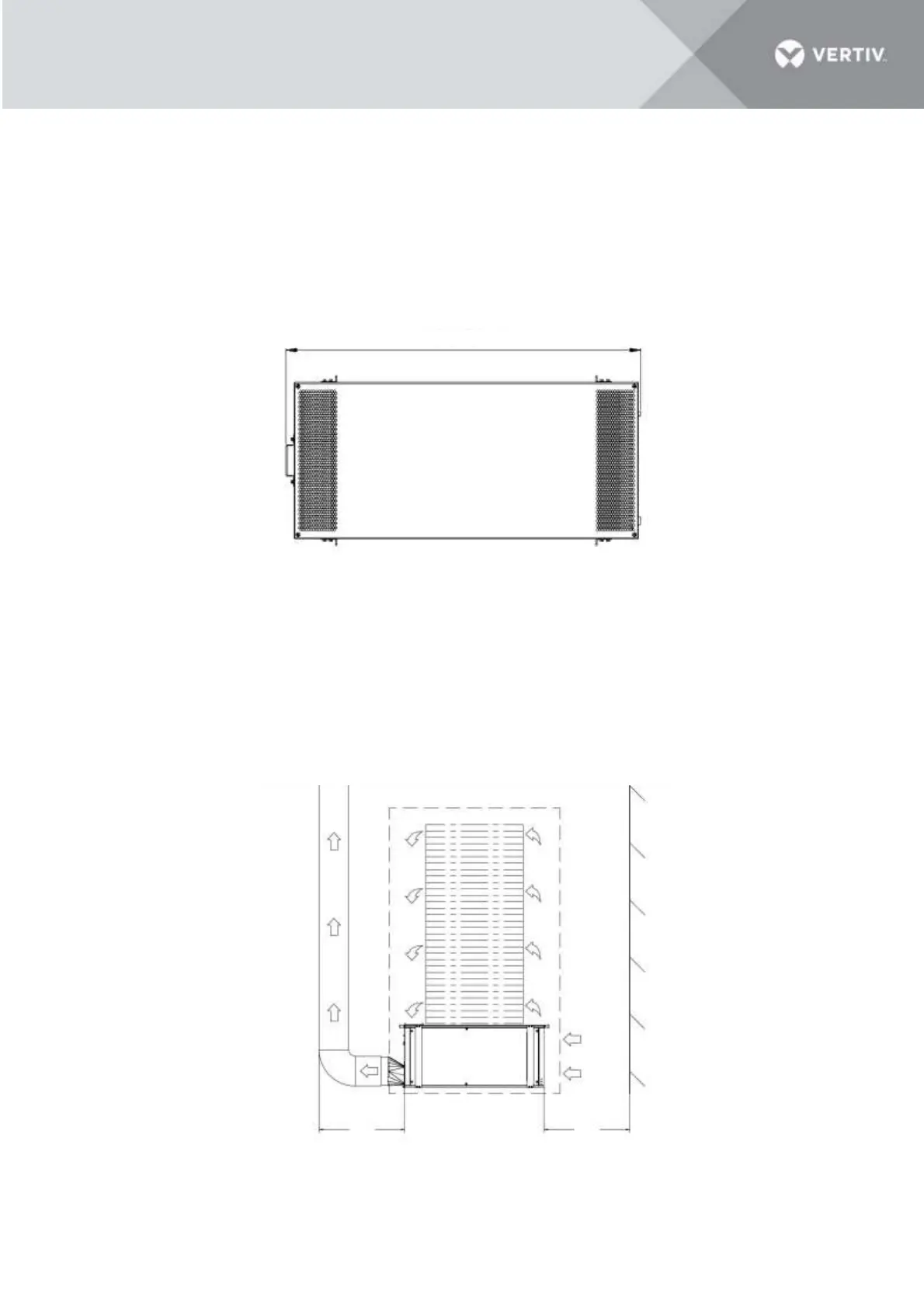

Figure 2-6 Minimum distance to pull-out the unit for maintenance
2.8 Condenser Airflow Clearance Requirement
To have sufficient space for condenser air inlet or outlet, the clearance in front and behind the VRC1XX unit
should not be less than 600 mm (23.6’’).
NOTES:
• In the case that the air conditioner is installed in a rack, please refer to the rack instruction to check
the clearance in front and behind the rack for installation or maintenance.
Figure 2-7 The required airflow clearance
