VESDA
®
LaserPLUS Installation Manual
Version 1.5 5
4. LaserPLUS Dimensions
CE = Cable Entry Ports (25.4mm, 1.0in ∅)
EP = Exhaust Air Port

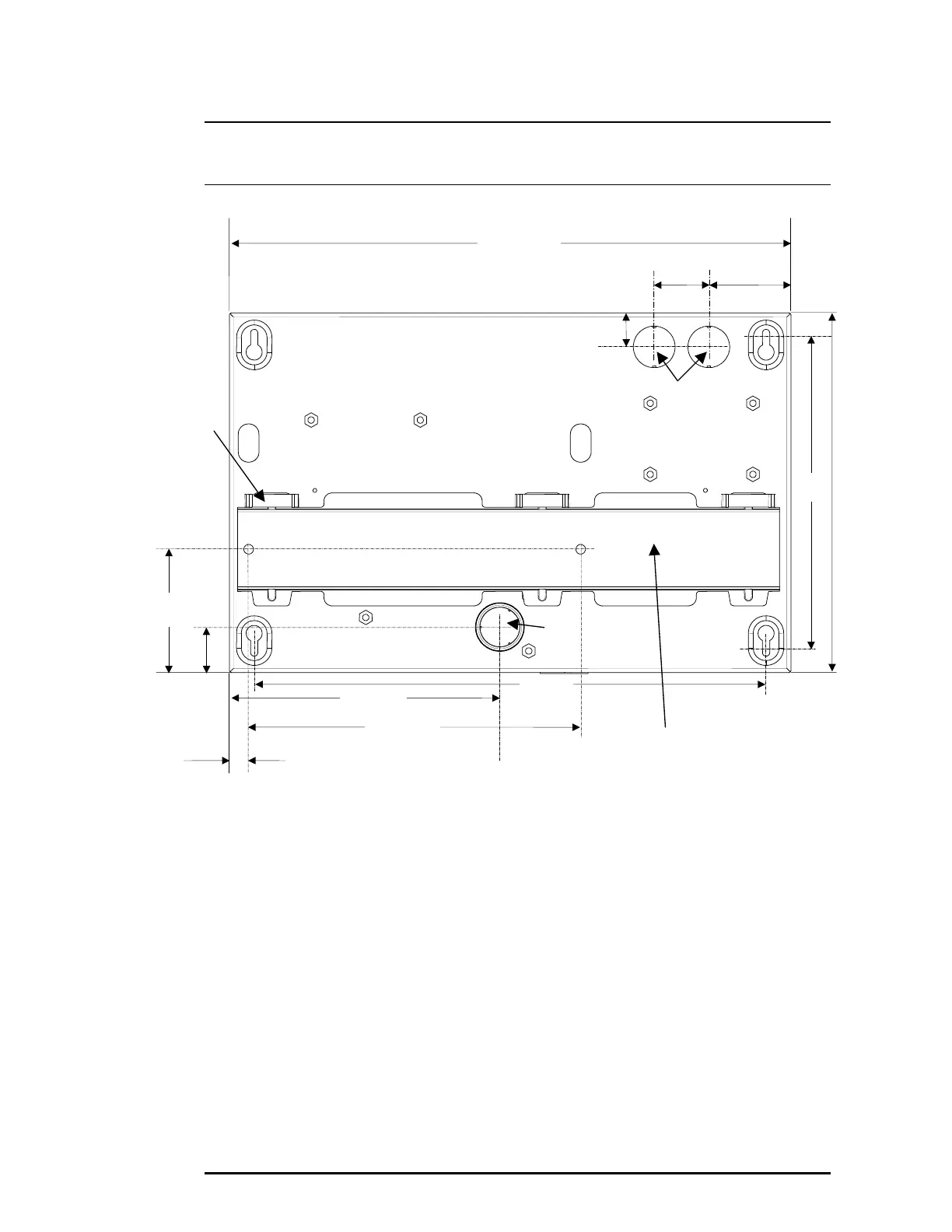

Figure 1 Dimensions in mm (in) of LaserPLUS with Mounting Bracket
(Rear View, Normal Orientation)
Note: Remove the centre pages of this manual for Installation
template. We strongly recommend the use of the mounting
bracket.
51.0
(2.0)
35.0
(1.37)
21.0
(0.83)
CE
350 (13.8)
209 (8.24)
EP
77.5
(3.05)
12.0
(0.47)
207 (8.15)
28.5
(1.12)
Mounting
Bridge and
Lance
225
(8.9)
200
(7.87)
319
(12.56)
To Next Page
