5. Insert the short tube into the Cartsick connector under the fan and lower the chamber while inserting

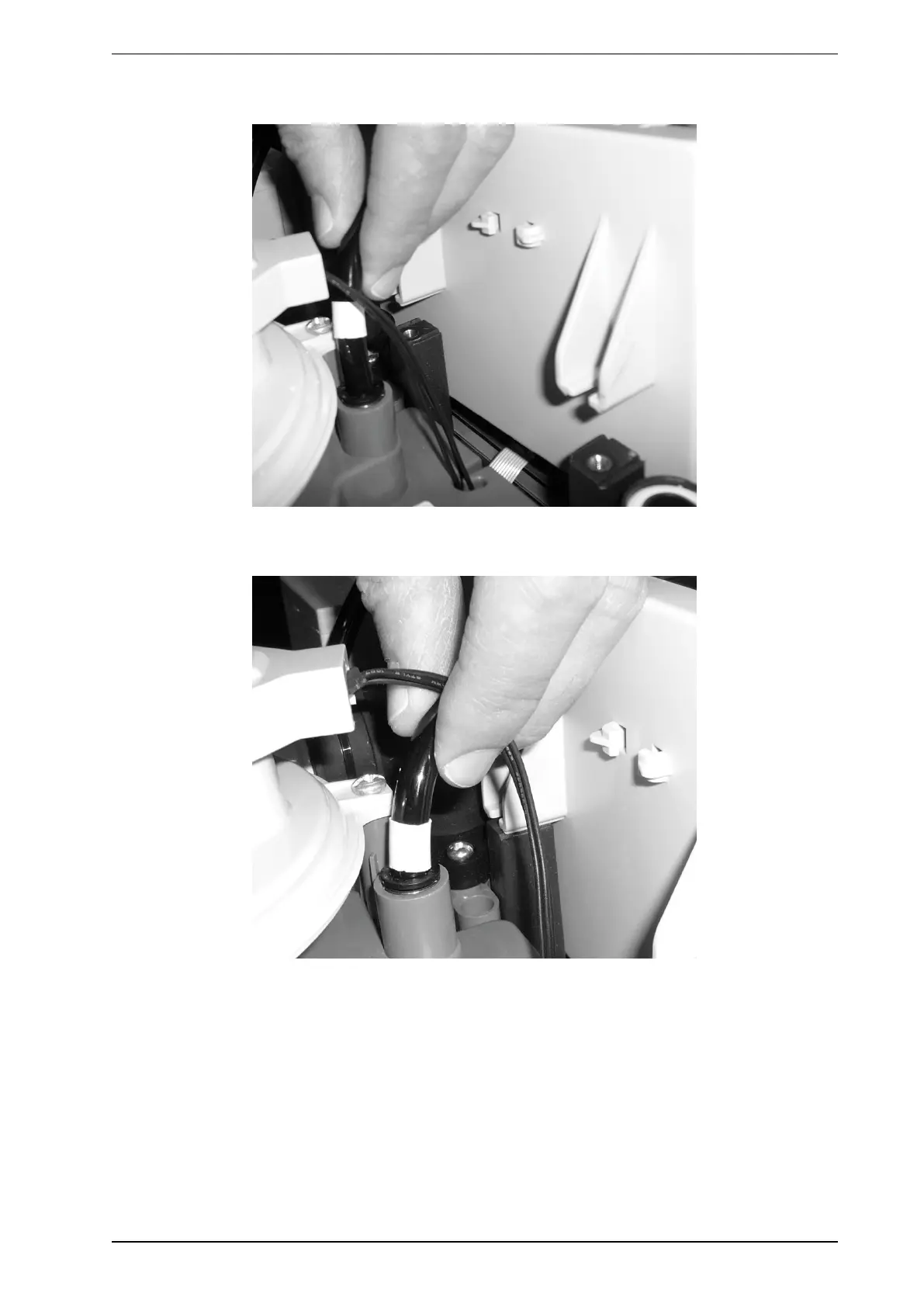

(Figure 8-32).
Figure 8-32: Lift Chamber
6. Insert the short tube until the white tape touches the black ring on the Carstick connector (Figure 8-33).
Figure 8-33: Insert Short Tube
