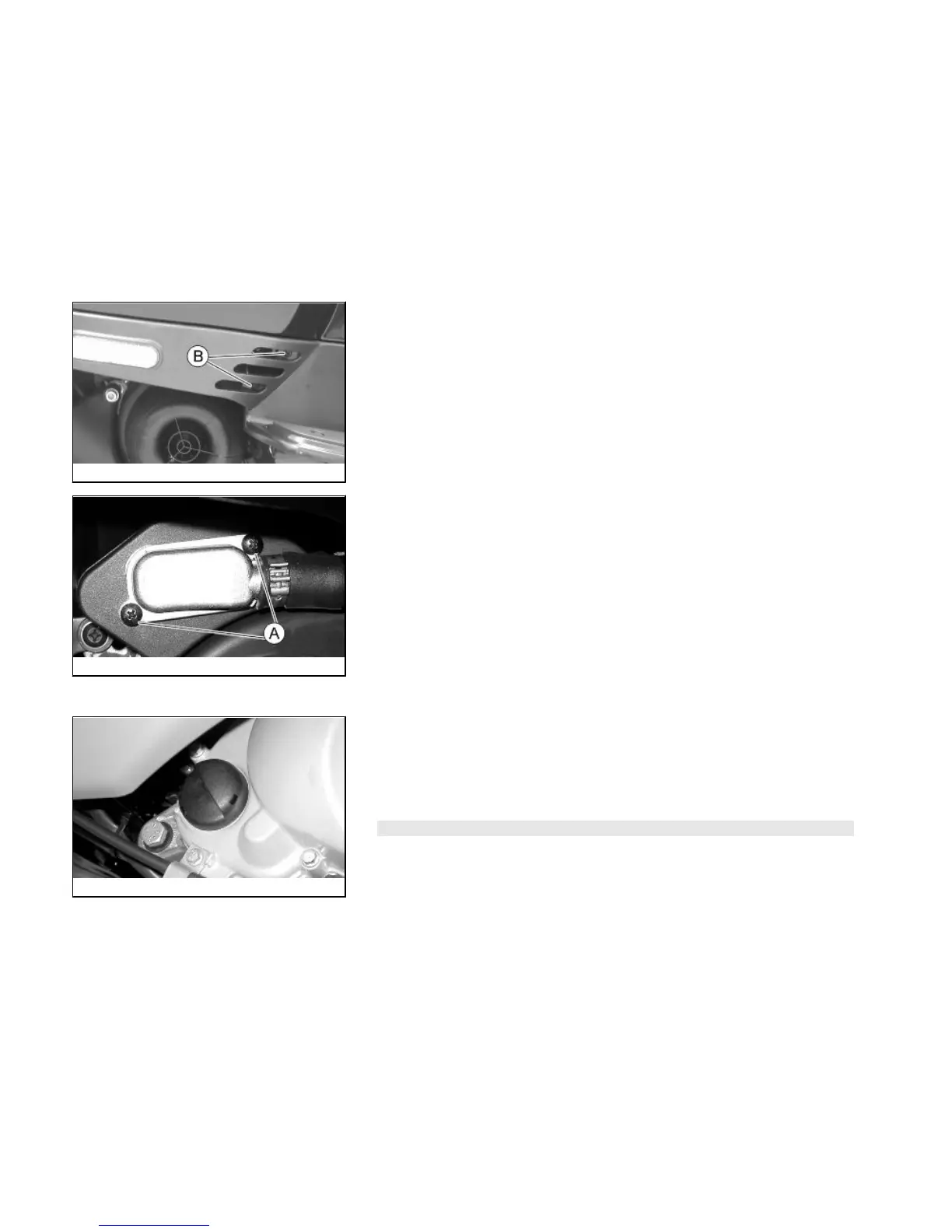

Secondary air system (03_09, 03_10)
Remove the right side fairing by undoing the 2 screws marked «B» indicated in the
figure.
Remove the two screws «A» from the aluminium SAS cover. Release the metal tube
from the rubber housing on the cover without extracting the tube from the cover/sleeve.
Remove the tab and plastic cover, extract the sponge and wash it in water and soap.
Dry it with compressed air before refitting it, making sure to correctly fit the tab in the
housing on the two plastic and aluminium covers. Every time you disassemble the
filter, replace the O-ring seal located in the cover.
03_11
Intake plug (03_11)
Remove the cap of the transmission cover operating on the corresponding release
slots with a plain slot screwdriver. Wash the sponge in water and soap without re-
moving it from its seat.
Dry it with compressed air before refitting it taking care to do so at the correct angle.
