Vespa LX 50 User Manual

WARNING
CHECK BRAKE PADS FOR WEAR ON A REGULAR BASIS (AS INDICATED IN
THE SCHEDULE MAINTENANCE TABLES). IF THE THICKNESS OF ONE OR
BOTH PADS IS IN THE REGION OF 1.5 MM, BOTH PADS MUST BE CHANGED.
IT IS RECOMMENDED TO CARRY OUT THIS OPERATION AT AN AUTHORISED
SERVICE CENTRE AS SOON AS POSSIBLE.
AFTER FITTING NEW BRAKE PADS DO NOT USE THE VEHICLE UNTIL YOU
HAVE ACTIVATED THE BRAKE LEVER REPEATEDLY TO POSITION THE PADS
AND RESTORE THE LEVER STROKE TO ITS CORRECT POSITION.
CAUTION
BRAKING SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.
03_26
Rear drum brake (03_26)

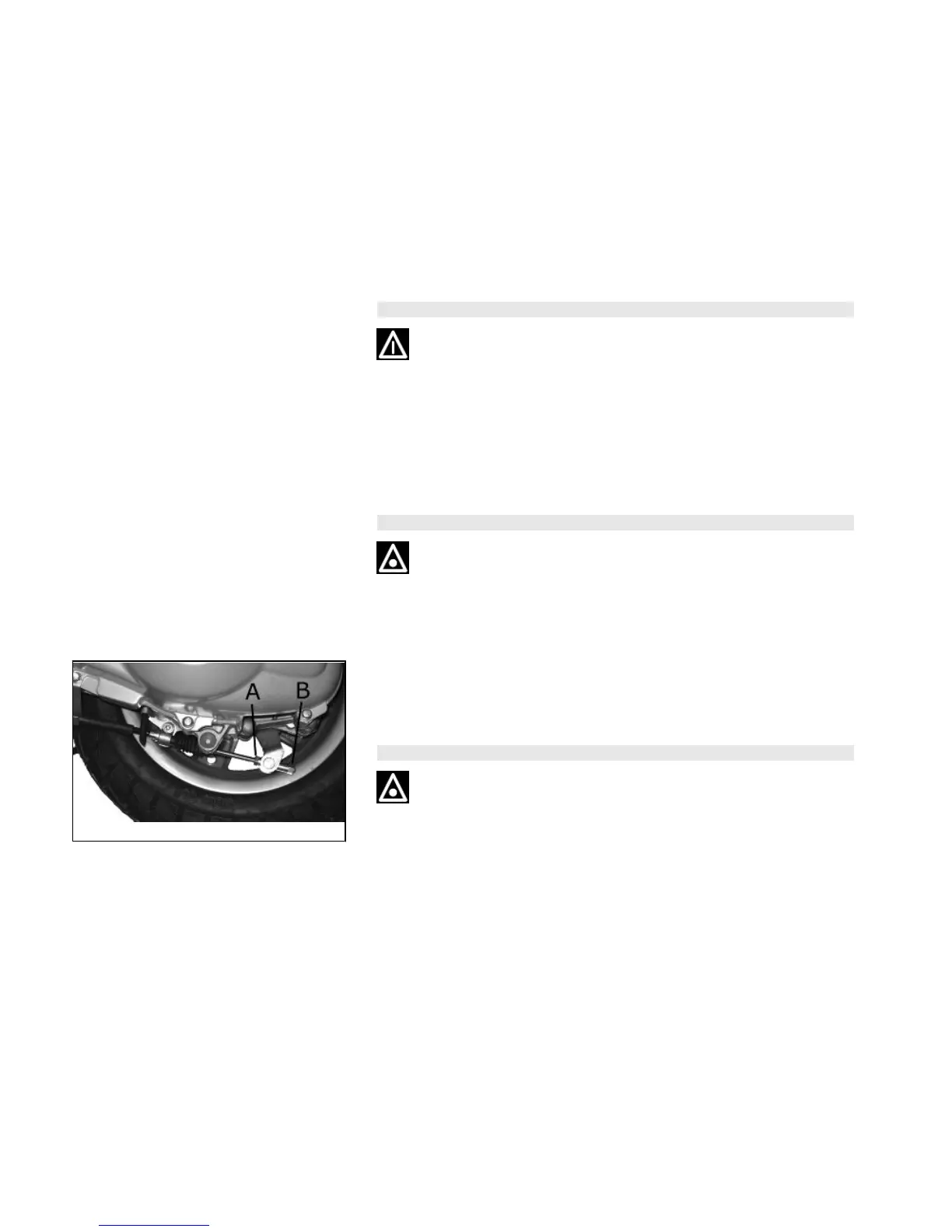

Operate adjusting nut «B» and loosen lock nut «A» shown in the figure. Note that
when the throttle is in idle the wheel should rotate free. After the adjustment, screw
lock nut «A».
CAUTION
BRAKING SHOULD BEGIN AFTER ABOUT 1/3 OF THE BRAKE LEVER STROKE.
44
3 Maintenance

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
