Vespa LX 50 User Manual

03_22

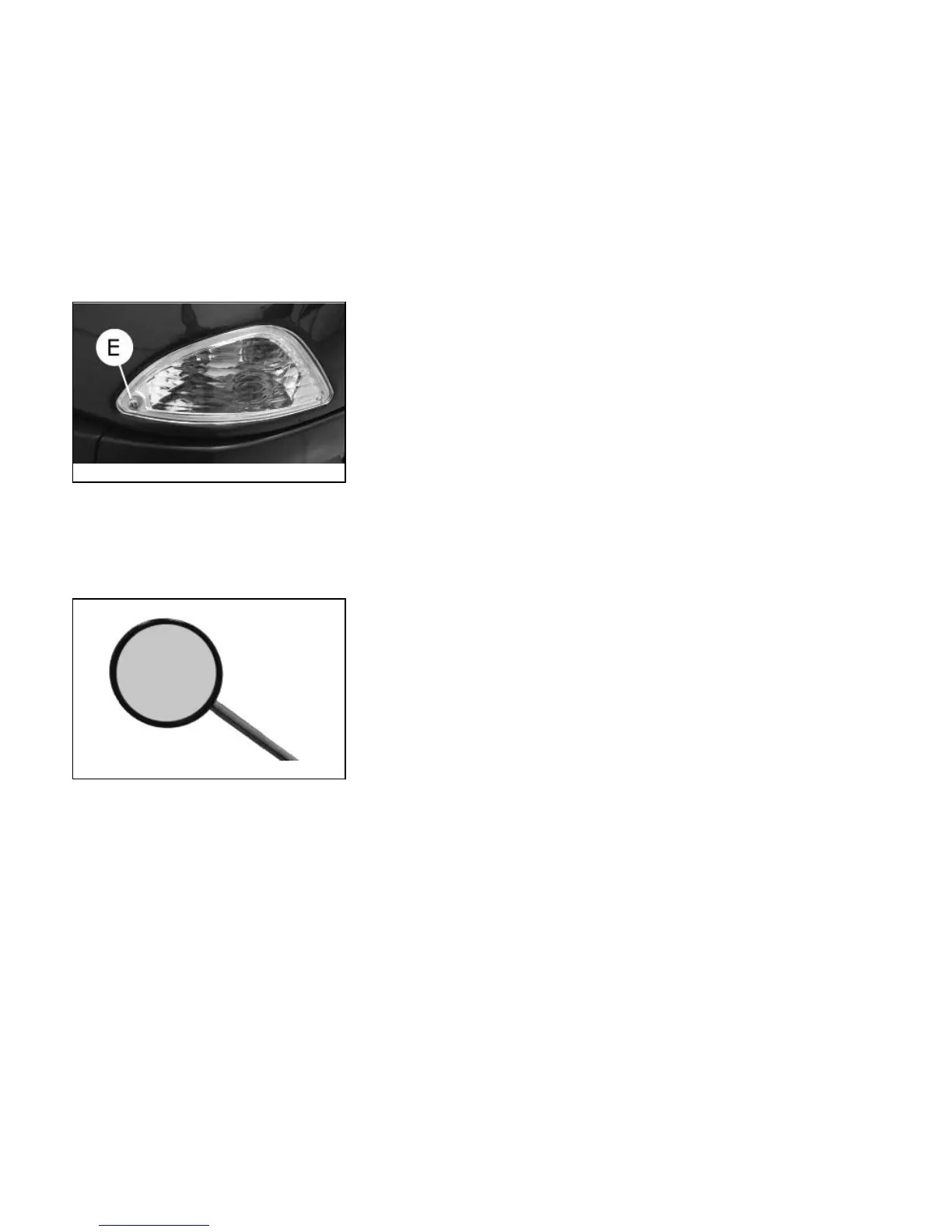

Rear turn indicators (03_22)
To gain access to the turn indicator bulbs, remove the fastening screws «E».
The bulbs have a bayonet coupling, to remove them press gently and twist anticlock-
wise about 30°. To refit follow the same steps but in reverse order.
Rear-view mirrors (03_23)
The mirrors can be set to the desired position by adjusting the mirror frame.
03_23
To remove the rear-view mirror rotate the rear-view mirror support rod clockwise.
42
3 Maintenance

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
