check if this switch is off.
Power Input: This power connector must be connected before using the
machine.
Top Rear Access Door: This door leads to the laser bay where the laser
tube and its connections are secured.
Rear Door: This door is the equivalent of a front door and requires similar
care during use.
Lower Rear Access Door: This door provides access to the air assist
pump and Z-axis belt.
Exhaust fan: This fan extracts gas and debris from the air from the
workbench and sends the air out after being purified by an eco-friendly
filter.
Water Tank Cooling Fan: This fan is used to cool the circulating water.
3.Laser path description.

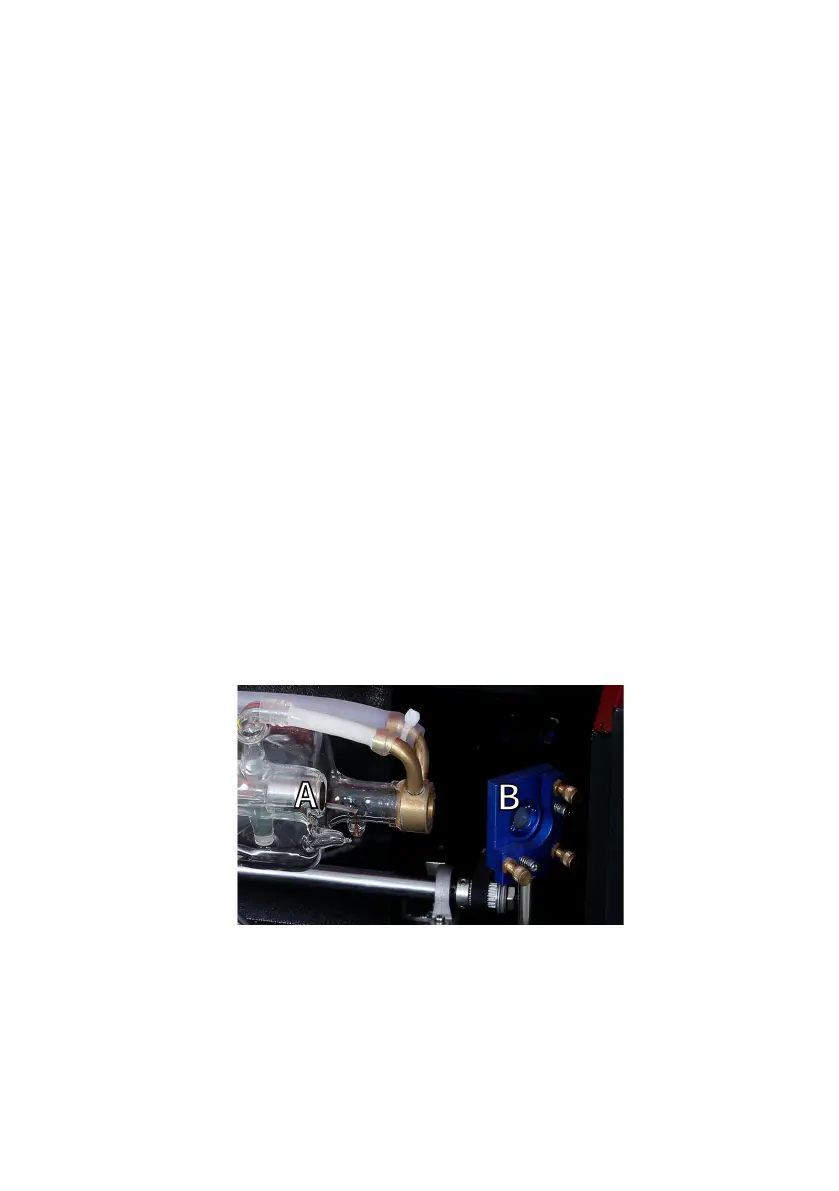

A. Laser tube:This glass tube filled with carbon dioxide is mounted on a
bracket and cannot be moved. The connection voltage between it and
the laser power supply is extremely high and extremely dangerous.
B. First reflector — This adjustable angle mirror is held in place to
transfer the engraving laser from the tube to the second mirror.
C. Second mirror:This adjustable angle mirror moves along the X-axis
guide to allow the laser beam to travel along the Y-axis.
D. Third mirror:This angle-adjustable mirror moves with the laser head,
allowing the laser beam to travel along the X-axis.
