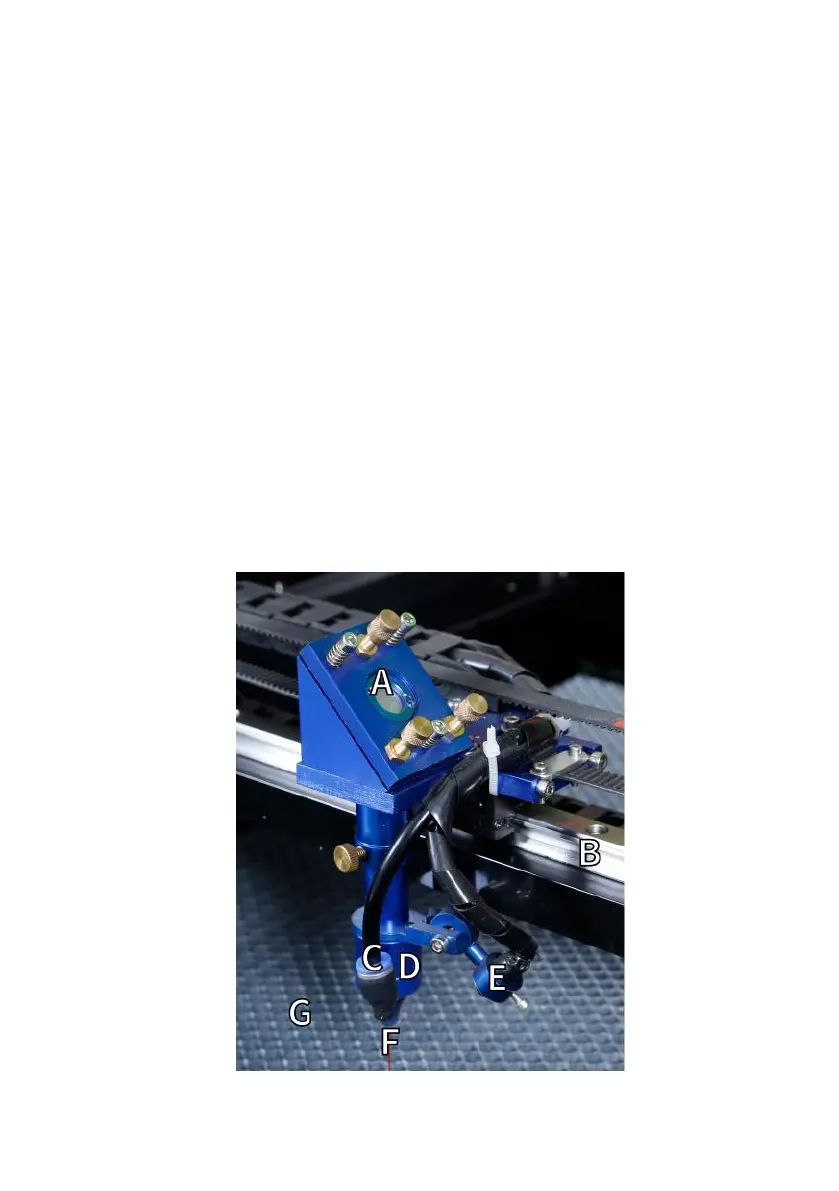

5.Laser head assembly.
A. Laser Head Third Mirror: This angle-adjustable mirror transmits laser
light from the second mirror to the focusing lens.
B. X-axis guide: This guide moves along the Y-axis, and its movement is
controlled by a limit switch.
C. Air Assist: This device blows pressurized air to kill sparks and blow
away gases and debris while engraving.
D. Focusing Lens: This lens directs and focuses the laser beam to its
point of contact with the engraving material.
E. Red Dot Pointer: This device helps you see the exact location of the
invisible engraving laser.
F. Laser:The engraving laser itself is invisible, but very dangerous. Avoid
direct contact with skin or eyes.
G. Workbench: Use the acrylic tools provided to achieve the perfect
focus for any thickness of material.
