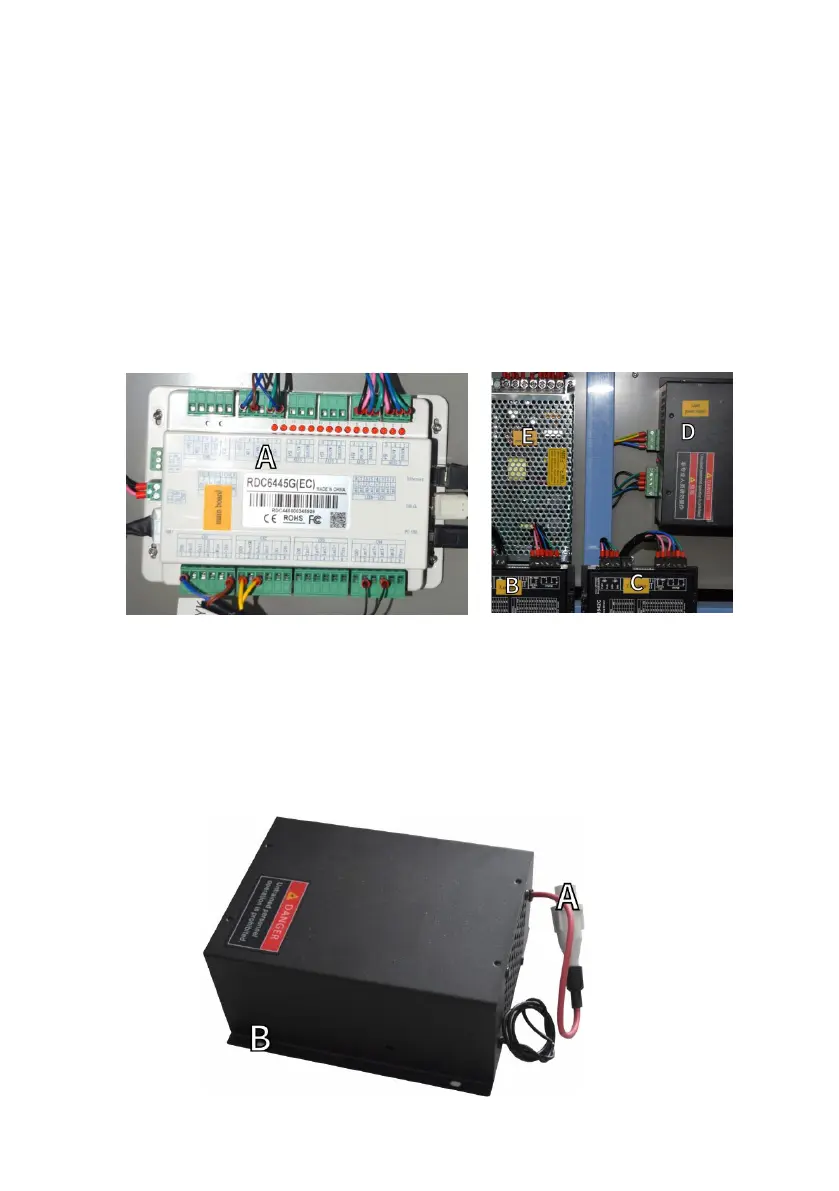

6.Right access door.
A.Motherboard:This board controls the engraving process and responds
to com-mands from the engraving software or the machine's control
panel.
B.X-axis driver: This device moves the laser head along the X-rail.
C.Y-axis drive: This device moves the X-rail along the Y-rail.
D.Laser Power: This device converts standard electricity into the
extremely high voltage charge required for a laser tube.
E. Power Supply—This device powers the machine's motherboard and
drives.
7.Laser power supply.
A. High-voltage wire: This wire is connected to the anode or positive end
of the laser tube and provides high-voltage current to power the laser.
B. Mounting Holes: These standard slots allow for simple installation and
removal.
