Perform beam alignment at low power levels: 15% or less. Any higher
percentage will cause the laser to ignite the test strip instead of marking it.
Make sure to set the maximum power (not the minimum) to 15%.
LASER TUBE ALIGNMENT.

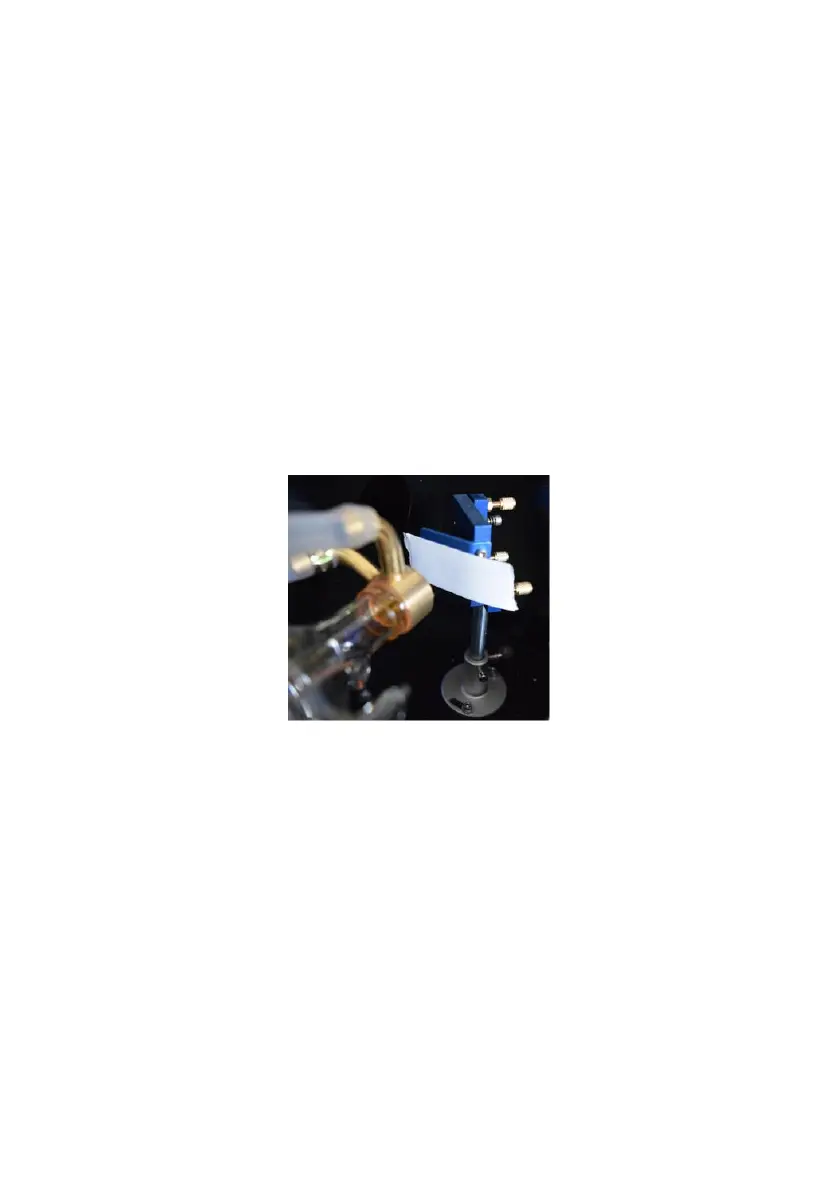

To test the alignment of the laser tube with the first mirror, cut a strip of tape
and place it on the frame of the mirror.
Do not place the tape directly on the mirror. Turn on the machine and set
the power level to 15% or lower.
Press PULSE to manually fire the laser. You should be able to see a small
mark on the tape. If it doesn't notice, press PULSE again.
Press the pulse to activate the laser. Always make sure that the path
between the laser and its target is unobstructed. Never allow foreign
objects to enter between the laser and its target. When pressing the
PULSE button, be careful not to leave any part of your body in the laser
path.
The laser mark should be close to the center of the hole. If the laser is not
centered on the first mirror, cut off the power of the laser and carefully
adjust the laser tube in its holder. This may require loosening the bolts on
its bracket. Be careful not to over-loosen the bolts and not over-tighten the
bolts. Only one stand can be adjusted at a time.
