iMS3D – Indoor Mobile Scanning System
Operating Guide. © Viametris SAS.
iMS3D – Operating Guide Document v2.12 7

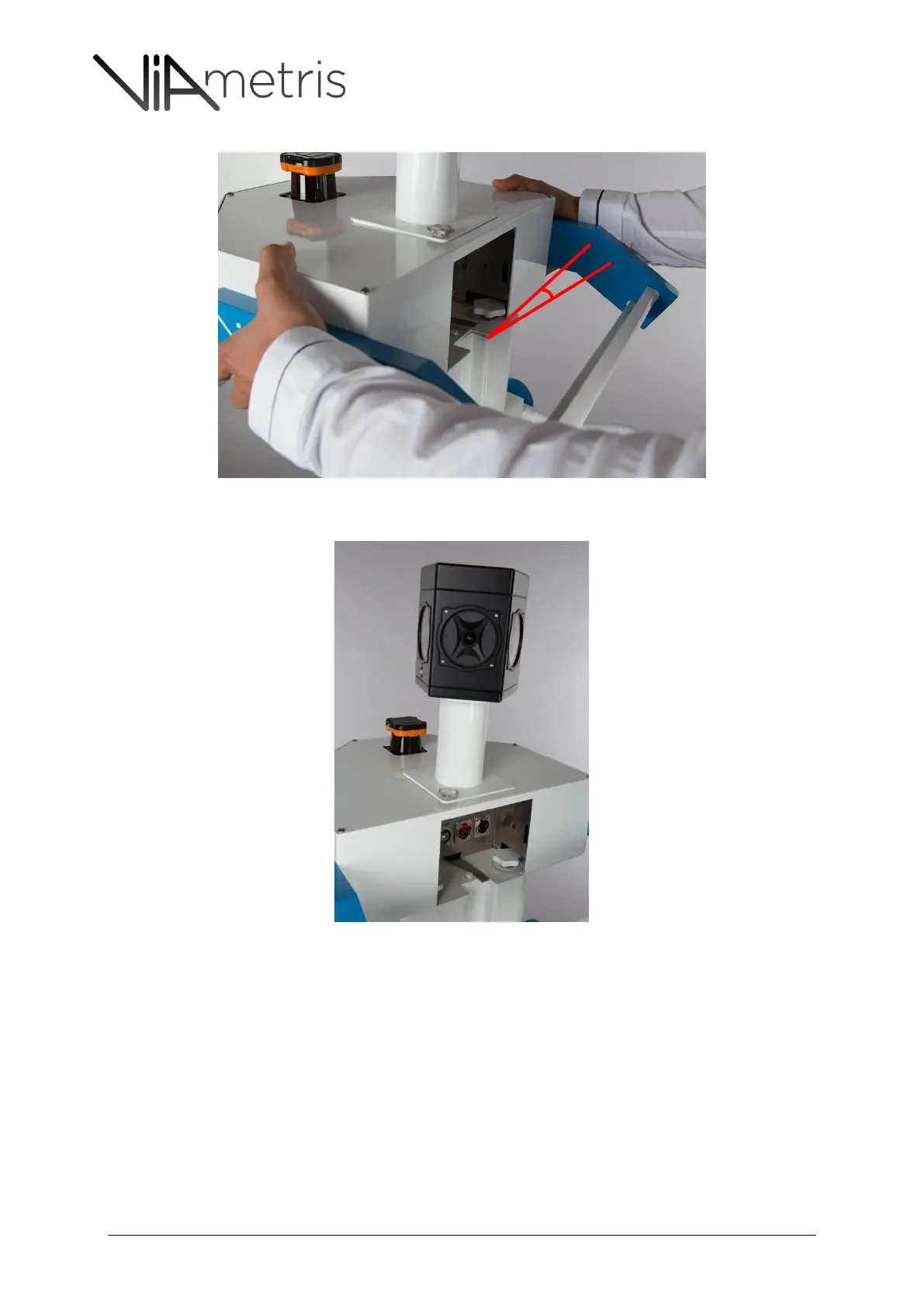

8. Once the sensor unit is placed on the frame, turn it sharply to lock the sensor unit on the frame
9. Install the processing unit using by facing the three plastic hooks to the holes in the mast frame
