17
NM PLUS HYDROGEN GENERATOR
USER MANUAL
www.vicidbs.com
Version 1.06.0000
7. OPERATION
7.1. LCD DISPLAY

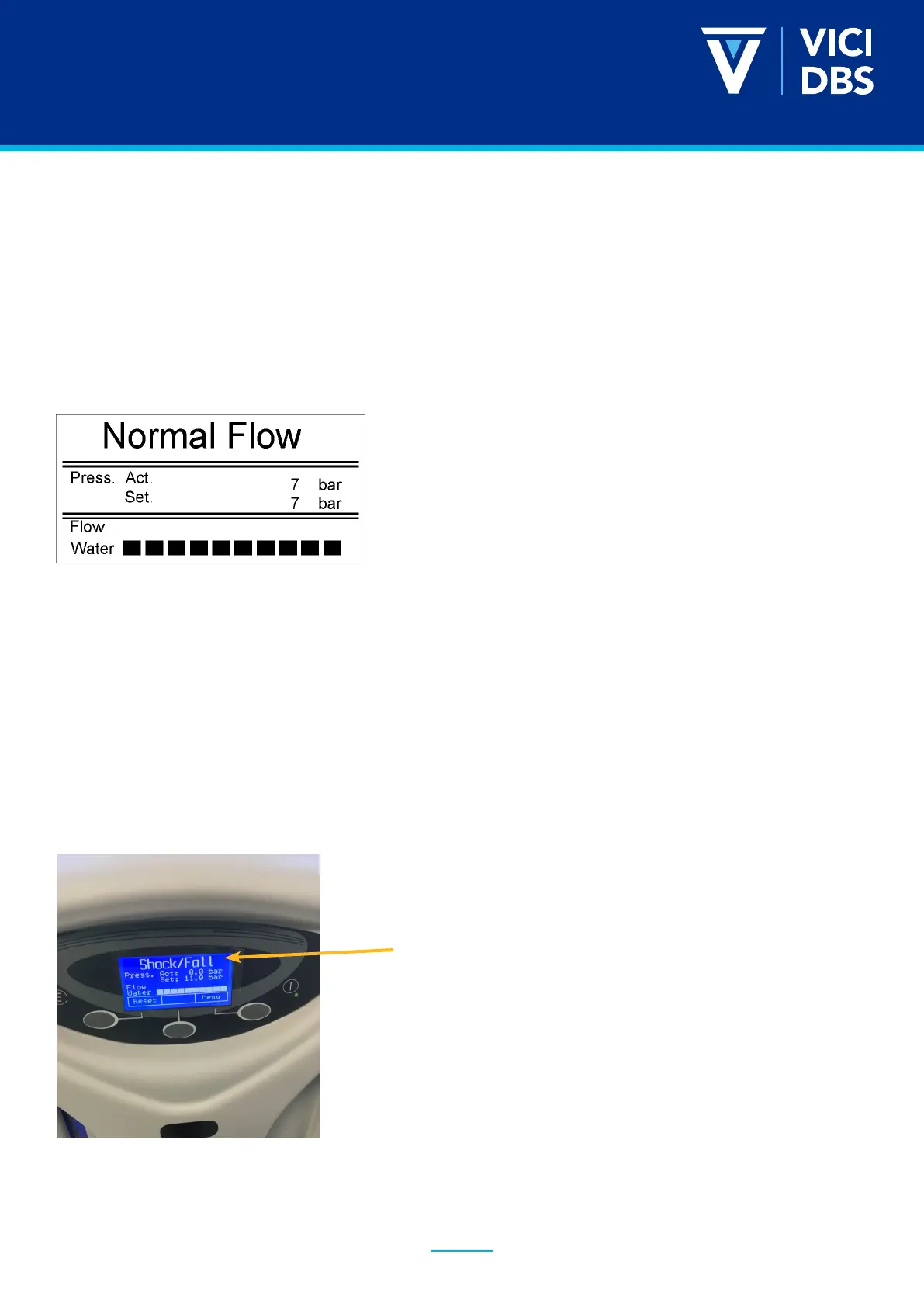

7.1.1. Layout of the Display
7.1.2. First Row - Status Information
All the important information is shown on the display.
The LCD display provides the following information:
Shows current status of the generator. The information can be divided into 3 groups:
Information: Displays normal operating status.
Pre-Alarm: Indicates that a maintenance intervention will soon be required; accompanied by an
audible signal.
Alarms: Indicates that a maintenance intervention is required and that the generator has been shut
down; accompanied by an audible signal.
Example of an alarm message
