NM PLUS HYDROGEN GENERATOR
USER MANUAL
www.vicidbs.com
Version 1.06.0000
PRODUCT PART # DESCRIPTION
Low press GLS DB-H200-038 H2 separator water tank
Water tank DB-PH201-000 Water tank complete PG Plus/NM Plus (2 water outlets)
(from s/n PNMX170115261 and PHGS170115343)
Tubing DB-10021 Tygon
®
-tubing 2375 ID 1/4", OD 3/8", Thickness 1/16"
Pump DB-10292 Water Pump SANSO NM/PG Plus
Water inlet/water drain DB-H200-050 Rear panel water tting (drain) (from S/N:
PNMS170915368 & PHGS170915444)
Bypass DB-10396 Bypass kit water pump NM/PG Plus (less than 500
mL/min)
GLS DB-H200-007 G/L separator, complete with ttings
Over pressure relief DB-H200-035 Pressure release valve
Perma Pure tube DB-H200-034 Perma Pure for all versions
Dryer board DB-NMP200-003 Dryer board for NM Plus
H2 outlet DB-H200-036 Gas outlet connector
PRB DB-10638 Pressure release block (PRB)

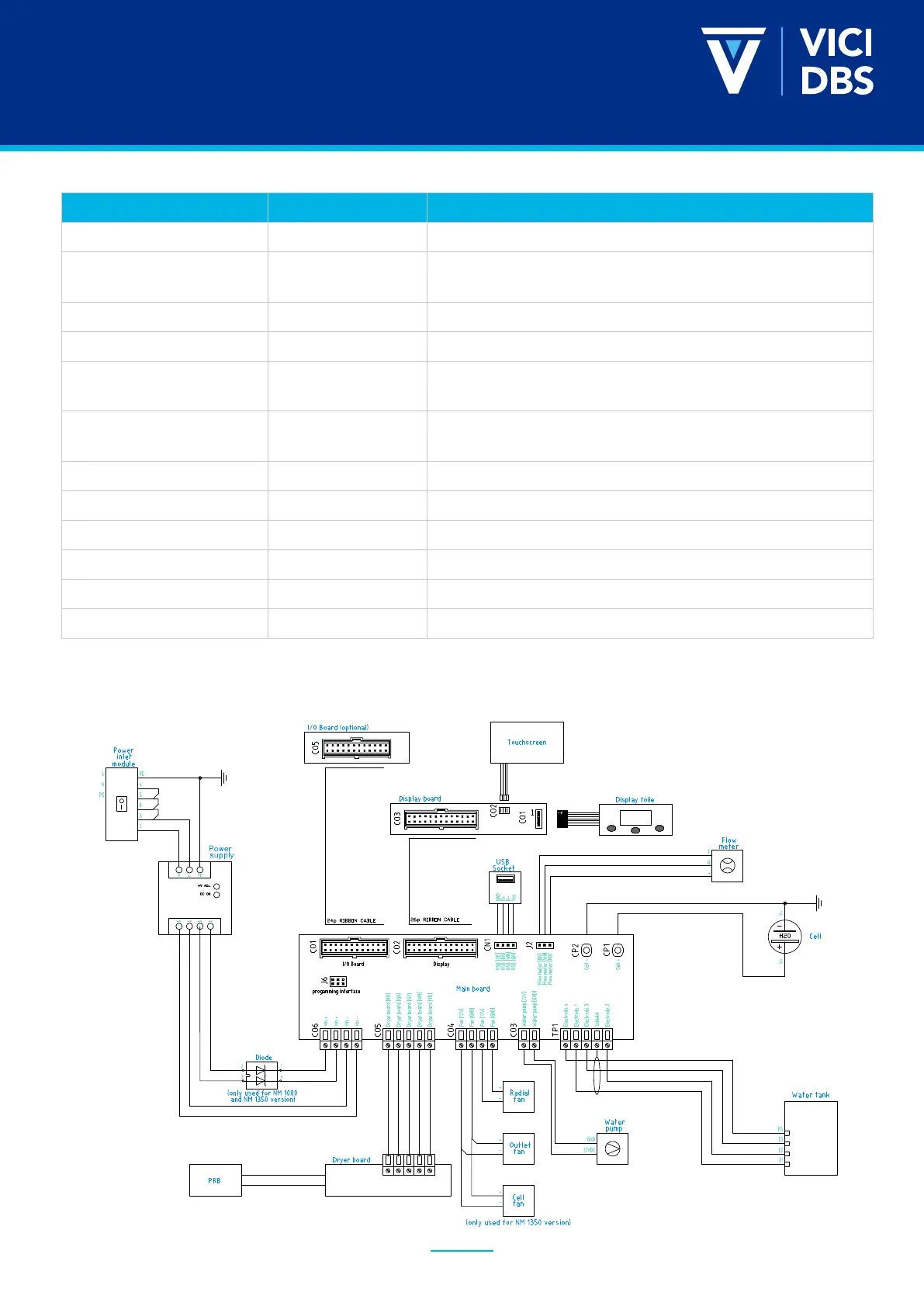

10.2. Electrical Schematics
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:
NM Plus with PRB
electrical diagram
20.04.20
08.06.20
SBU
SB
1
1/1
