NM PLUS HYDROGEN GENERATOR
USER MANUAL
www.vicidbs.com
Version 1.06.0000
5.1. FUNCTIONALITY
The hydrogen generator produces pure hydrogen (and Oxygen as a by-product) by the electrolysis of
water. The key element of the generator is an electrochemical cell assembly which contains a solid polymer
electrolyte. No free acids or alkaline are used. Deionized or pure distilled water is the only liquid which will
come into contact with the cell. As this is consumed it must be relled from time to time as required.

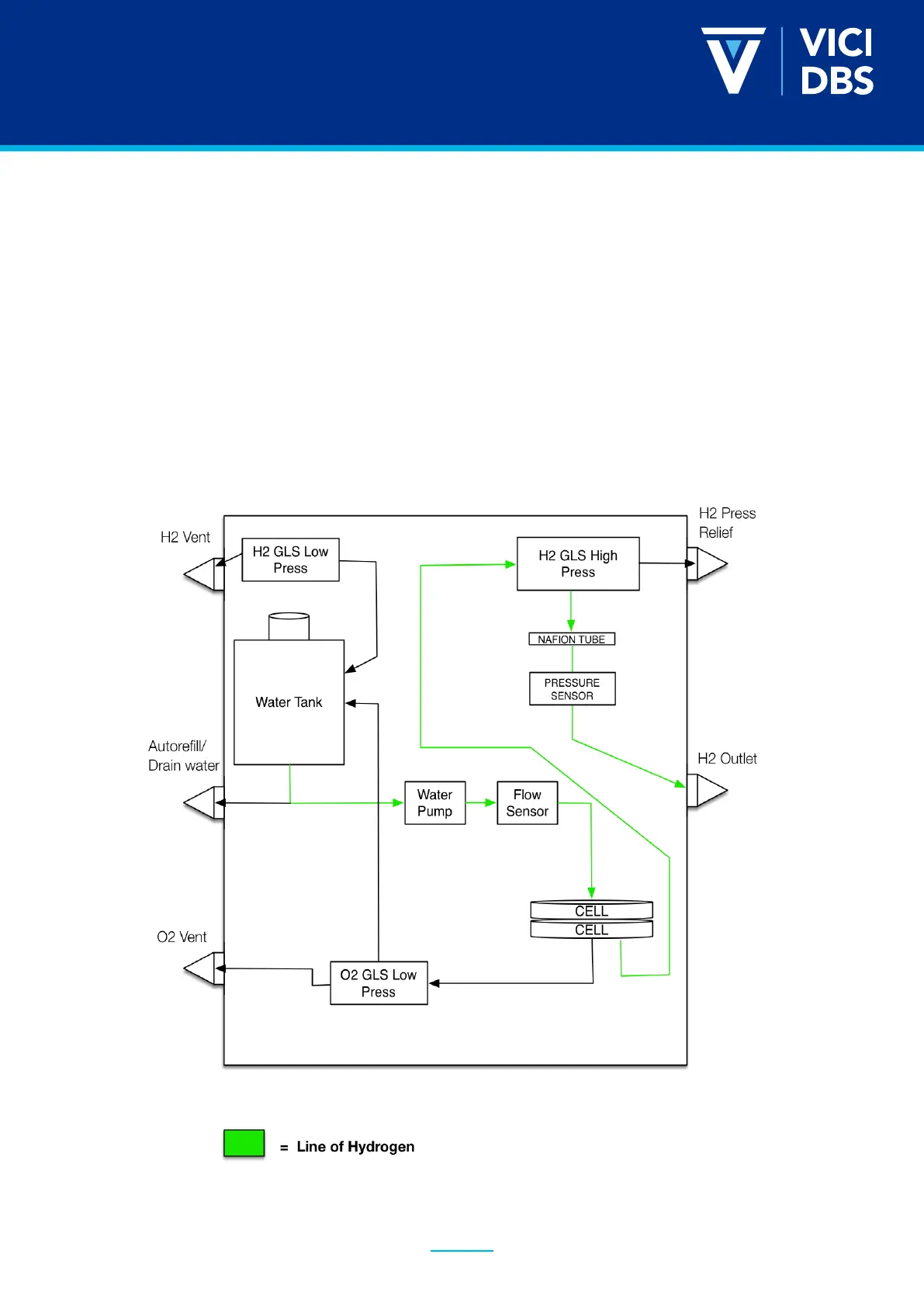

The hydrogen is passing the hydrogen/water separator and the permeation drying tube. The pressure is
controlled by current. The hydrogen then passes through the outlet port at the rear.
