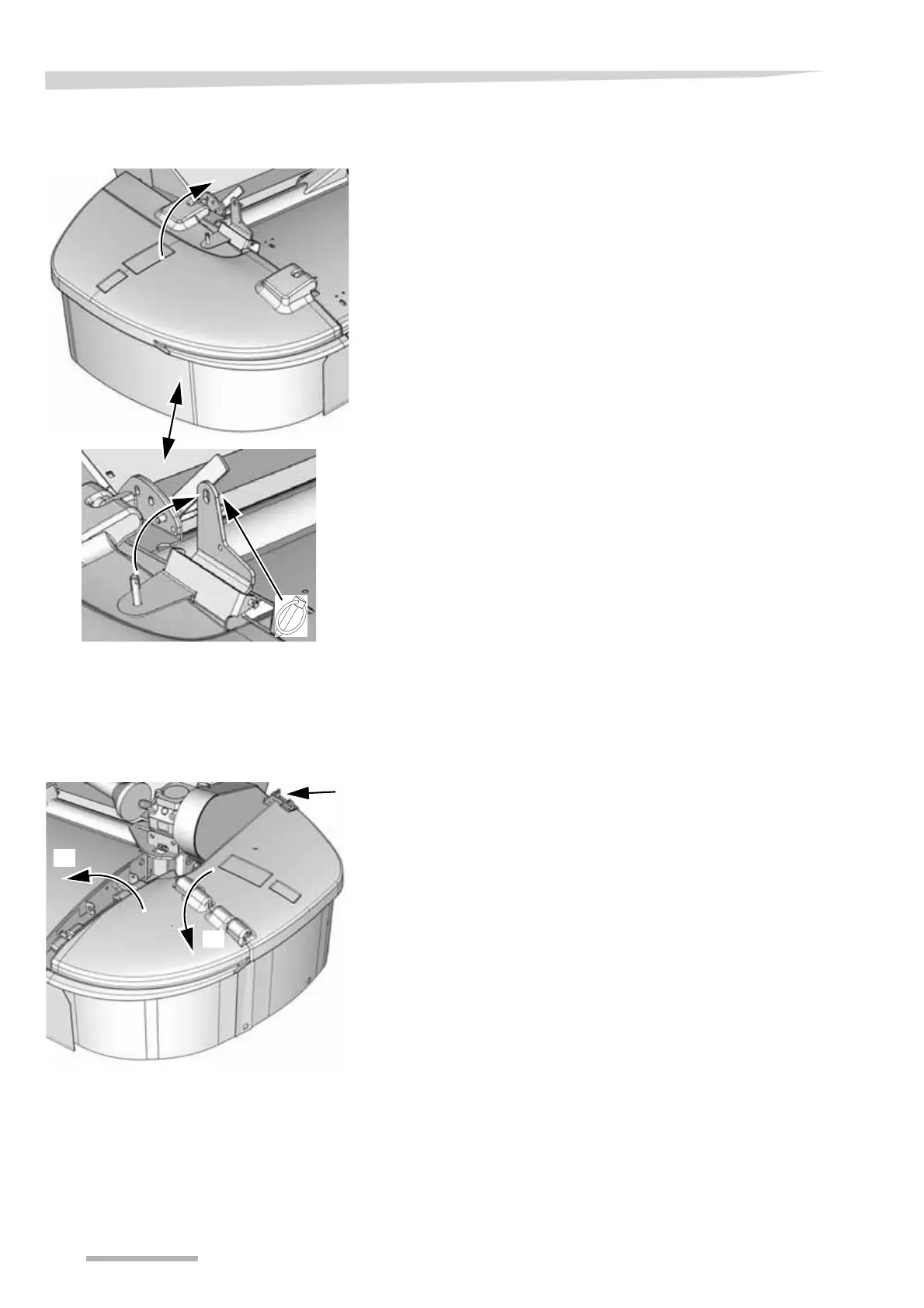

Assembly - attachment
Right-hand side
> Tilt the whole guard up as shown.
> Fit the linchpin as shown.
Left-hand side
> Remove the linchpin [1].
> Swivel the guard round as shown [2-3].
2
3
1
