Operation
53
Deflector plates
The machine is fitted with 2 deflector plates:.
When the deflector plates are used, the crop is collected into a
compact swath.
The deflector plates can also be removed from the machine, so the
crop is spread out across the whole breadth of the machine.
T
IP
!
The cutting swath should be as broad and even as possible.
628FT

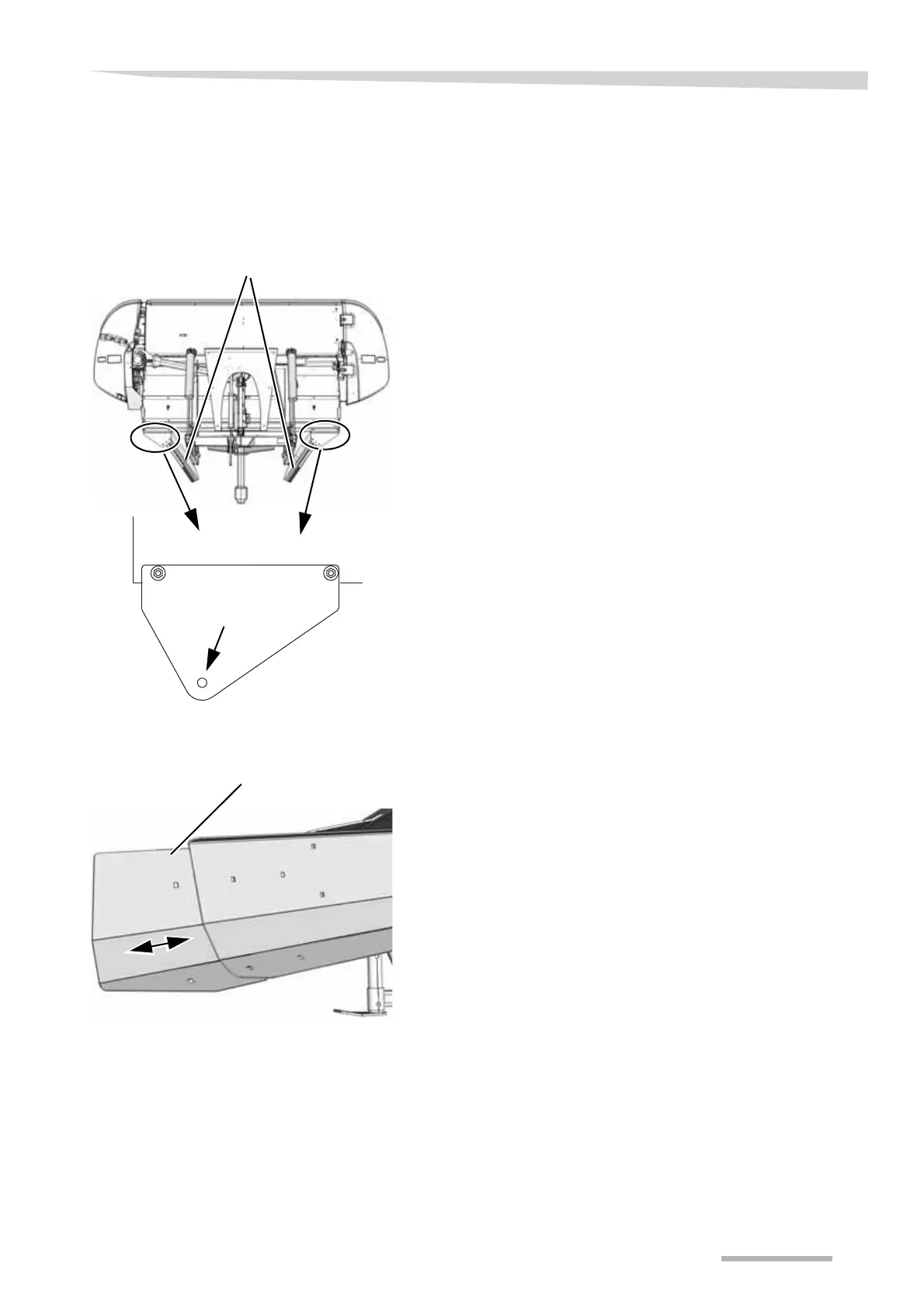

The deflector plate is adjusted as follows:
On this machine, the deflector plates can only be mounted in one
position.
The deflector plates can also be removed from the machine, so the
crop is spread out across the whole breadth of the machine.
»Removing the deflector plates« page 56
Only available as extra equipment
The deflector plates can be equipped with extension pieces which can
be adjusted to several positions. Using these extension pieces will
produce a particularly compact swath.
»Optional equipment« page 114
NB
On tractors with large front wheels and short lift arms on the front lift,
users must be particularly aware of the danger of the wheel coming
into contact with the deflector plates when the front wheel is turning,
for example when turning at the headland. This can damage or deform
the deflector plates.
»Pay attention to the deflector plates« page 56
Extension pieces for the deflector plates
