94
Maintenance
Y-fingers on the rotor
Safety concerning maintenance work on the cutterbar
When working on the cutterbar, the tractor must be stopped and
secured.
This prevents the machine from suddenly starting to rotate.
If the tractor and the PTO shaft have not been connected according to
the instructions serious accidents resulting in torn off limbs can occur.
When working on the cutterbar:
• The tractor engine must be stopped.
• The ignition key must be removed.
• The PTO shaft must be disconnected.
• The tractor hydraulic system should be disconnected.
• The hand brake should be activated.
Every day
»Maintenance intervals« page 72

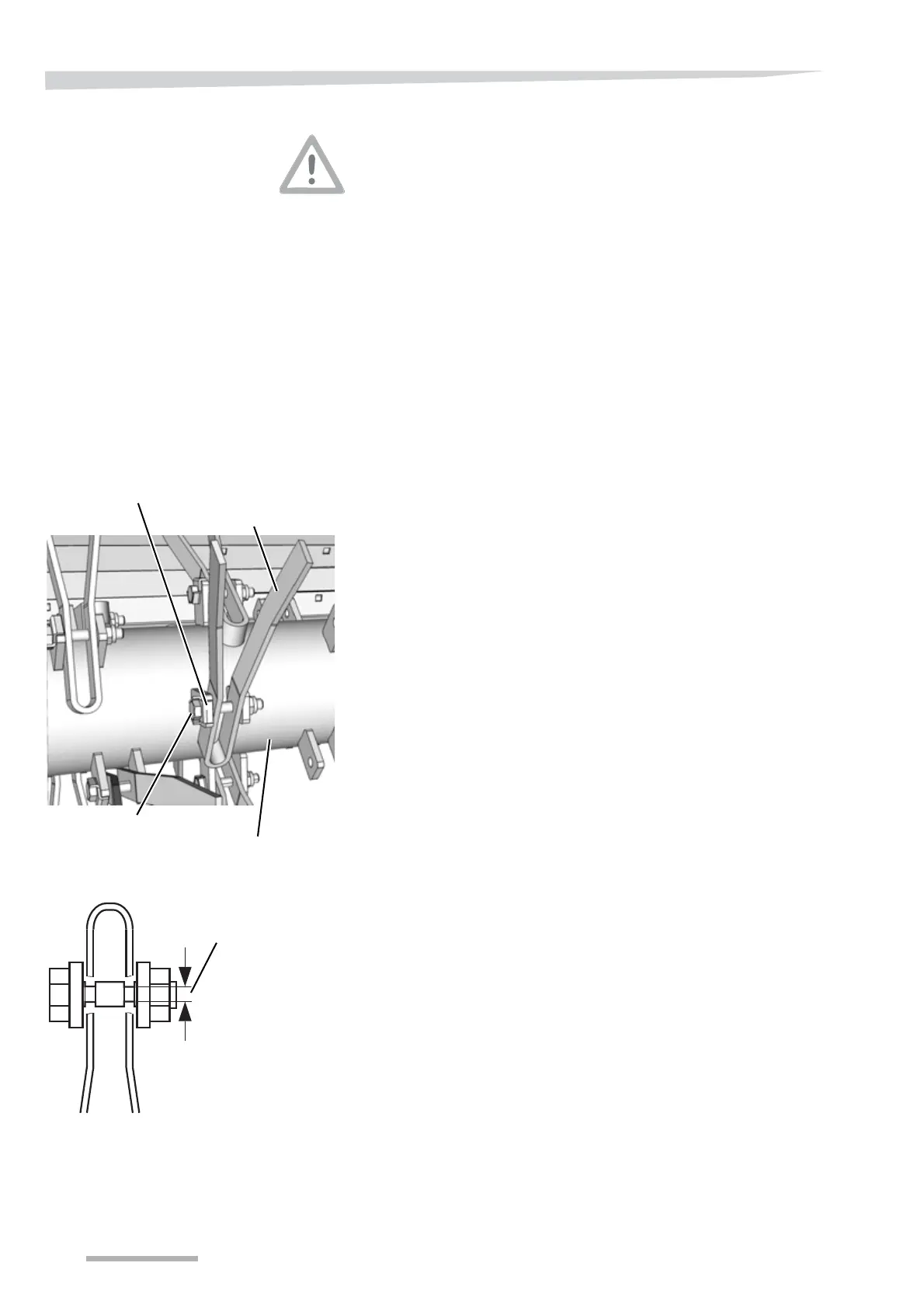

The Y-fingers are checked as follows:
> Check the rotor for loose fingers.
> Check the lock plate by the bolt.
• If the lock plate is damaged or cracked, it must be changed.
»Y-fingers on the rotor« page 109
> Inspect the bolt for damage or wear.
• If the bolts are damaged or worn, they must be changed.
NB
The minimum diameter of the bolt must not be less than 9 mm.
»Y-fingers on the rotor« page 109
> Check that the bolts are fully tightened.
> If not, use a suitable tool to tighten the bolt fully.
NB
• The Y-fingers should be able to move freely.
Lock plate
Rotor
Y-fingers
Bolt
