Maintenance
116

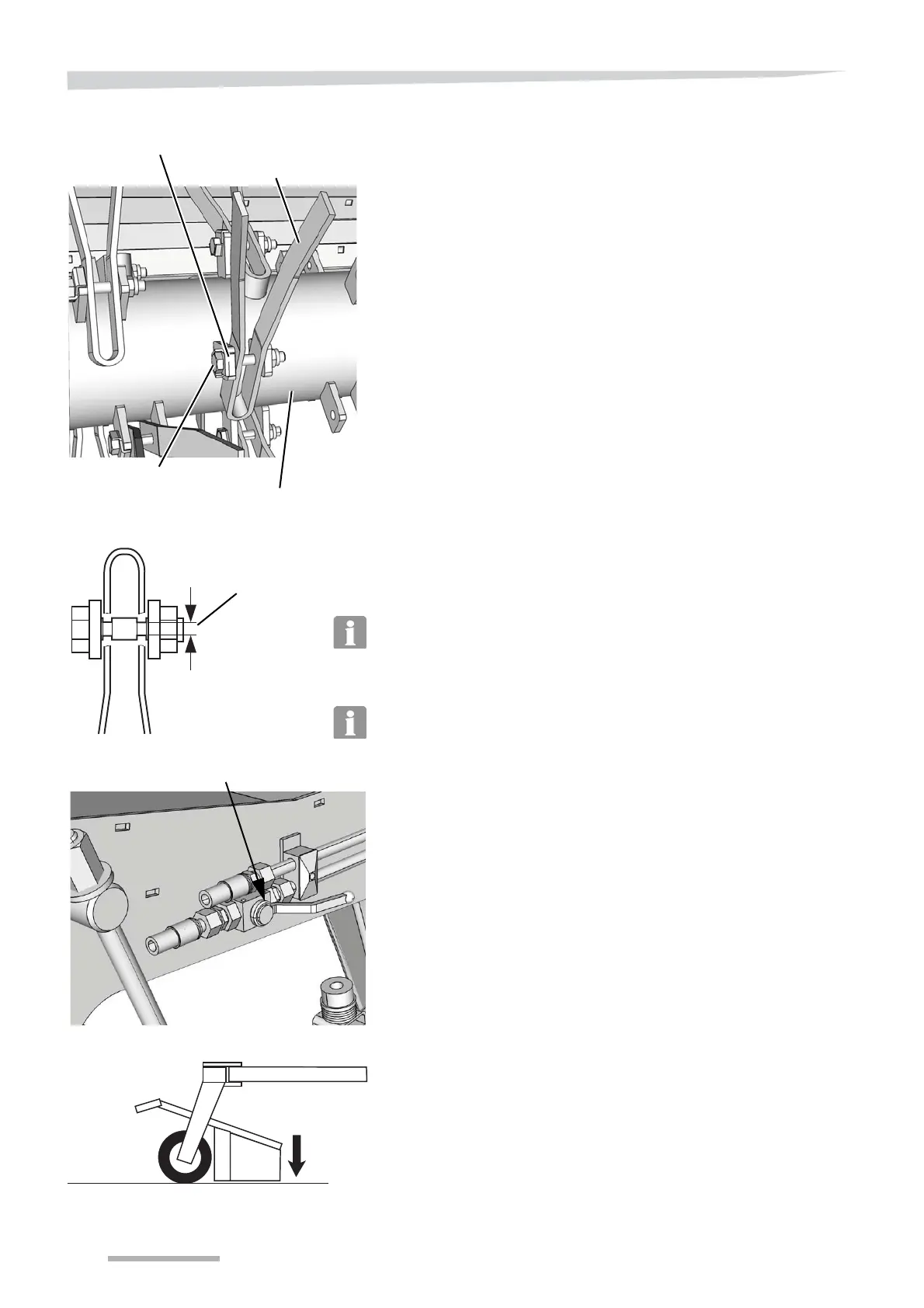

Check the conditioner for loose fingers.
Check the lock plate by the bolt.
• If the lock plate is damaged or cracked, it must be changed.
»Y - fingers« page 149
Inspect the bolt for damage or wear.
• If the bolt is damaged or worn, it must be changed.
The minimum diameter of the bolt must not be less than 9 mm (
3
/
8
”).
»Y - fingers« page 149
Check that the bolt is fully tightened.
If not, use a suitable tool to tighten the bolt fully.
The Y-fingers should be able to move freely.
Open the mechanical safety valve.
Activate the tractor hydraulics and lower the cutting unit of the
machine.
Lock plate
Rotor
Y-fingers
Bolt
Min. diameter
9 mm. (
3
/
8
”).
