Maintenance
95

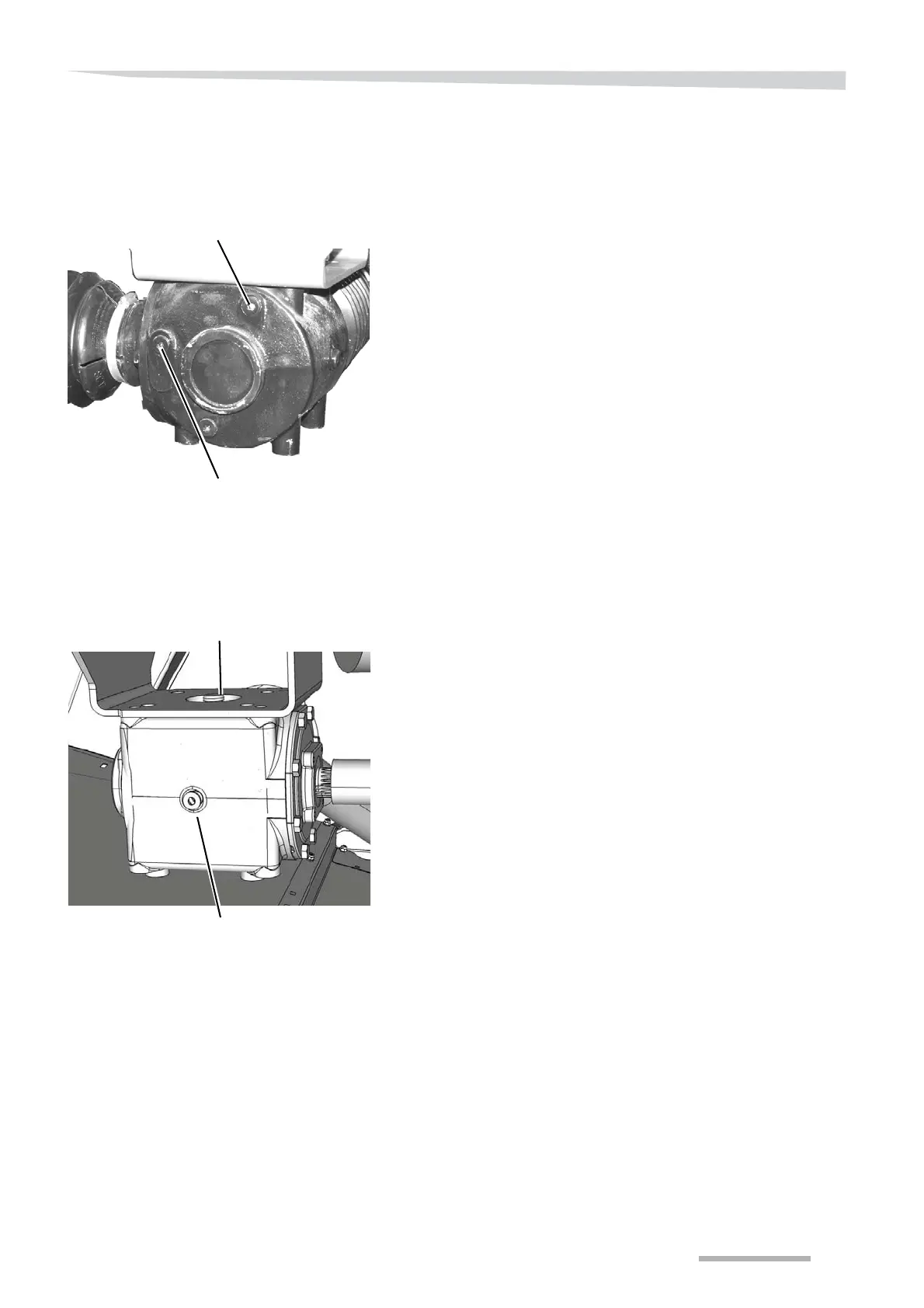

Centre gear
Checking the oil level
Every 80 hours of use
CT model only
Type 1
»Maintenance intervals« page 79
The oil level is checked as follows:
Remove oilplug 2.
Check that the oil reaches the edge of the hole for oilplug 2.
When topping up, remove oilplug 1.
Fill the oil through the hole for oilplug 1.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 2.
Fit oilplugs 2 and 1 and tighten them.
»Lubricants« page 170
Type 2
»Maintenance intervals« page 79
The oil level is checked as follows:
Remove oilplug 2.
Check that the oil reaches the edge of the hole for oilplug 2.
When topping up, remove oilplug 1.
Fill the oil through the hole for oilplug 1.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 2.
Fit oilplugs 1 and 2 and tighten them.
»Lubricants« page 170
