Maintenance
96
Swivel hitch
Checking the oil level
Every 80 hours of use
»Maintenance intervals« page 79

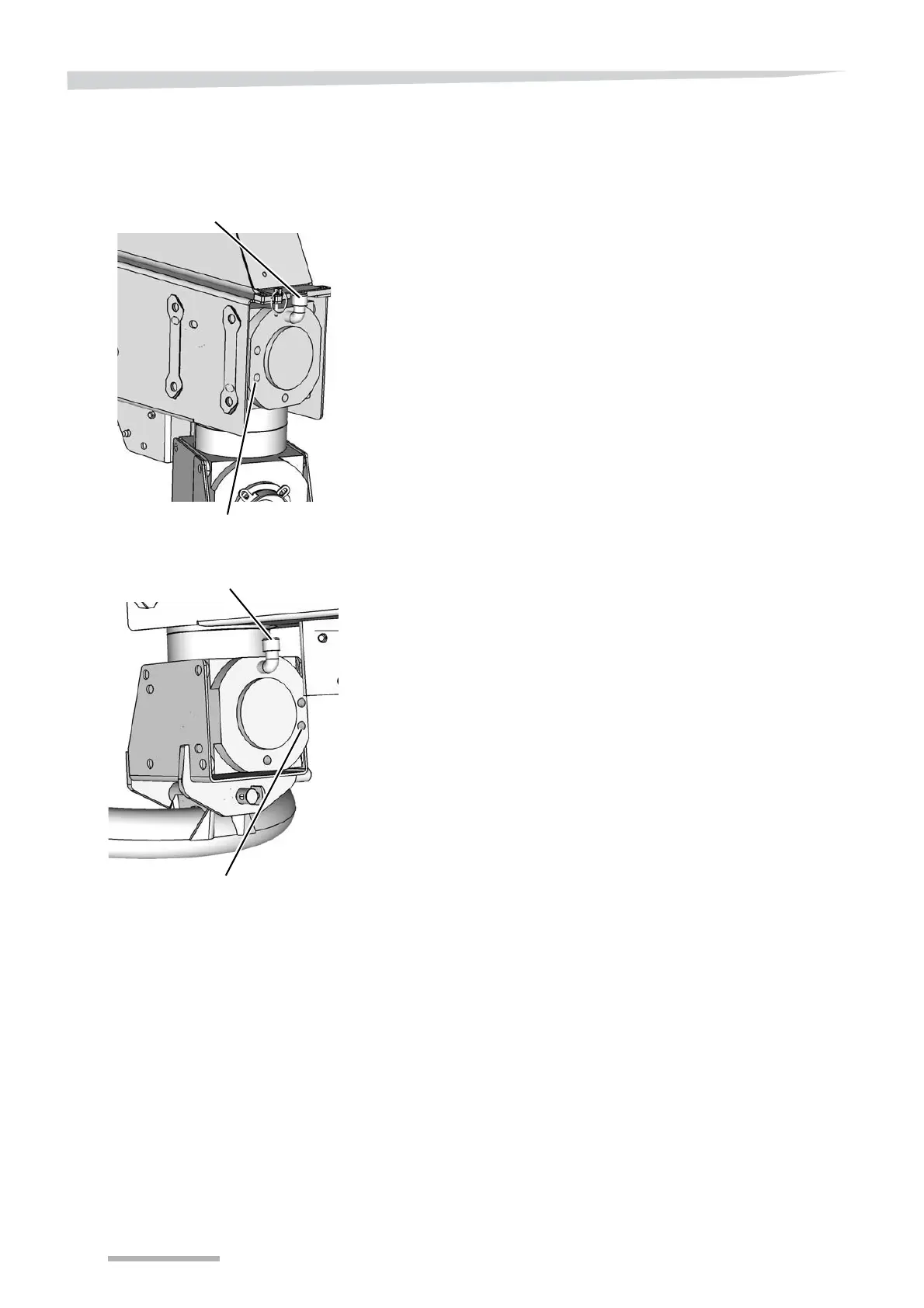

The oil level is checked as follows:
The upper part of the swivel hitch
Remove oilplug 2.
Check that the oil is filled all the way up to the hole.
When topping up, remove oilplug 1.
Fill the oil through the hole for oilplug 1.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 2.
Fit oilplugs 1 and 2 and tighten them.
»Lubricants« page 170
The lower part of the swivel hitch
Remove oilplug 5.
Check that the oil is filled all the way up to the hole.
When topping up, remove oilplug 4.
Fill the oil through the hole for oilplug 4.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 5.
Fit oilplugs 4 and 5 and tighten them.
»Lubricants« page 170
