The swivel gear's rpm can also be checked by observing the gear's
pivot joint.
Check the swivel gear in the following way:
Observe the gear's profile in the middle of the swivel gear.
• If the swivel gear's profile on the lower part of the swivel gear is
wide, the machine should be run at a rotational speed of 1000 rpm.
• If the swivel gear's profile on the lower part of the swivel gear is
narrow, the machine should be run at a rotational speed of 540
rpm.
Number of revolutions on
the PTO outlet
1000 rpm
From the factory the machine is adapted to tractors that run at 1000
rpm on the PTO.
540 rpm
If the machine is to be fitted to a tractor's PTO shaft running at 540
rpm, the following procedure must be followed:
Remove the PTO shaft.

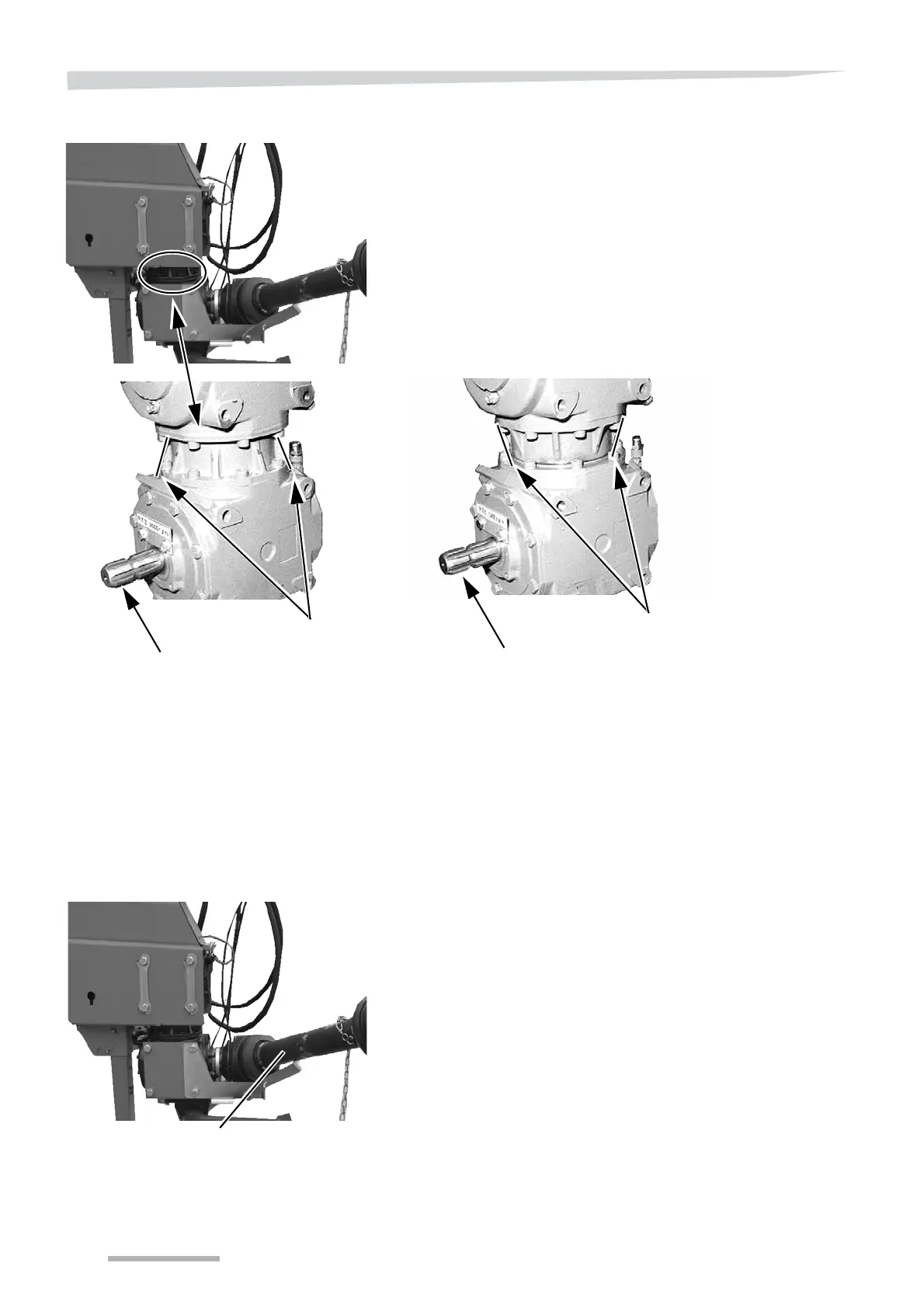

Wide profile
Narrow profile
The rotational speed of the tractor's
PTO outlet = 1000 rpm.
The rotational speed of the tractor's
PTO outlet = 540 rpm.
