Assembly - attachment
49
Left-hand side
R model

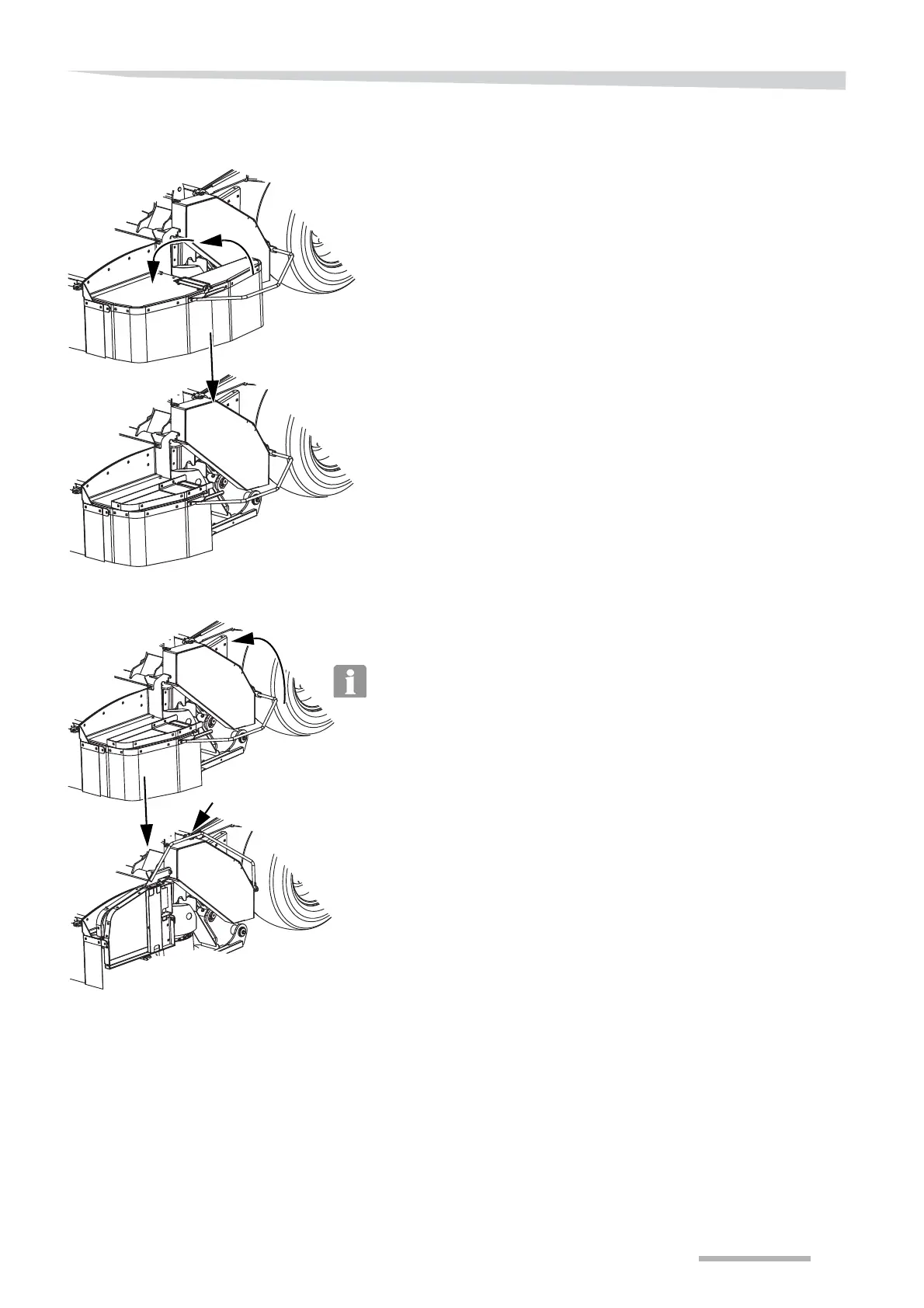

 Swivel the guard round as shown.
 Take hold of the bar and lift the guard up as shown.
 Secure the guard with the linchpin.
If the side guard is in the transport position, the machine must not be
started.
