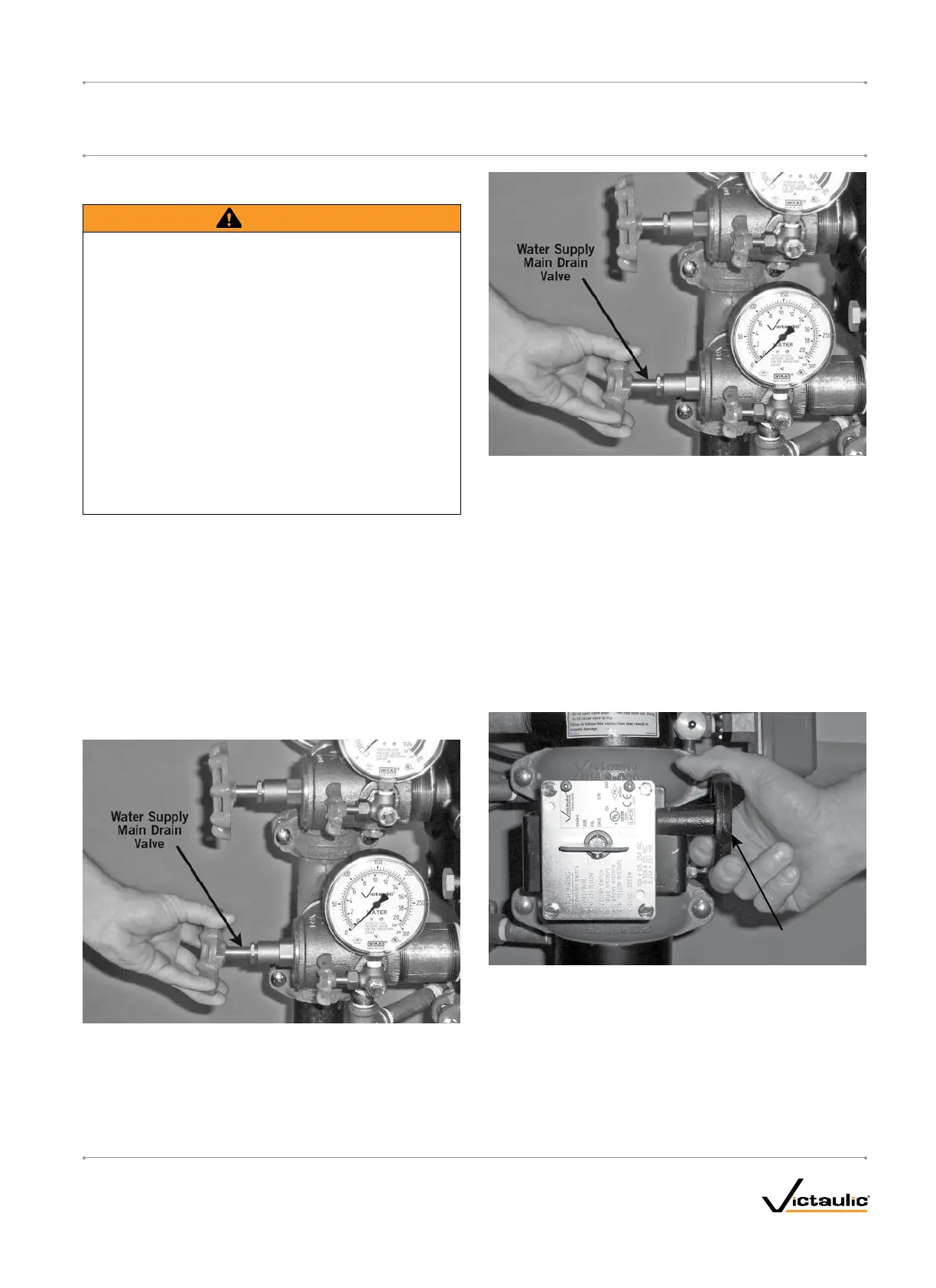

FULLOPERATIONAL(TRIP)TEST
WARNING
Thebuildingownerortheirrepresentativeisresponsiblefor•
maintainingthefireprotectionsysteminproperoperating
condition.
Toensurepropersystemoperation,valvesmustbeinspected•
inaccordancewithcurrentNFPA-25requirementsorin
accordancewiththerequirementsofthelocalauthorityhaving
jurisdiction(whicheverismorestringent).Alwaysrefertothe
instructionsinthismanualforadditionalinspectionandtesting
requirements.
Thefrequencyofinspectionsmustbeincreasedinthe•
presenceofcontaminatedwatersupplies,corrosive/scaling
watersupplies,andcorrosiveatmospheres.
Depressurizeanddrainthepipingsystembeforeattemptingto•
install,remove,adjust,ormaintainanyVictaulicproducts.
Failuretofollowtheseinstructionscouldcausesystemfailure,
resultingindeath,seriouspersonalinjury,andpropertydamage.
Victaulic recommends the full operational (trip) test every 3 years (at
minimum). NOTE: The frequency of the full operational (trip) test must
be increased in the presence of contaminated water supplies, corrosive/
scaling water supplies, and corrosive atmospheres. This test allows a
full flow of water into the sprinkler system; therefore, this test must be
performed when there is no chance for freezing conditions. In addition,
the authority having jurisdiction in the area may require full operational
(trip) tests on a more frequent basis. Verify these requirements by
contacting the authority having jurisdiction in the affected area.
1. Notify the authority having jurisdiction, remote station alarm
monitors, and those in the affected area that the full operational
(trip) test will be performed.
2. Record the water supply pressure and system air pressure.
3. Open the water supply main drain valve fully to flush the water
supply of any contaminants.
4. Close the water supply main drain valve.
5. Open the remote system test valve (inspector’s test connection) to
simulate the operation of a sprinkler.
6. Record the following:
6a. Time between opening the remote system test valve
(inspector’s test connection) to the operation of the dry valve
6b. System air pressure when the valve operated
6c. Time from opening the remote system test valve (inspector’s
test connection) to when water flows from the test
connection’s outlet
6d. All information required by the authority having jurisdiction
7. Confirm that all alarms operate properly.
8. Continue to run water until it is clear.
Water Supply Main
Control Valve
9. Close the water supply main control valve.
I-768_27
FireLockNXT™DryValve
SERIES768
I-768INSTALLATION,MAINTENANCE,ANDTESTINGMANUAL
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2007 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
REV_D
