Victor CUTMASTER User Manual

CUTMASTER 35MM
INTRODUCTION Manual 0-5082
2-2

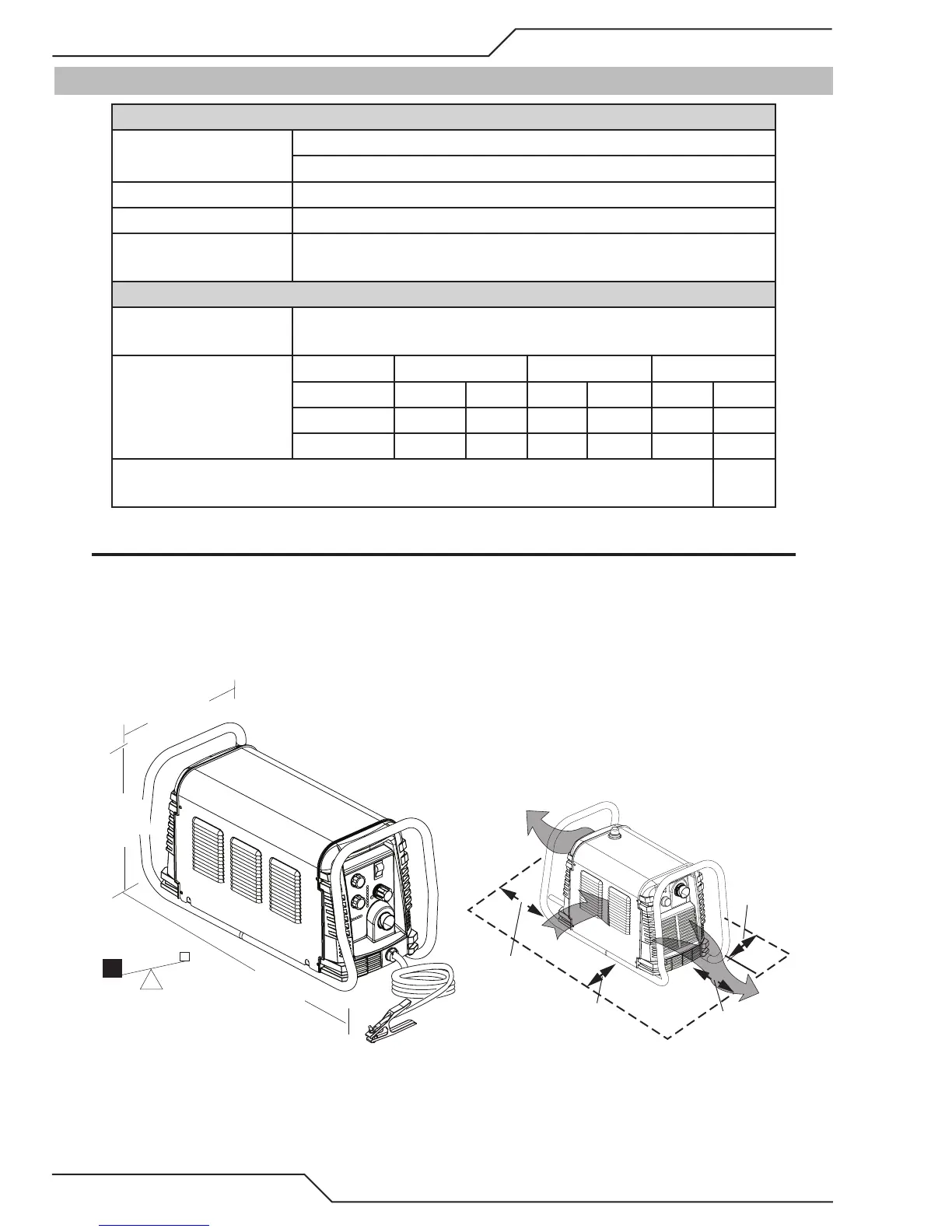

2.04 Power Supply Specifications
CutMaster 35mm Power Supply Specifications
Input Power
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 100 Amps, Continuously Adjustable
Power Supply Gas
Filtering Ability
Particulates to 5 Microns
CutMaster 35mm Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units
Duty Cycle 60% 80% 100%
Ratings IEC CE IEC CE IEC CE
Current 100A 80A 70A
DC Voltage 120 112 108
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low
or the output voltage (DC) is higher than shown in this chart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These speci-
fications include calculating an output voltage based upon power supply rated current. To facilitate
comparison between power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
30.5"
774.7 m
63 lb / 28.6 kg
10.75"
273 mm
16.375"
416 mm
Art # A-08358
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
