CUTMASTER 35MM
Manual 0-5082
SERVICE
5-1
SECTION 5 SYSTEM:
SERVICE
5.01

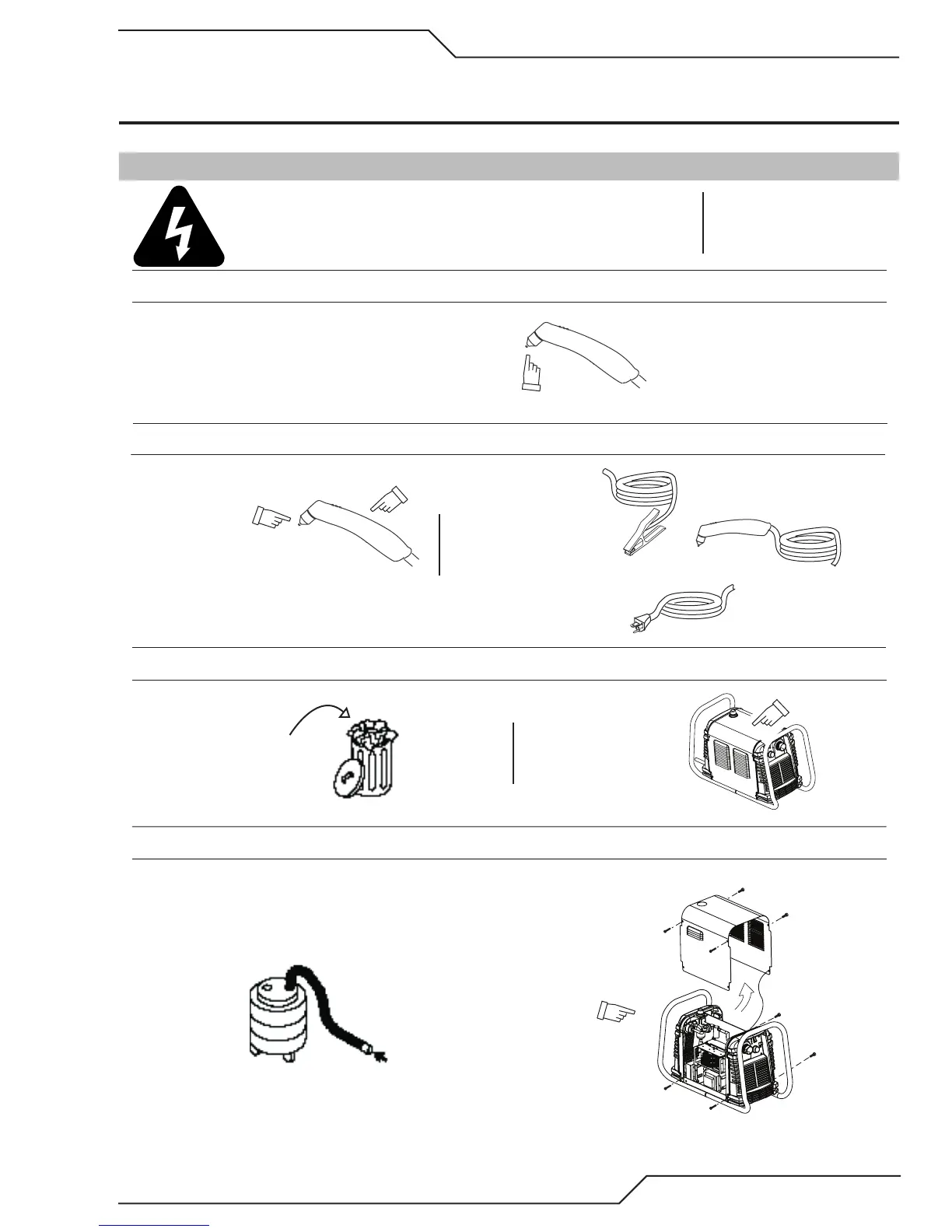

General Maintenance
W
arning!
Disconnect input power before maintaining.
Each Use
Visual check of
torch tip and electrode
W
eekly
Visually inspect the torch body tip,
electrode, start cartridge and shield cup
Visually inspect the
cables and leads.
Replace as needed
3 Months
Clean
exterior
of power supply
6 Months
Replace all
broken parts
Visually check and
Carefully clean the
interior
Maintain more often
if used under severe
conditions
