Victory Spa Tonga - Electric system connection.

Outside installation connection.
A. Water supply system connection.
- Cabin is equipped with valves cutting off water and filters located on shower base frame. After cabin installation,
connect filter outputs and thermostatic battery output using supplied hoses.
- Connect hoses supplying hot and cold portable water to valve terminals (1/2½) according to markings on filters:
O Red - hot water
O Blue - cold water
Draw supply hoses here
Connect filter outputs
with thermostatic battery
inputs

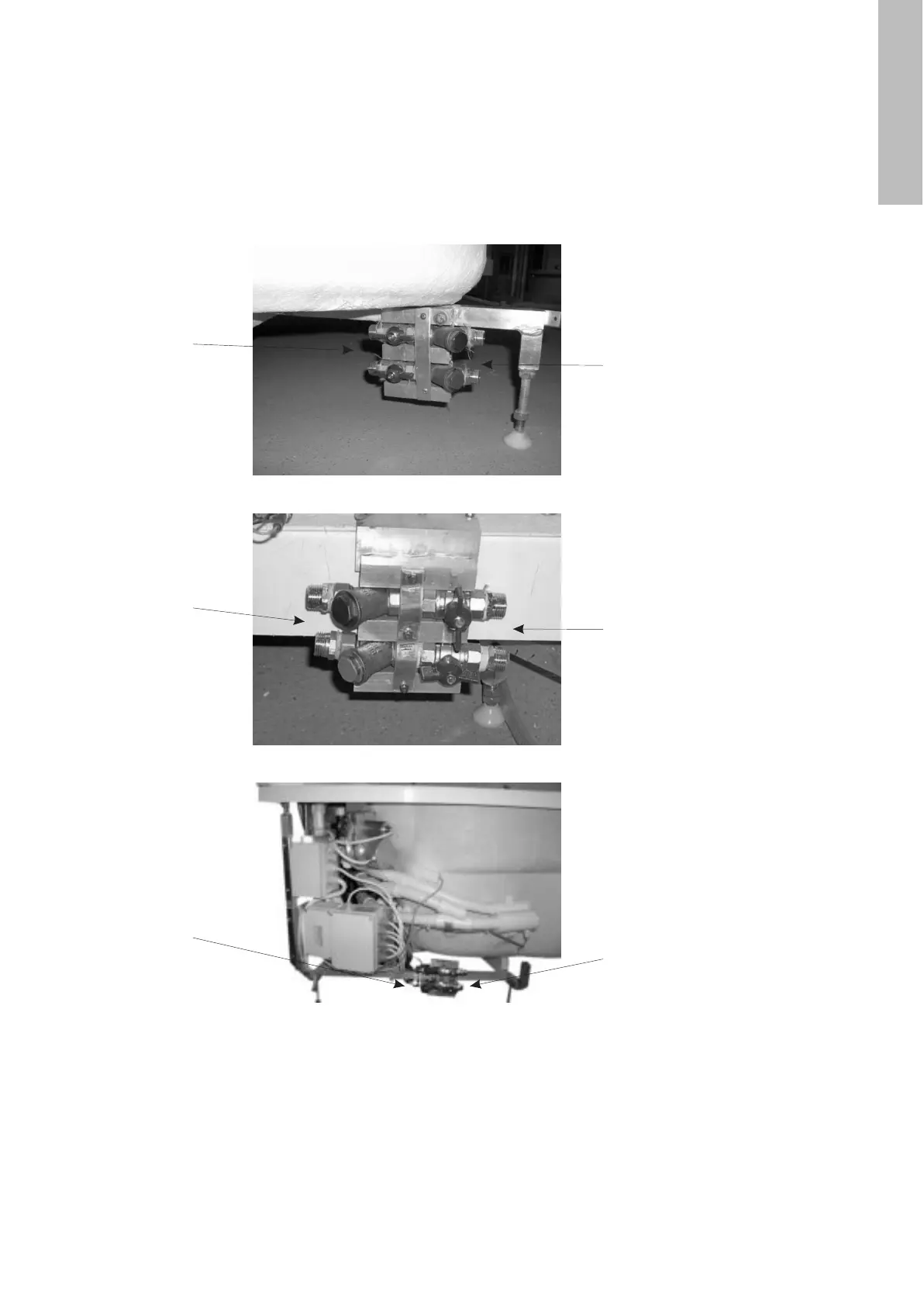

Connection of water supply filters (Orinoco, Mississipi)
Connection of water supply filters (Amazon)
Connection of water supply filters (Galapagos)
b. Sewage system connection.
Realise sewage system connection in a standard way f50 mm connection.
Draw supply hoses here
Connect filter outputs
with thermostatic battery
inputs
Draw supply hoses here
Connect filter outputs
with thermostatic battery
inputs
