c. Connection of electric system earth conductors.
Connect earth conductor terminals on a shower base frame in a clearly indicated place:
- Control box earth
- Battery earth
- Steam generator frame earth.
NOTE! Aluminium cabin frame needs to be grounded.

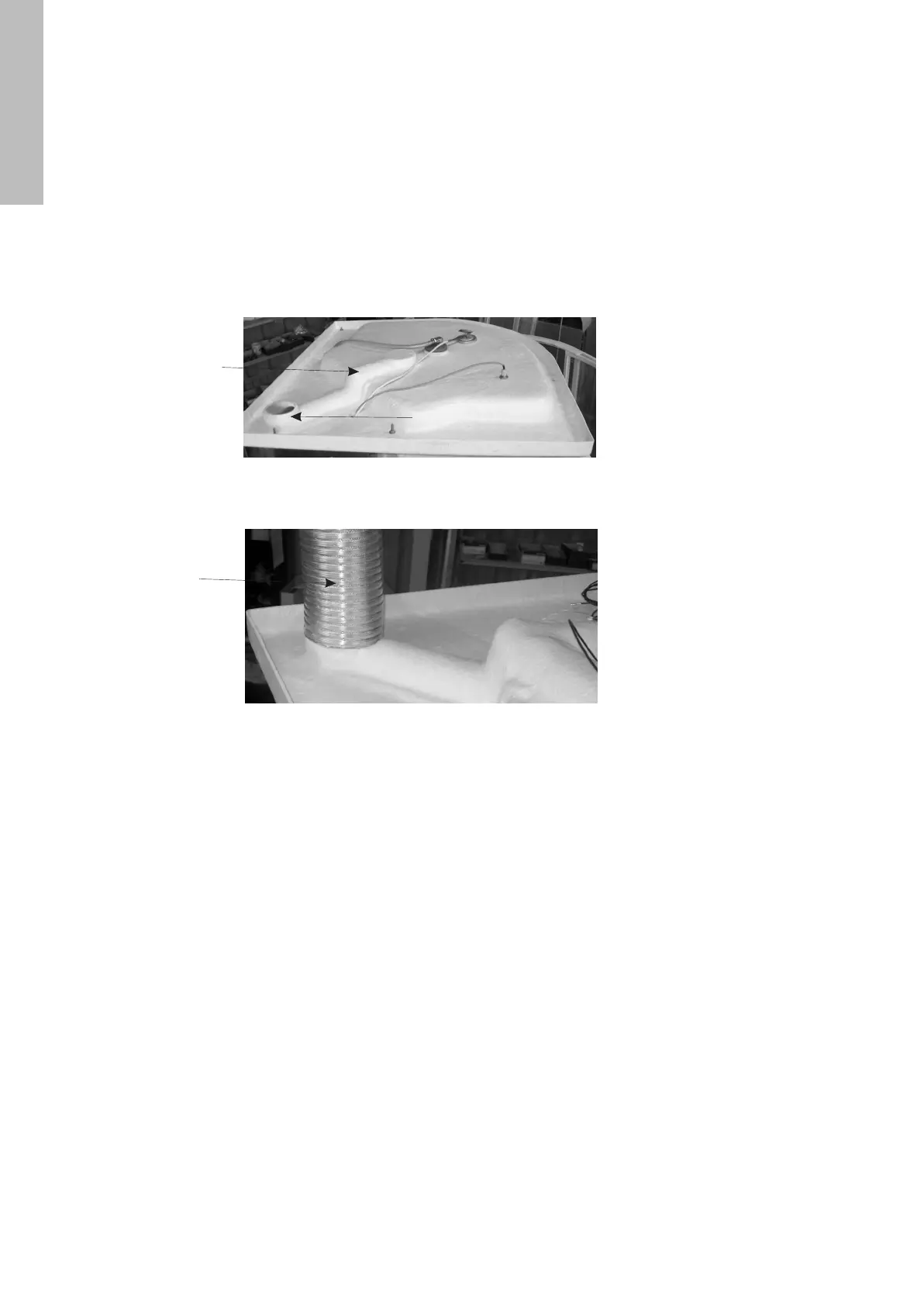

d. Ventilation system connection.
Ventilation grating (or gratings) placed in the top of the cabin connects with air duct shown beneath on the
photo.
e. Electric system connection.
Electric system connection needs to be realised according to EN-60335-1 standard. It should be realised in a
permanent way, i.e. end of power supply cable cannot end as a plug and then be connected to socket.
A) Amazon, Mississipi, Orinoco, Cassiopeia
The following type of equipment needs to be used in this installation:
- 16A fuse (Mississipi), 20A fuse (Orinoco, Amazon, Cassiopeia)
- two - polar switch
2
- 3x2,5 mm power supply cable
- electric switch-gear protected with various-current switch of In0,03A.
Note! Cabin is equipped with a power supply cable of the following colours:
- L phase cable : brown
- N zero cable : blue
- protecting cable : yellow-green.
b) Galapagos
Attention! A cabin is equipped with power leads of the following colours:
a) 1 phase connection:
phase wire L : brown
zero lead N : blue
safety lead : yellow-green.
b) multi-phase connection:
phase wires L : black or brown with proper numbers
zero lead N : blue
Safety lead : yellow-green.
Elastic sewer f100mm
The outlet of
the air duct
The air duct
On the air duct's outlet should be put the sewer with diameter f100mm like on the photo below. Connection should
be secured with a clamp. The sewer should be connected to domestic ventilation system.
