Building over of the tub.
The building-in structure has to guarantee the easy access to the whirlpool components in case of after
sales service and also the proper ventilation of the space under the bath. The manufacturer guarantees
the fulfillment of the above conditions by proposing two types of solutions:
? with the acrylic masking panel - possible to remove - installation of the panel is done by its
placement behind the top edge of the tub.
The advantage of acrylic panel is easy access to the massage appliances which are under the tub.
The tub should be leveled in such a way that the gap between the panel and the floor of the room is
min 2 cm. This way the constant flow of air is provided and the massage appliances are ventilated.
? using the suggested "HydroPanel" construction. See details in a separate instruction.
Installation of the front panel

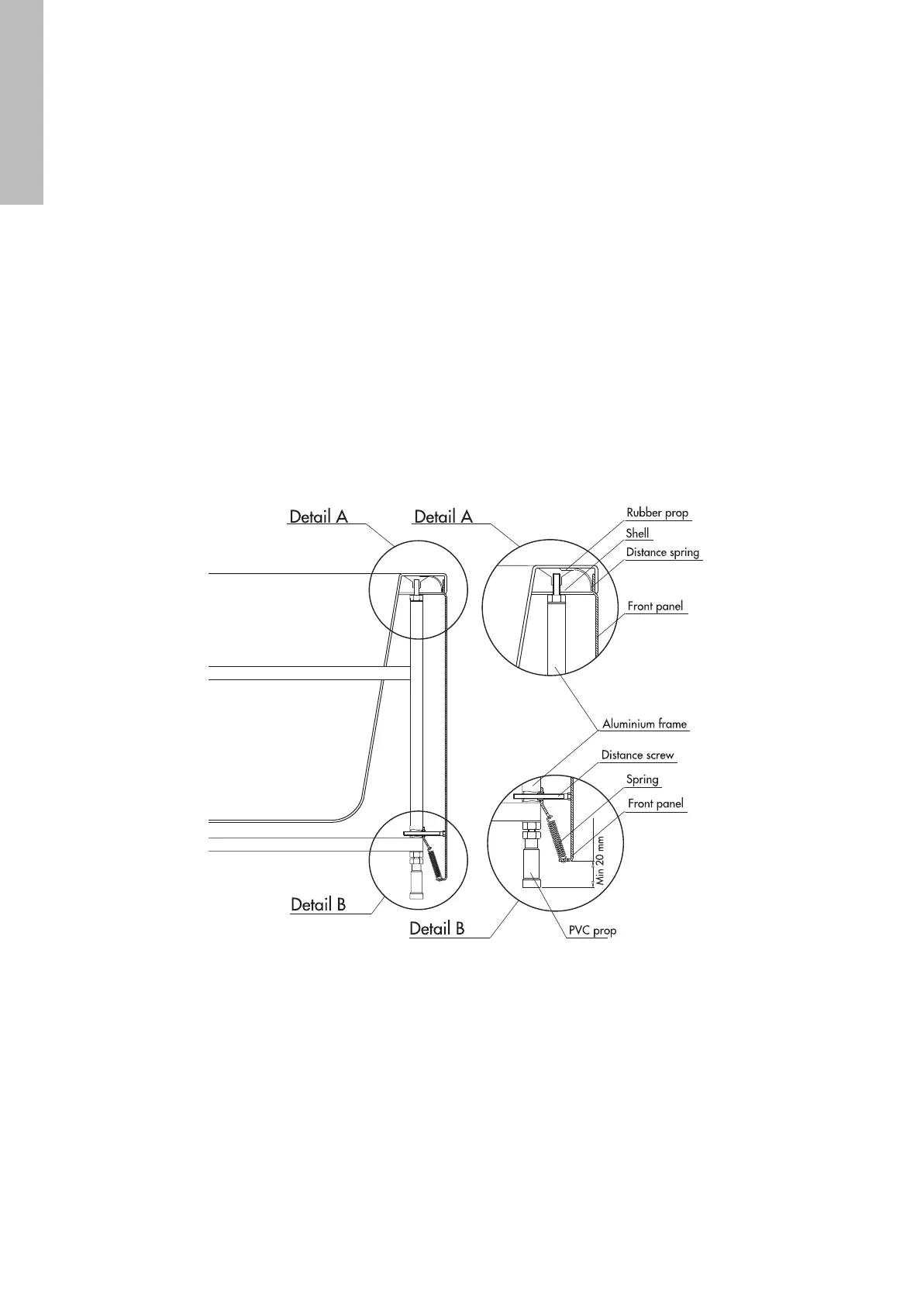

? fit small pressing-down springs as presented on the figure below,
? place the top edge of a panel under the top rim of the tub.
Note! The covering panel for Barbados baths has feet. In order to install the panel:
? slide the upper edge of the panel under the bath top,
? regulate the height of the panel feet.
In other cases of special form of building over, the following should be considered:
? ventilation of the area under the tub,
? free access to massage system devices (nozzles, pipes, air pump, water pump) the tub shall be taken
out from a tub enclosure or have an inspection opening.
4
ENGLISH
