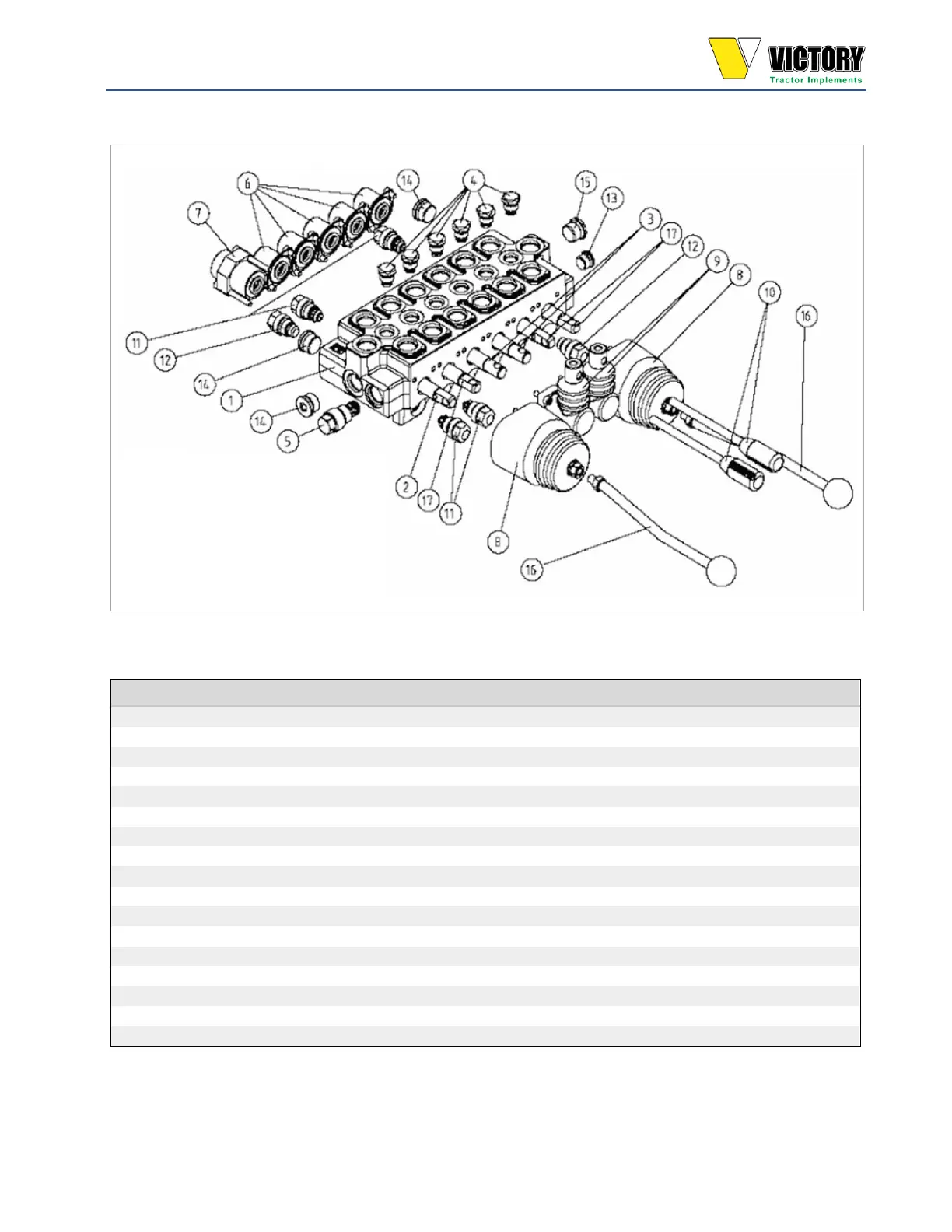

VICTORY Backhoe Exploded View; Hydraulic Control Valve BH6
Parts Hydraulic Control Valve BH6
Pos.:
Part number:
Description:
Qty:
1
11560B1
Valve body
1
2
10308-38-HDJ
Double-acting float spool 3S
1
3
10709-38
Double acting spool 1S
2
4
10261-4S
Load holding check valve
6
5
10900-4K
Main relief valve – set on 152 bar
1
6
10270-4S
Spool Control 9
5
7
10281-4S
Spool Control 11
1
8
11007-3S
Spool Control S6-RF Heavy Duty
2
9
10266-4S
Spool Control S5
2
10
10347-4S
Hand lever for 55 L=175 mm
2
11
10425-4S
Port relief valve, set on 131 bar
4
12
10426-4S
Anti cavitation valve
2
13
612006-M
Plug SAE #6 with sealing
1
14
612006-M
Plug SAE #8 with sealing, P1, P3, T3
3
15
612010-M
Plug SAE #10 with sealing T1
1
16
11008-4S
56 Joystick Lever (L=145 mm)
2
17
10709-38-HDJ
Double-acting Spool 1S
3
