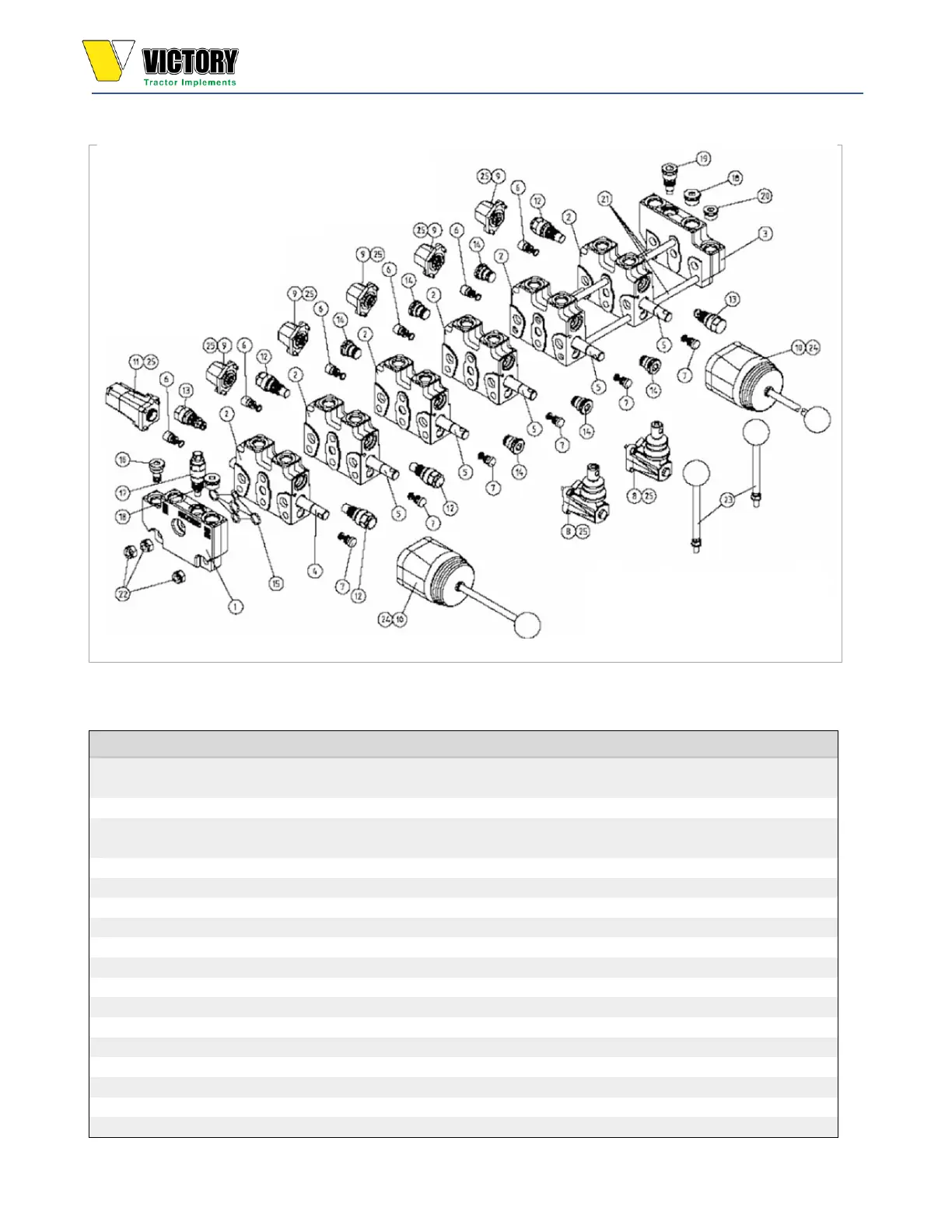

VICTORY Backhoe Exploded View; Hydraulic Control Valve BH7
Parts Hydraulic Control Valve BH7
Pos.:
Part number:
Description:
Qty:
1
10149
10139
Inlet body
Alternating inlet body
1
2
11032-1B
Work section body
6
3
10156
10140
Outlet body
Alternating outlet body
1
4
78-4061
Float spool
1
5
48-5599
Double acting spool
5
6
65-5507-A
Load hold check A-side
6
7
65-5547-B
Load hold check B-side
6
8
25-40103
Extended lever 55
2
9
65-4141
Spool control 9
5
10
14812-35
Mech RH Joystick
2
11
65-40284
Spool control 11
1
12
65-5541
Port relief valve
4
13
65-5503
Anti cavitation valve
2
14
45-5504
Port Relief Cav. Plug
6
15
65-5611
Suction sealing
7
16
10142
Unload cav. plug
1
17
45-4429
Main relief valve
1
