WARNING
Specific care and attention must be taken when making the battery connections. Correct polarity must be
confirmed with a multimeter before connection. Connecting a battery with incorrect polarity will destroy the
device and is not covered by warranty.

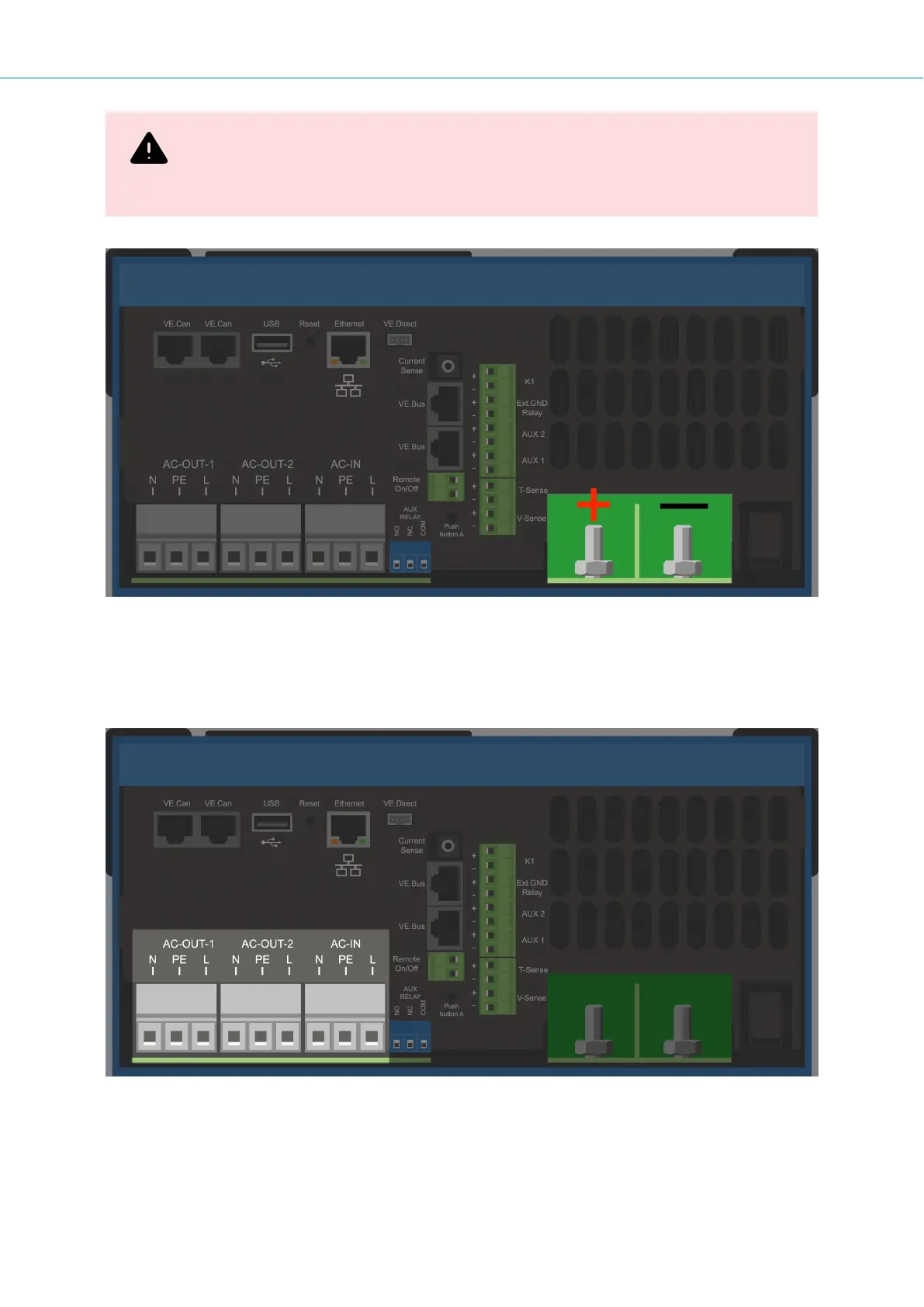

• Undo the two screws at the bottom of the enclosure and remove the service panel.
• Connect the battery cables. First the - cable then the +. Be aware that there may be a spark when making the battery connec-
tions.
• Tighten the nuts to the prescribed torques for minimal contact resistance.
9.4. Connection of the AC cabling
MultiPlus-II GX
15
