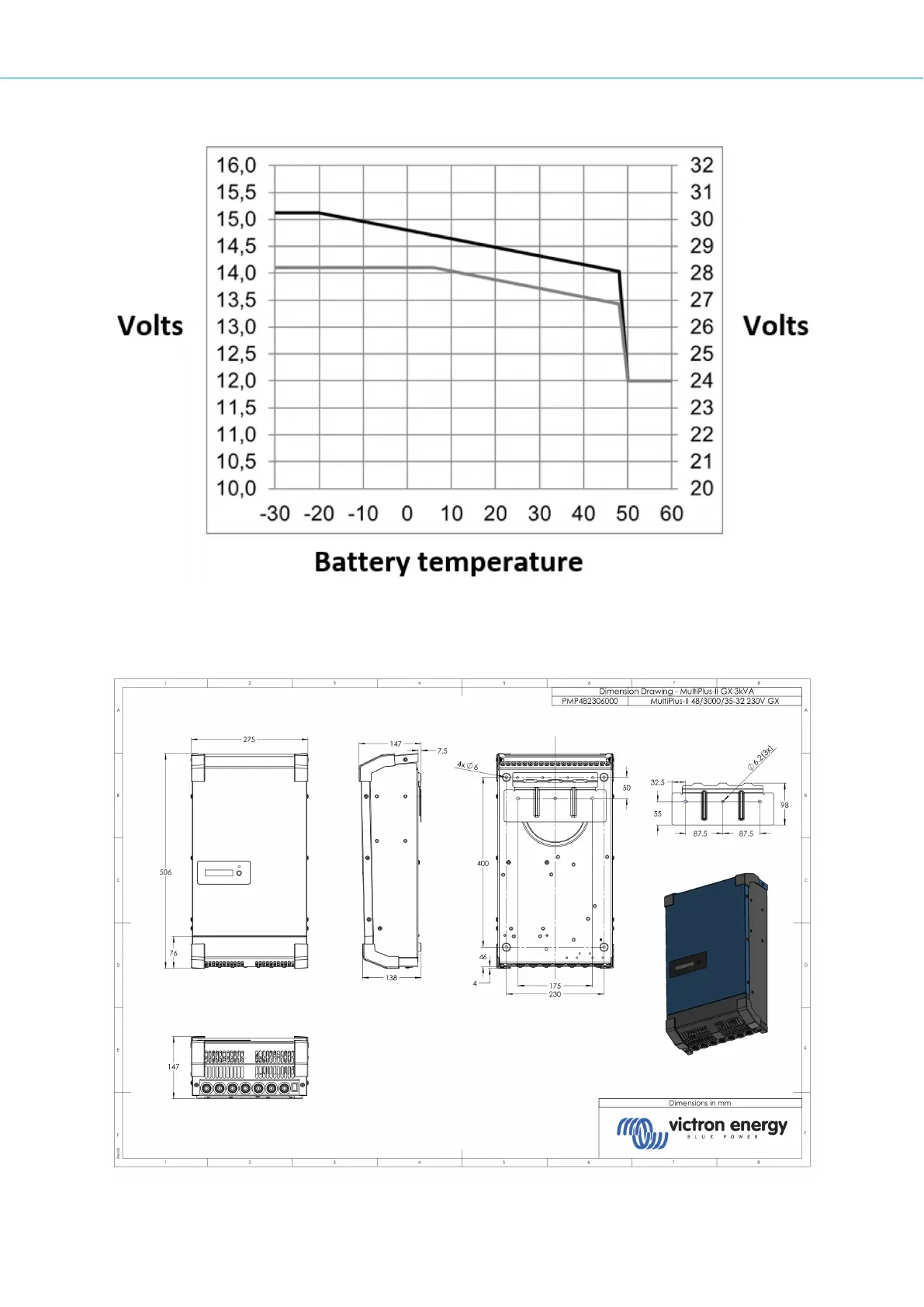

15.6. Appendix F : T
emperature Compensation
Default output voltages for Float and Absorption are at 25 °C. Reduced Float voltage follows Float voltage and Raised Absorption
voltage follows Absorption voltage. In adjust mode temperature compensation does not apply
.
15.7. Appendix G : Dimensions
MultiPlus-II GX
32
31
