SETTING UP A VPN CONNECTION
We have tested the VPN connection using a Fritz!BOX modem router 7390. The Art.2220 must be connected to the same LAN of
the 7390 and must have an IP address of the same network class. It is expected that the installer knows how to setup a router like
the 7390.

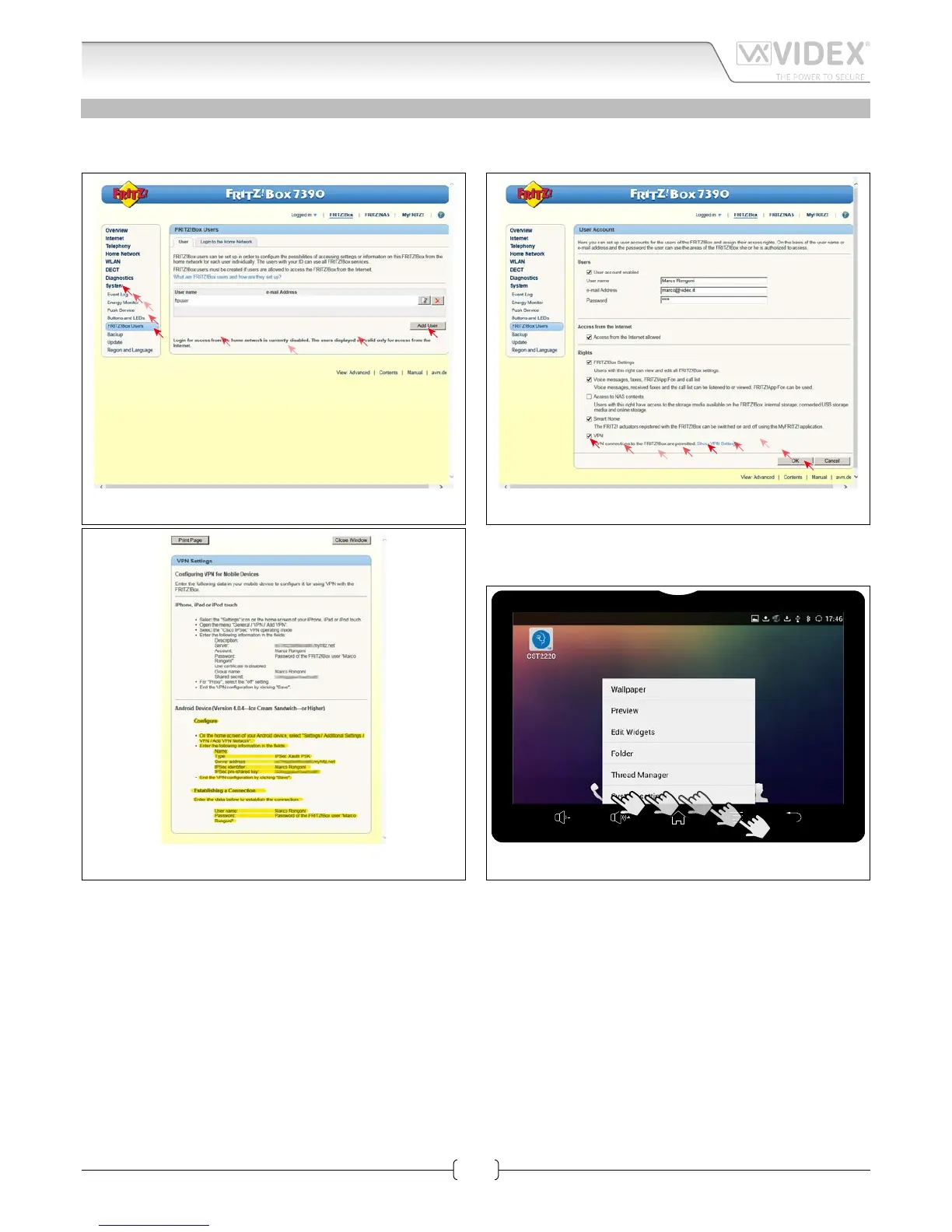

Fig. 62 Access the router, go to the page FRITZ!Box Users then add
a user
Fig. 63 Edit all user parameters then enable vpn connection then
click on “Show VPN Settings”.
Fig. 64 Print the VPN settings that will be used to set a VPN prole
on the concierge station CST2220
Fig. 65 press the options button then tap on “System settings”
Art.CST2220 VX2200 IP Concierge Station GUI instruction sheet
