Art.CST2220 VX2200 IP Concierge Station GUI instruction sheet
THE STATUS AREA
The status area is the only area that is not interactive and pro-
vides information on current call activity and outstanding tasks.
When the unit is in conversation, this area is reduced to show
only essential icons.
A
Indicates call from door panels to be processed.
B
Indicates communication between two concierge units.(not
implemented yet);
C
An indication of alarm signals from apartments.;
D
An indication of calls from apartments;
E
A status indicator of the communication with the serv-
er: white cross on red background in case of fault or white
check sign on green background for good communication.
A B C D E

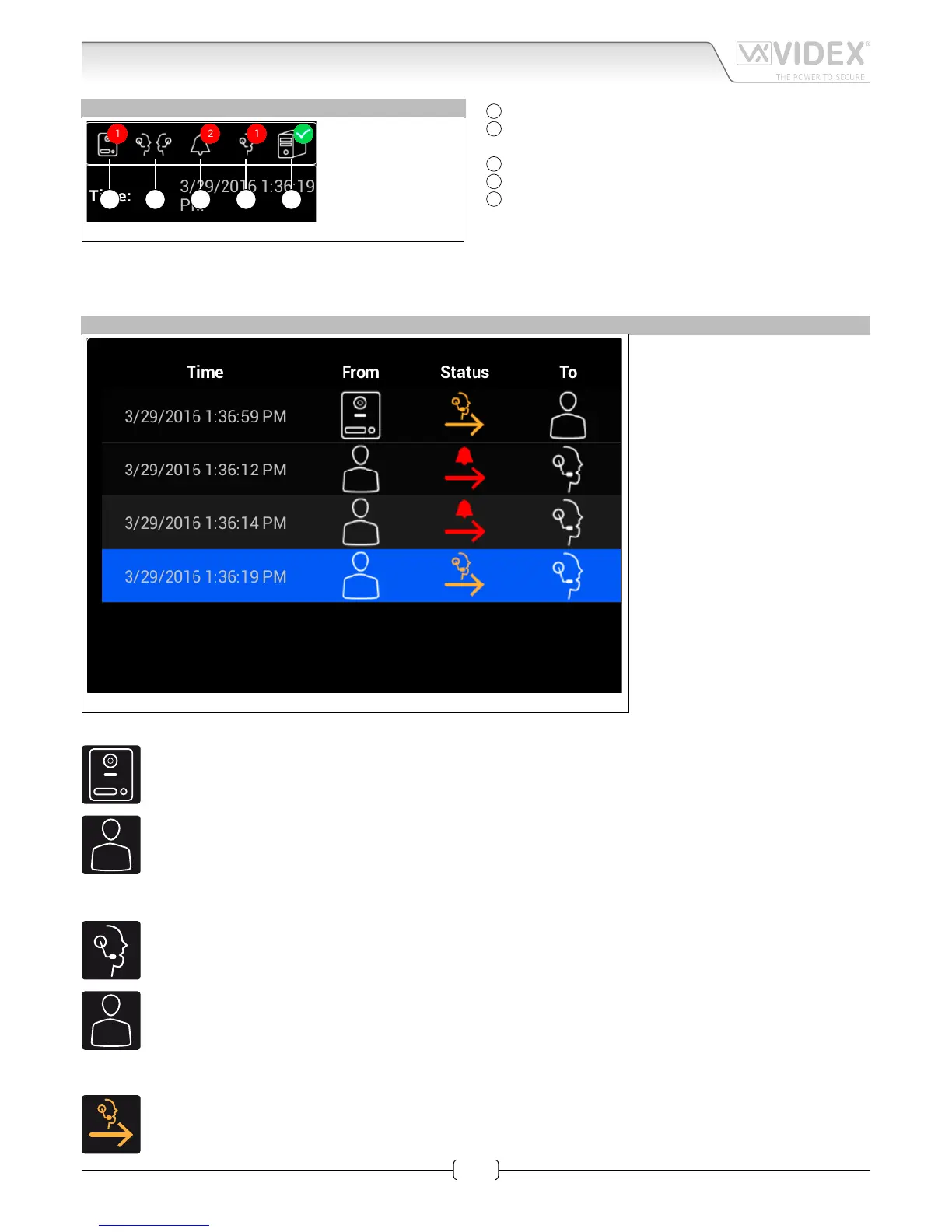

Fig. 3 The STATUS AREA
THE SYSTEM MANAGEMENT AREA
The content of this area depends on
the selection made through the call
management buttons.
This gure shows the content when the
“Call List” button is pressed: it shows all
incoming calls to the system, showing
the date & time of the call, the source
of the call, the type of the call and the
destination.
When selecting the function “Call Door”
or “Call Apartment”, this area will show
the “Doors” or the “Apartments” rele-
vant to the currently selected Art.2220.
When the system is in conversation,
this area shows the video (Art.2220 vid-
eo version).
When the “Call List” button is selected
(standard operation), this area shows
all the call active for the complete in-
stallation. (all the VX2200 digital sys-
tems connected to the concierge).
The column “From” can show the following symbol:
when the source of the call is the door panel;
when the source of the call is the apartment;
The column “To” can show the following symbol:
when the call destination is the concierge unit;
when the call destination is the apartment.
The status column can show the following symbols:
When a call is passed to the concierge and awaiting processing;
Fig. 4 The SYSTEM MANAGEMENT AREA - Call List selected
