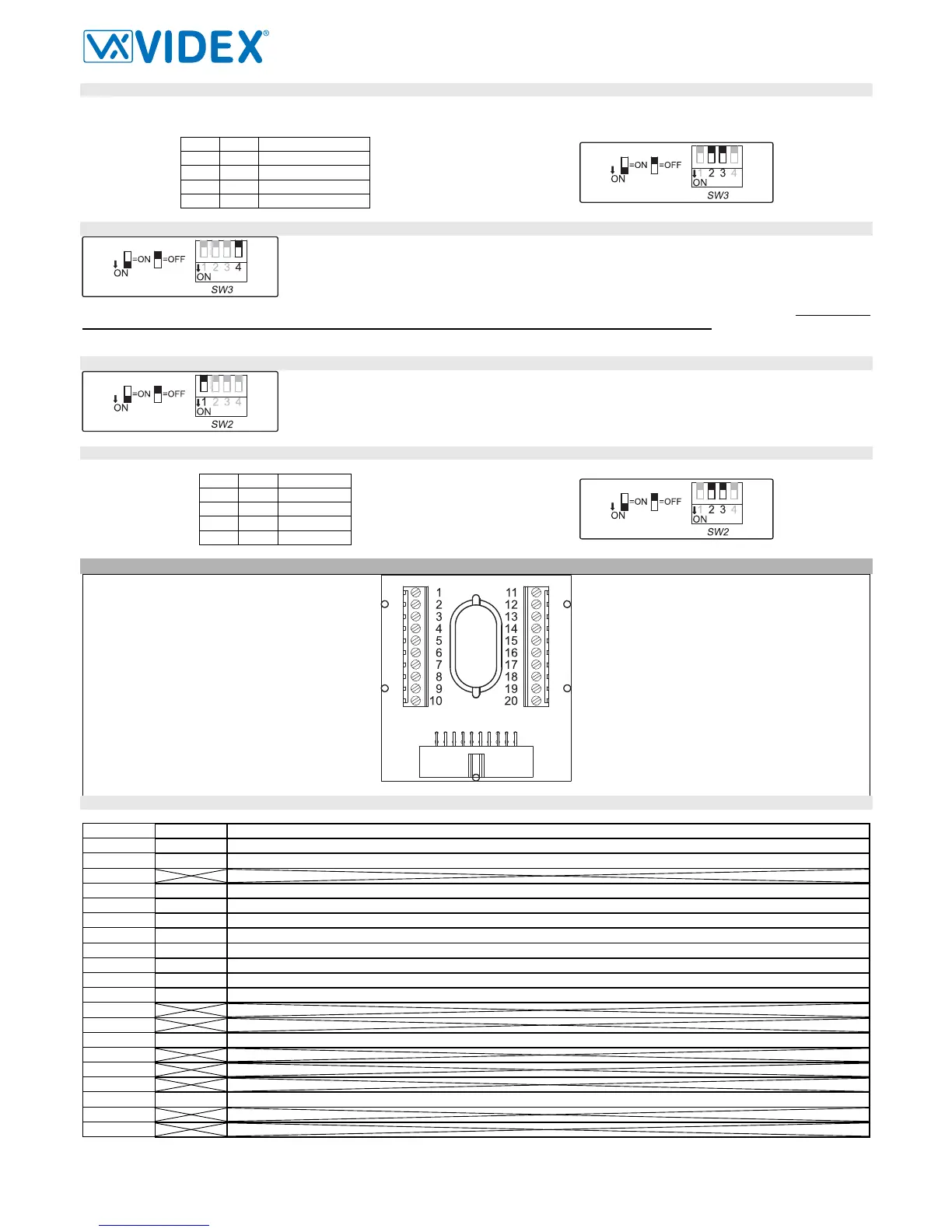

VX2300 2 Wire Video Digital System
PrtCode:VX2300_2_9.doc – Pag.19 08/03/2011 Rev.2.9
EXTENSION NO – SW3.2..3
If the intercommunication between apartments is enabled (switch 1 of SW3 = ON) leave these two switches in default position (both to OFF). Otherwise,
if the intercommunication is between the same apartment (switch 1 of SW3 = OFF), set the extension addresses starting always from 1. During the ex-
ternal call, all video monitors in the same flat will ring but the video will be shown only from the videmononitor with extension address 1.
2 3 Extension No.
OFF OFF 1 (default, master)
ON OFF 2 (slave)
OFF ON 3 (slave)
ON ON 4 (slave)
SLAVE MODE - SW3.4
This set up concerns the answering mode of the video monitor when there is more than one unit (max 4) in the
same apartment. OFF (default) = during a call, only the video monitor with extension 1 (master) will show the
video. ON = the video monitor will be switched on independently of the extension address: in this case the vid-
eo monitor must be supplied locally using a power supply Art.2321 and connecting respectively BUS+ to termi-
nal 14 and BUS- to terminal 11 of the pcb connection board provided with the Art.5980 (the local power supply
is required for each black & white slave videophone or starting from the third slave videophone when are used all colour videophones). If you set ON
this switch for one slave videophone, you must set ON the same switch also for the relevant master videophone.
PRIVACY UNLIMITED – SW2.1
If this switch is set to OFF (default), the privacy duration is defined by switches 2 and 3.If this switch is set to
ON, the privacy duration is unlimited and the service can be enabled or disabled only by the privacy button.
PRIVACY DURATION – SW2.2..3
This set up requires that switch 1 is set to OFF.
2 3 Duration
OFF OFF 15 minutes
ON OFF 1 hour
OFF ON 4 hours
ON ON 8 hours
VIDEOMONITOR CONNECTION BOARD ART.5980
Fig.3
SIGNAL ON CONNECTION TERMINALS
Terminal Signal Description
1 GND
Ground
2 BUS1
Bus input
3
4 BUS2
Bus input
5 S1 Terminal controlled by the S1 button, close to GND until the button is pressed
6 LED
Auxiliary LED power supply input (12Vdc)
7 S2 Terminal controlled by the S2 button, close to GND until the button is pressed
8 GND
Ground
9 GND
Ground
10 LB
Local bell input (active low)
11 GND
Ground
12
13
14 +VAUX
Auxiliary power supply input (to be used when the switch 4 of SW3 is set to ON)
15
16
17
18 AL
Alarm input (not implemented yet)
