Vitodens 200-W B2HA 80 to 100, 285 to 352 Installation
5685 827 - 14
14
Wall Mounting (continued)
Boiler Connections

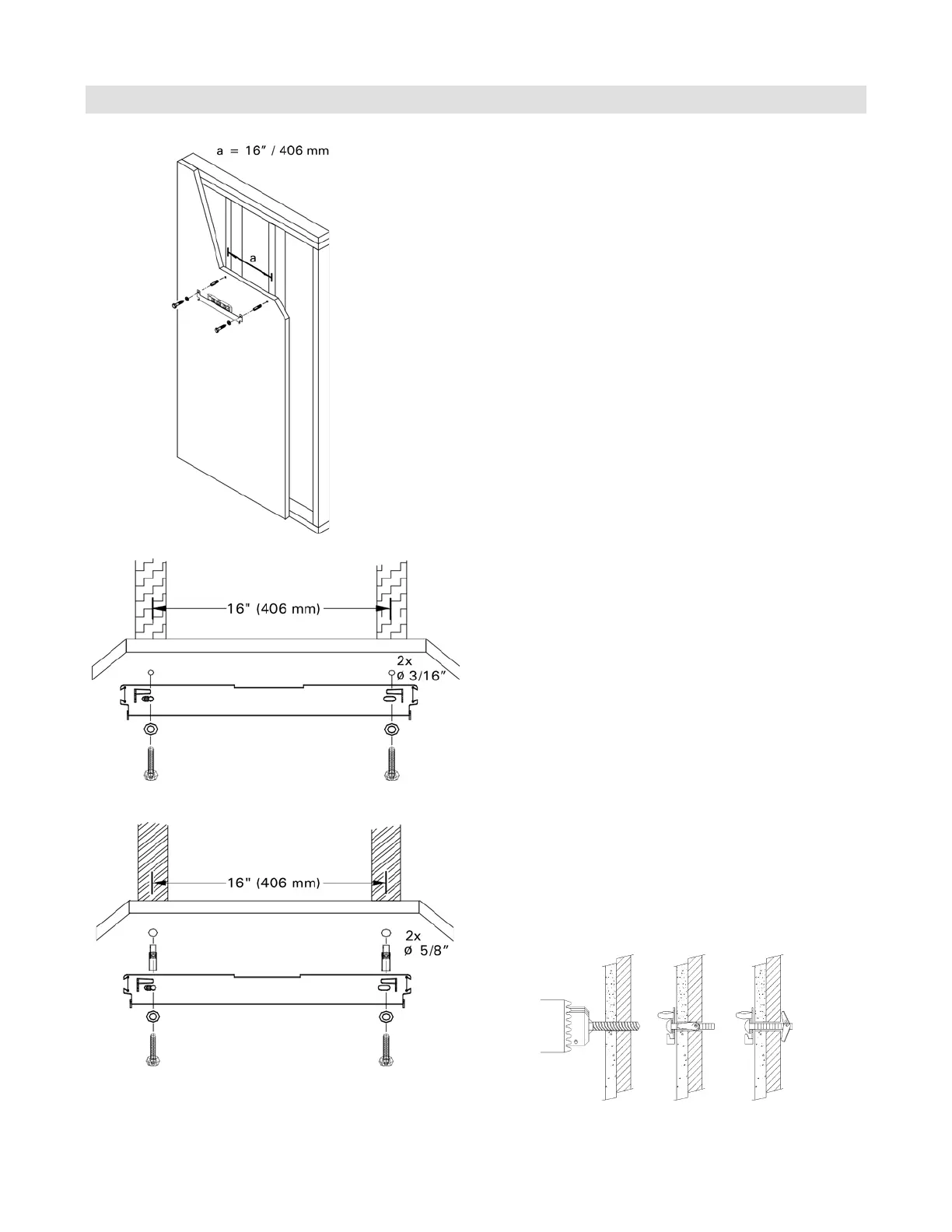

Installation on wood studs
Install mounting bracket on wood studs as per illustration.
Drill
3
/16 in. pilot holes to insert mounting bolts. Ensure
that holes are located in the center of each wood stud.
Secure with bolts to wooden studs as shown.
Installation on metal studs
Install mounting bracket on metal studs as per illustration.
Drill f in. pilot holes to insert anchors. Ensure that holes
are located in the center of each metal stud.
Use fasteners to mount to metal studs (supplied). Secure
with bolts to metal studs as shown. Ensure the mounting
bracket is level.
Boiler mounting bracket
Install the boiler mounting bracket to the wall studs.
Ensure the mounting bracket is level.
To mount on wood or metal studs a cross bar or frame
may be required as reinforcement. The wall and studs
must be capable of supporting a minimum of 220 lb.
(100 kg).
For construction materials, use fixings that are suitable
for 220 lb (100 kg) loads.
