Vitodens 222-F, B2TB 19, 35, 68, 125 Installation

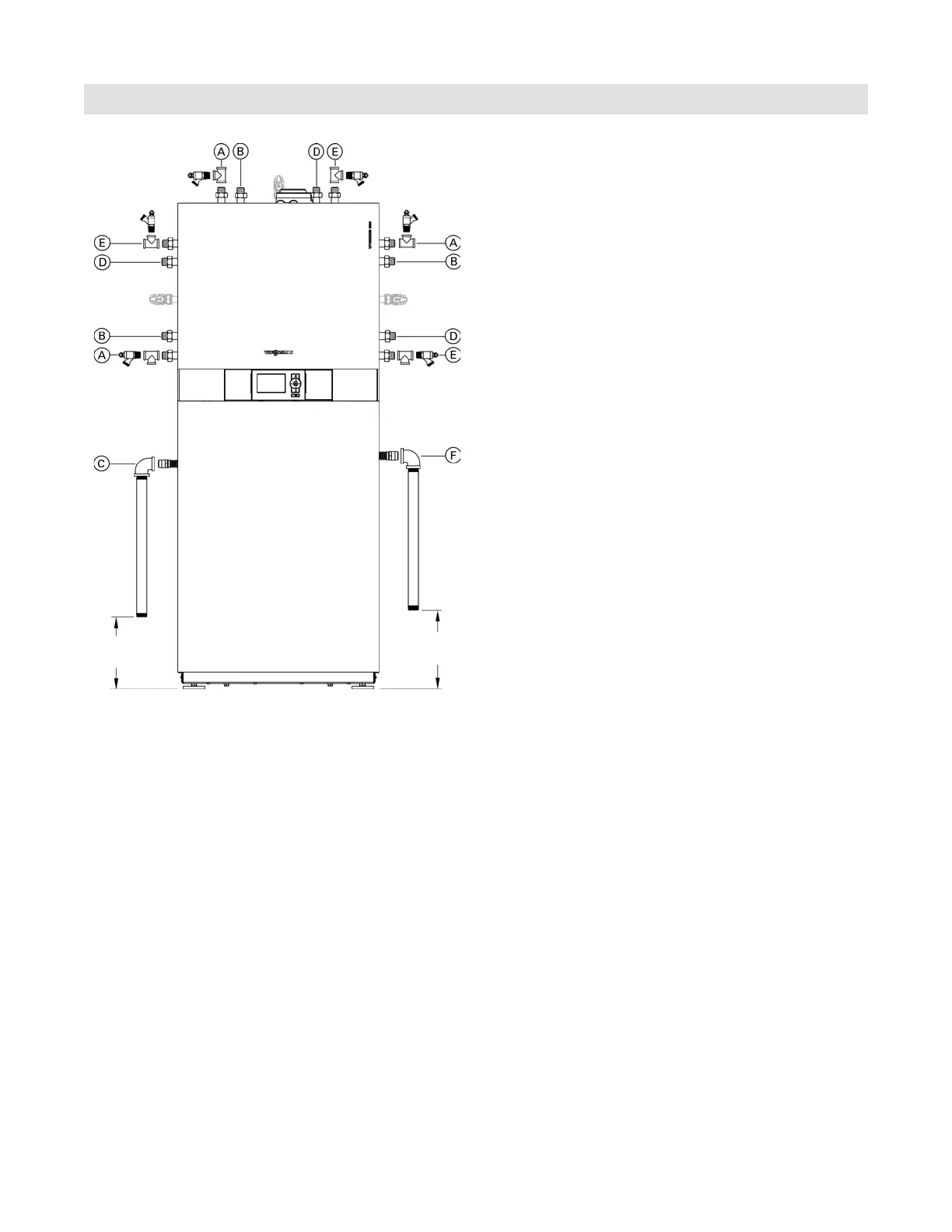

Legend
A Heating supply NPT ¾ in.
B DHW NPT ¾ in.
C Pressure relief valve discharge pipe NPT ¾ in.
D DCW NPT ¾ in.
E Heating return NPT ¾ in.
F Temperature and pressure relief valve discharge
pipe NPT ¾ in.
Connections
Boiler water connection and piping
Use an approved pipe sealant or teflon tape when
connecting the following installation fittings.
This section constitutes an overview only! Refer to
subsequent sections for detailed information on individual
piping connections.
Note: See installation fitting sets on page 58.
Boiler Connections
Min. 6”
(Min. 152 mm)
Min. 6”
(Min. 152 mm)
