Vitodens 222-F, B2TB 19, 35, 68, 125 Installation
Removing the front panels

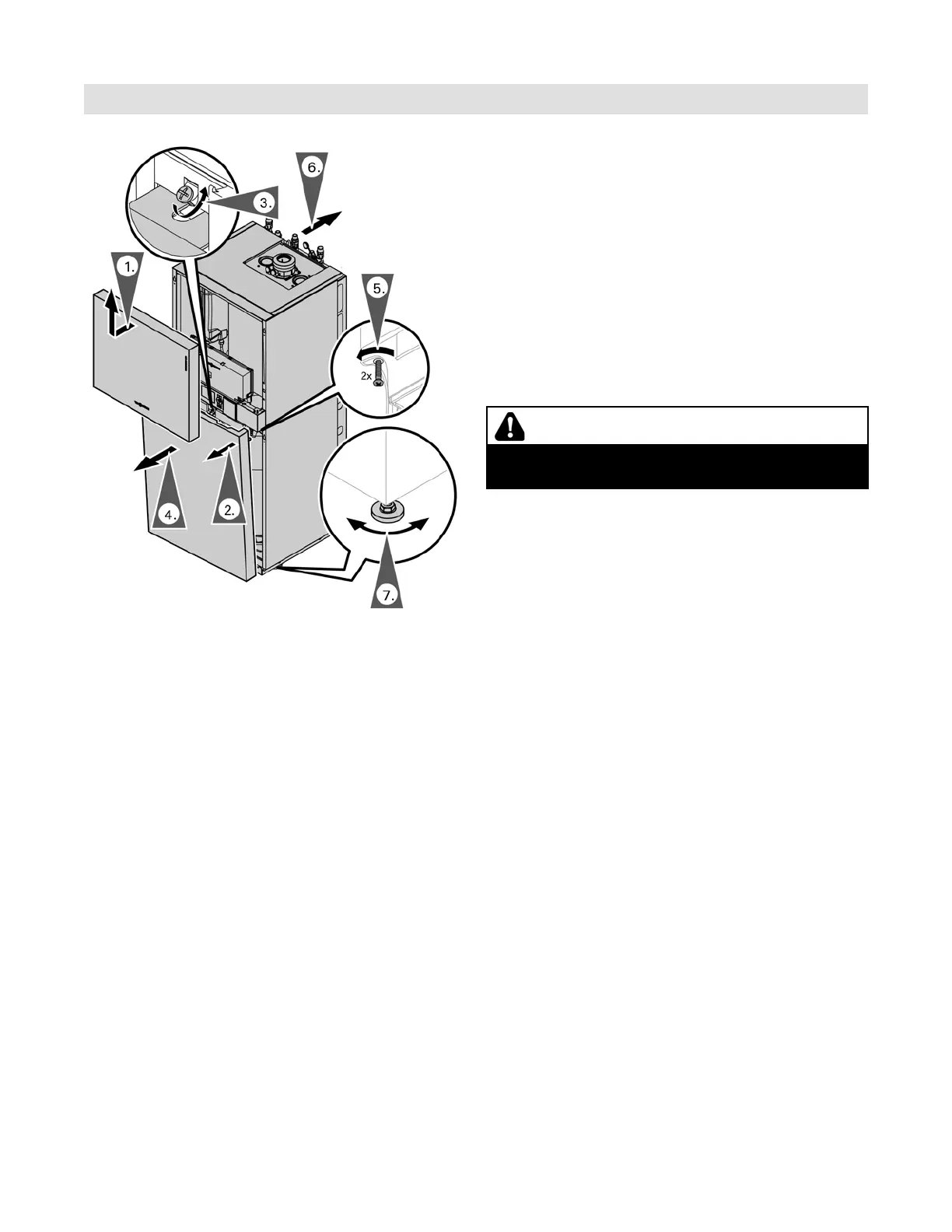

1. Remove the front upper panel.
2. Tilt the lower front panel.
3. Remove the retaining screw and set aside.
4. Lift up and out to remove the lower front panel.
5. Loosen the screws at the bottom of the boiler as
shown (do not remove completely).
6. Move the boiler to the location where it is to be
installed.
7. Using the adjustable legs level the unit.
CAUTION
The boiler must be level both vertically and horizontally
to ensure proper draining of the condensate.
