Vitodens 222-F, B2TB 19, 35, 68, 125 Installation
Control Connections

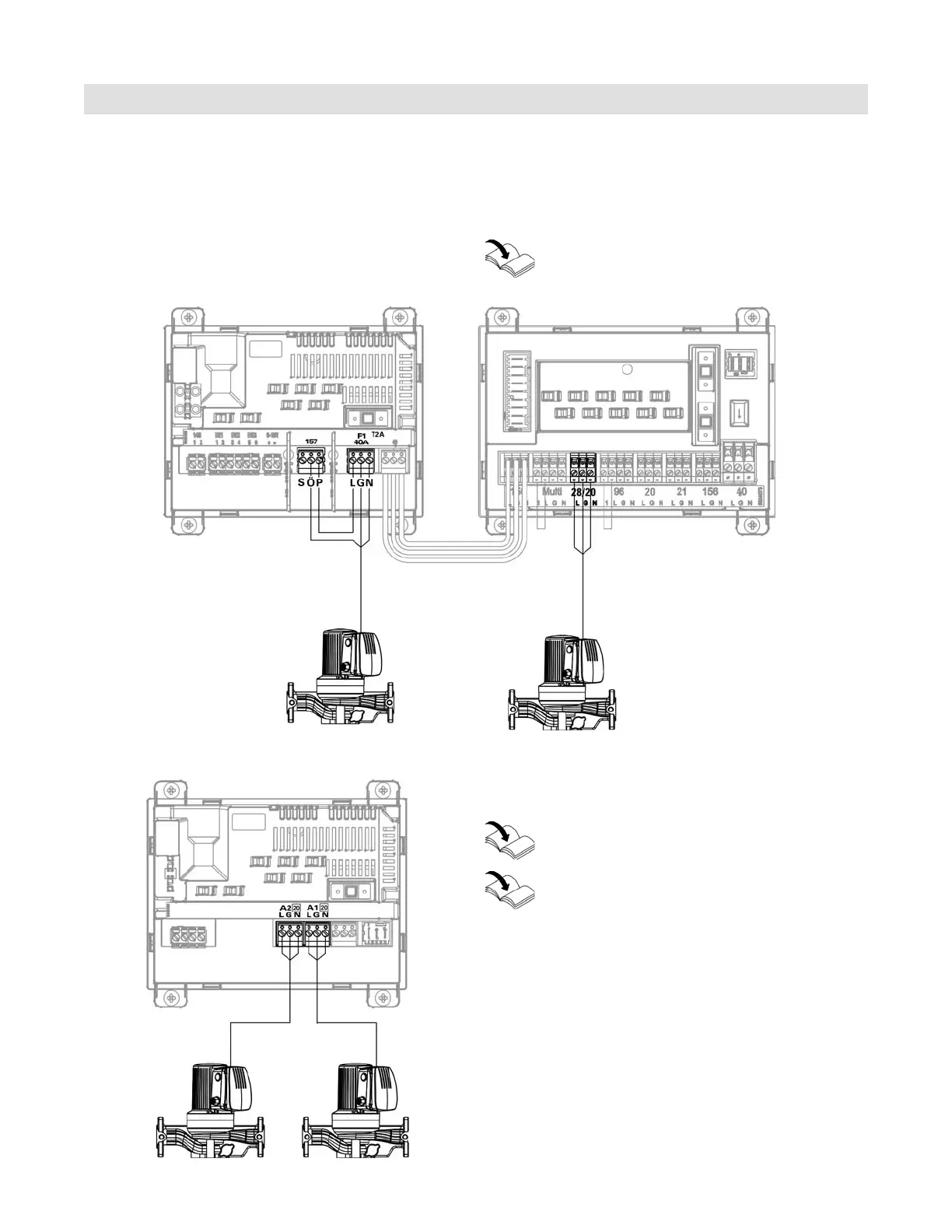

Zone Circuit Pump Connection
Connection to boiler
Pump output assignment is done using the set-up wizard.
A maximum of 2 zone circuit pumps can be connected to
the boiler additional pumps will require the use of an AM1
extension module.
Connection at AM1 (accessory)
Pump output assignment is done using the set-up wizard.
Refer to the boiler Service Instructions for
start-up instructions.
Refer to the boiler Service Instructions for
start-up instructions.
Refer to the AM1 extension module Installation
Instructions for additional details.
