External 0-10 Volt DC Signal Connection

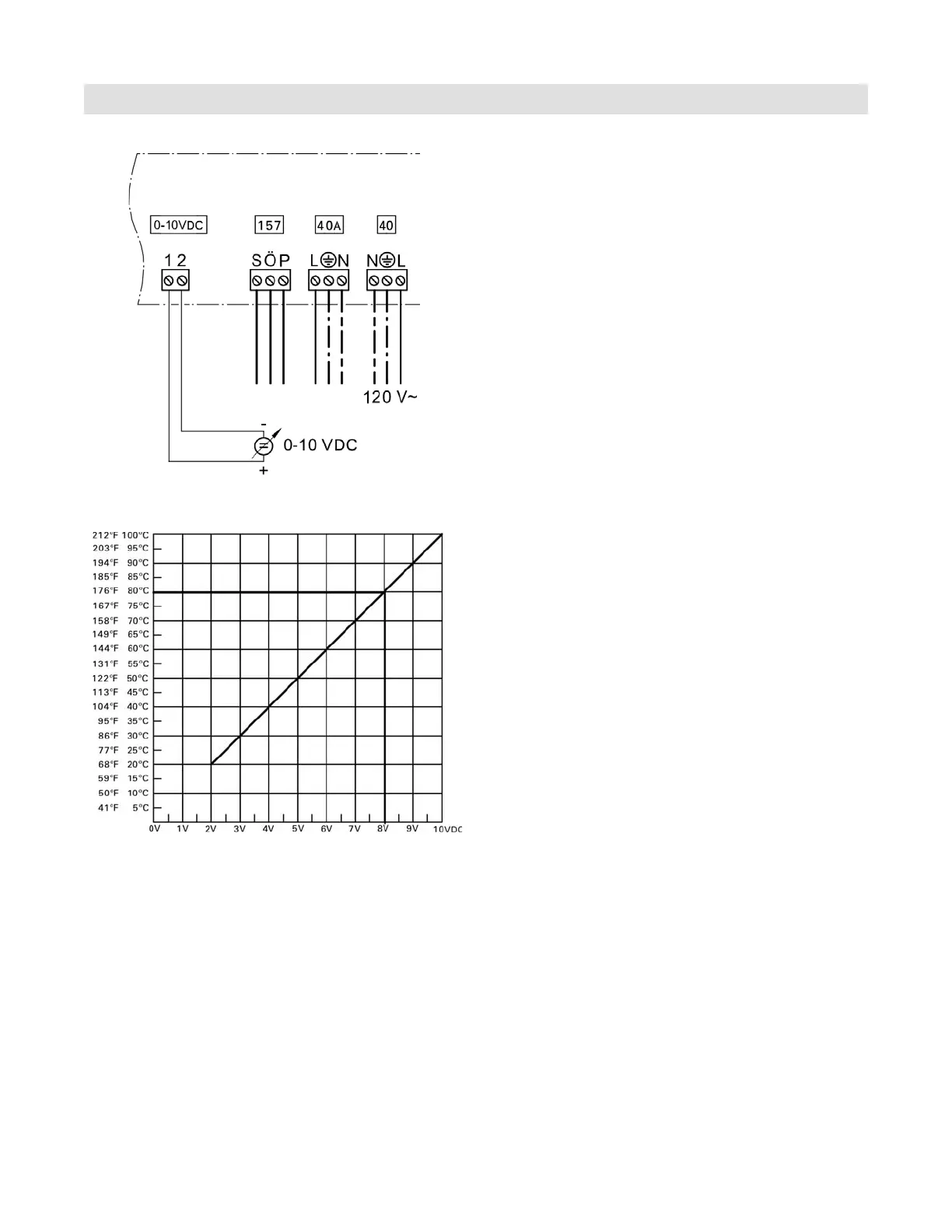

1. Connect the external 0-10VDC signal to plug
0-10VDC located in the external connection
accessory box.
2. Ensure correct polarity.
3. See chart for maximum possible boiler water
temperature and required signal.
