Viessmann B2TF - Routing Connecting Cables;Leads; Closing the Wiring Chamber

26

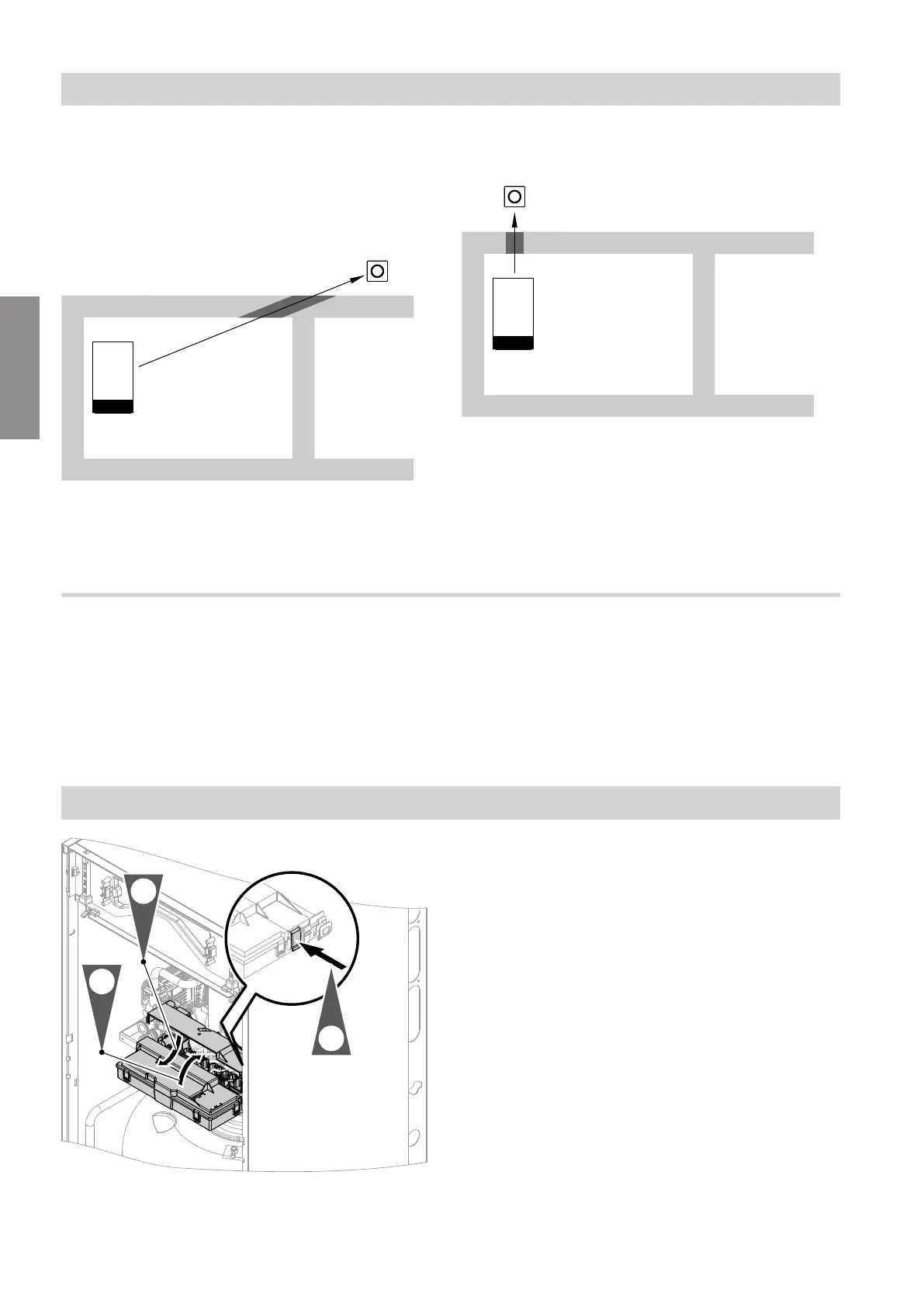

Depending on the angle of penetration, the effective
wall thickness changes and so does the extent to
which the electromagnetic waves are damped.
Flat (unfavourable) angle of penetration
B
A
C
Fig. 20
A
WiFi router
B
Heat generator
C
Wall
Ideal angle of penetration
C
B
A
Fig. 21
A
WiFi router
B
Heat generator
C
Wall
Routing connecting cables/leads
!
Please note
If connecting cables/leads come into contact
with hot components, they will be damaged.
When routing and securing cables/leads on site,
ensure that the maximum permissible tempera-
tures for these cables/leads are not exceeded.
Closing the wiring chamber
1.
3.
2x
2.
Fig. 22
Installation sequence
Electrical connections (cont.)
6151778
Installation
