Check the burner gauze assembly for damage and
contamination. In the event of damage or heavy con-
tamination, replace the burner gauze assembly.
A
B
C
D
E
F
G
4x
H

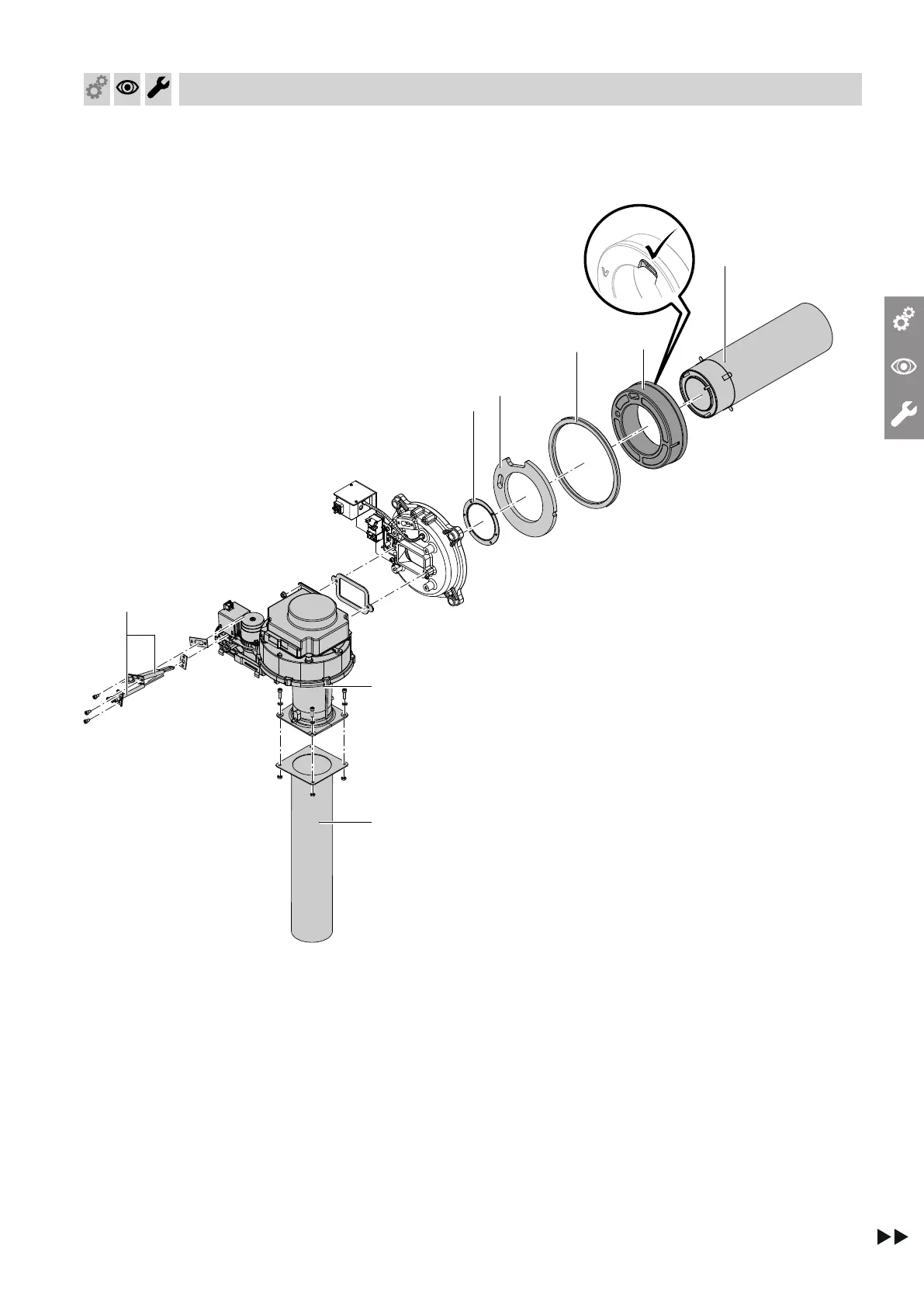

Fig. 13 From 200 kW
A
Ignition and ionisation electrodes
B
Burner gauze assembly gasket
C
Insulation mat
D
Burner door gasket
E
Thermal insulation block
F
Burner gauze assembly
G
Fan
H
Venturi extension, only for open flue operation
1. Remove electrodes.
Commissioning, inspection, maintenance
Checking the burner gauze assembly and thermal… (cont.)
