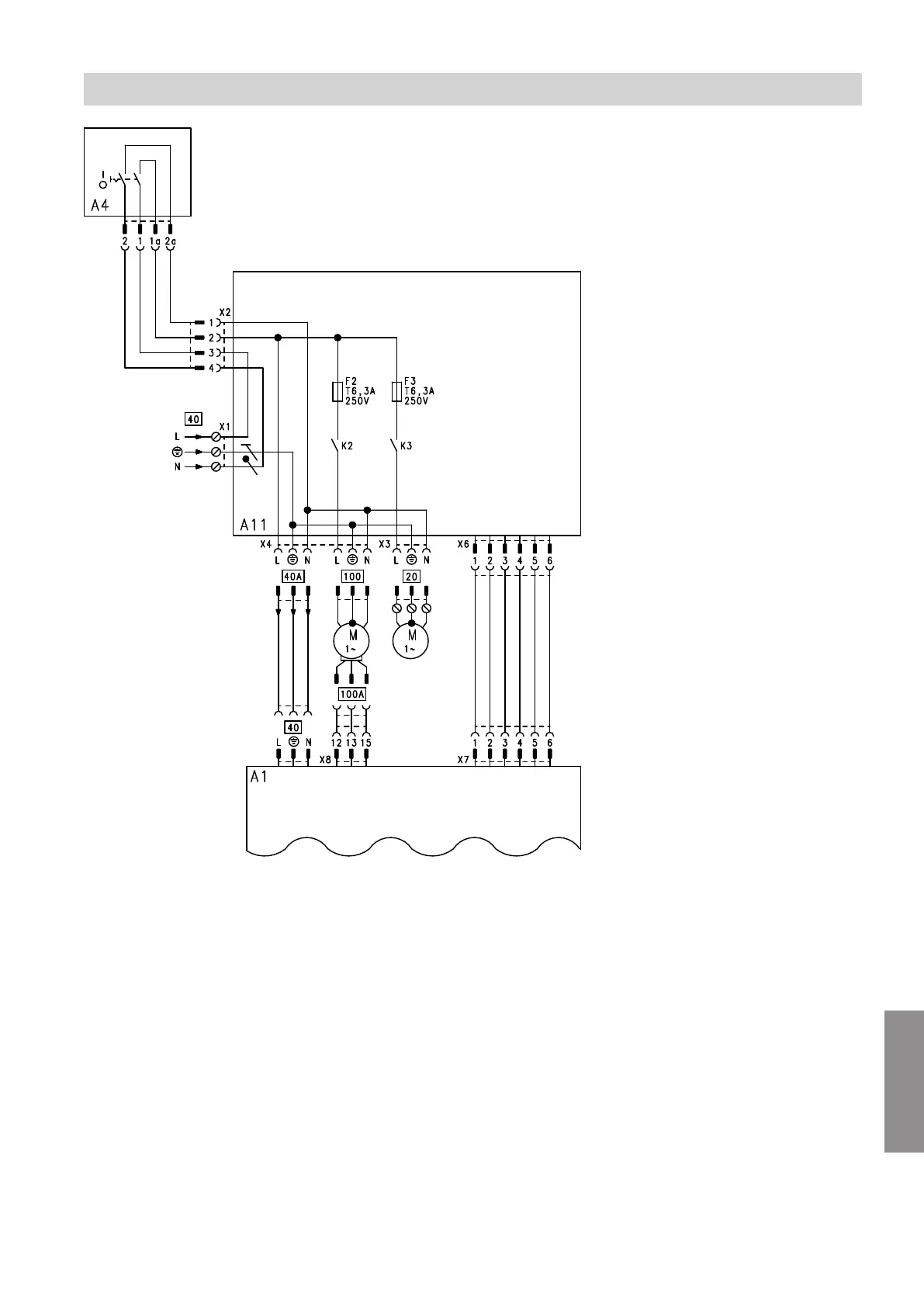

Fig. 59

A1 Main PCB

A11 Output extension SA 169

A4 ON/OFF switch

sÖ

Boiler circuit pump or butterfly valve with return

spring

fÖ

Power supply

a¢Ö

Fan motor

Connection and wiring diagram

Connection and wiring diagram (cont.)

5839829

Appendix
