Viessmann PYROMAT ECO - Page 32

TH
o
HV3/HR1
b
a
TR
HR4/E
k
l
g
f
e
d
HV1/EL
HV2
TR1
HV3/HR1
c
HR3
TR4
TR2
b
n
m
TR3/HR2
h
TH
TH

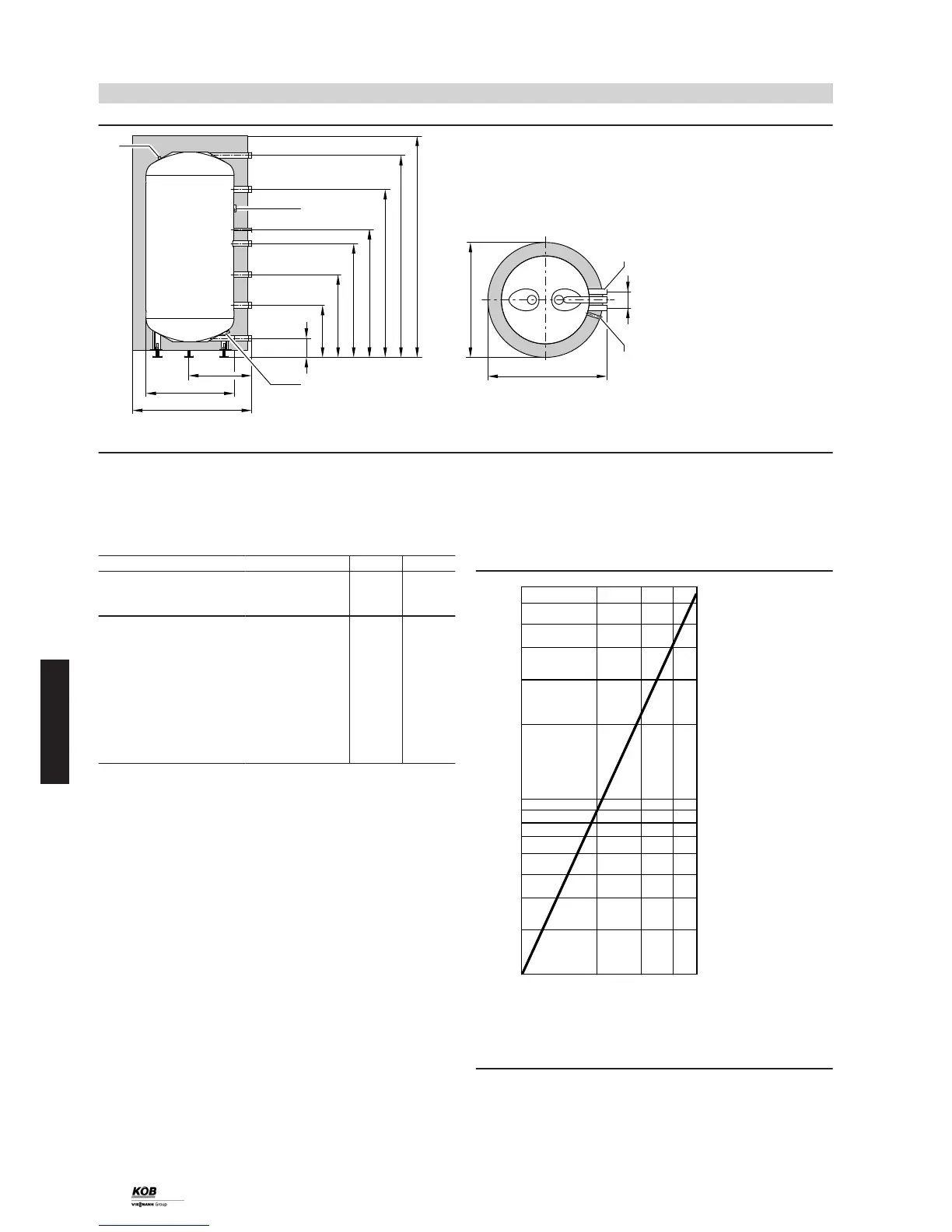

Vitocell 100-E (type SVPA, 750 and 950 litres)
E Drain
EL Air vent valve
HR Heating water return
HV Heating water flow
TH Retainers for thermometer sensor or additional sensor
TR Sensor well for cylinder temperature sensor or control thermo-
stat
Dimensions Vitocell 100-E
Cylinder capacity l 750 950
Length (7) a mm 1004 1004
Width b mm 1059 1059
Height c mm 1895 2195
d mm 1777 2083
e mm 1547 1853
f mm 1067 1219
g mm 967 1119
h mm 676 752
k mm 386 386
l mm 155 155
m mm 535 535
7 excl. thermal insulation n mm 7 790 7 790
o mm 140 140
Pressure drop on the heating water side
Throughput in l/h
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
7
6
5
4
3
2
1000 2000 3000 4000 5000
Pressure drop in mbar
Vitocell 100-E
Heating water buffer cylinder
(cont.)
32
PYROMAT ECO
5
5822 546 GB
