Viessmann PYROMAT ECO - Page 35

TH
k
l
h
g
f
e
d
m
HV1/EL
HV3/HR1
HR4/E
HVs/HRs/ELs
ELH
TR2/TH
c
o
b
HV2/TR1
HR2/TR3/TH
HR3/TR4
HV
p
ELH
a
HRs
TR1-4
HVs/ELs
o
b
n
HR
TH
TH

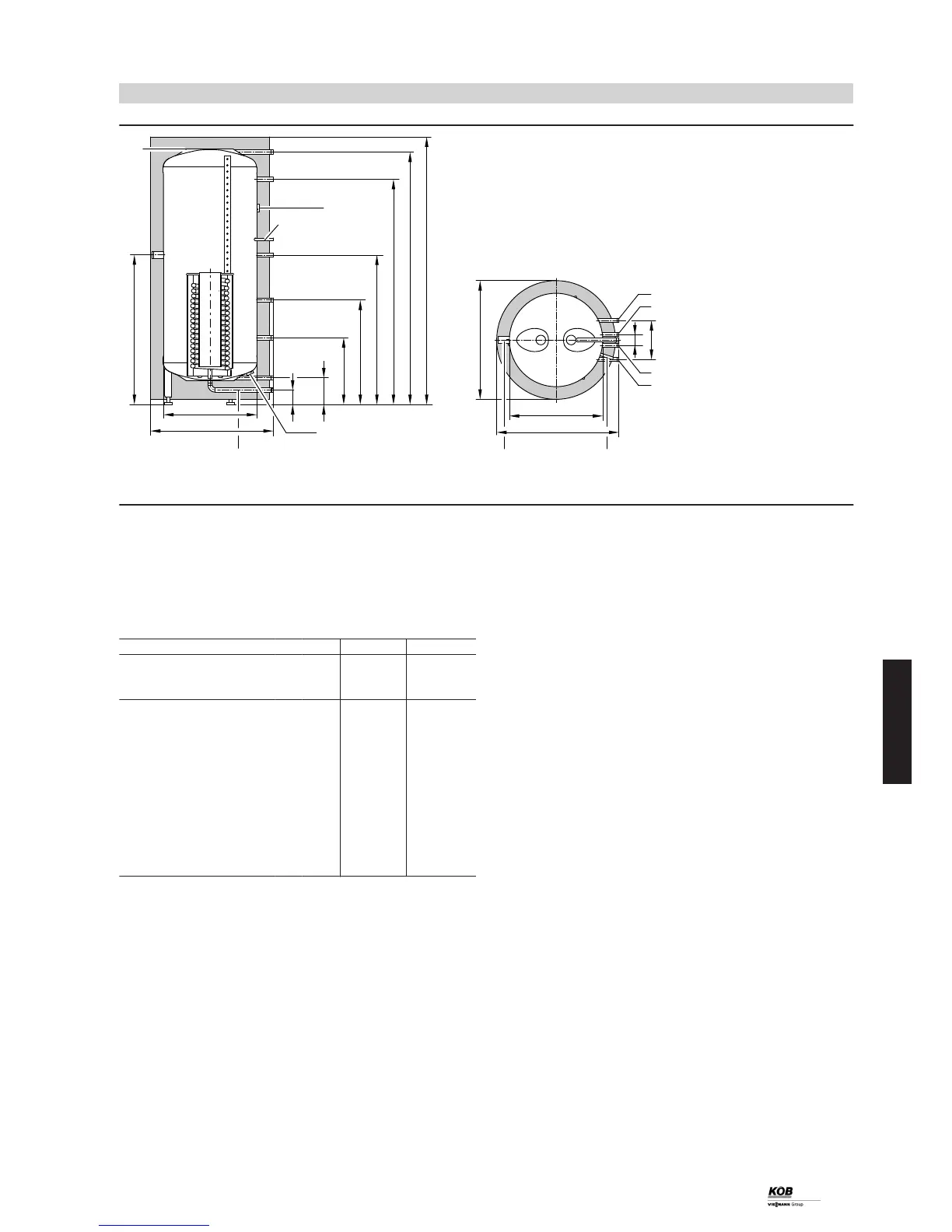

Vitocell 160-E (type SESA, 750 and 950 litres)
E Drain
EL Air vent valve
EL
s
Solar indirect coil, air vent valve
ELH Immersion heater
(female connection Rp 1½)
HR Heating water return
HR
s
Heating water return, solar thermal system
HV Heating water flow
HV
s
Heating water flow, solar thermal system
TH Retainer for thermometer sensor or additional sensor
TR Temperature sensor or temperature controller
Dimensions Vitocell 160-E
Cylinder capacity l 750 950
Length (7) a mm 1004 1004
Width b mm 1059 1059
Height c mm 1895 2195
d mm 1777 2083
e mm 1547 1853
f mm 967 1119
g mm 676 752
h mm 386 386
k mm 155 155
l mm 75 75
m mm 991 1181
n mm 370 370
Length (7) excl. thermal in-
sulation
o mm 790 790
p mm 140 140
Heating water buffer cylinder
(cont.)
PYROMAT ECO
35
5822 546 GB
5
